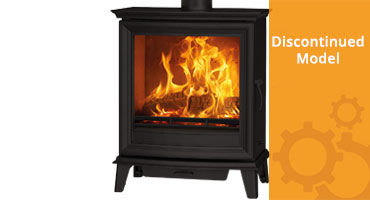

Chesterfield 5 Wide Wood Burning Stove
705-346

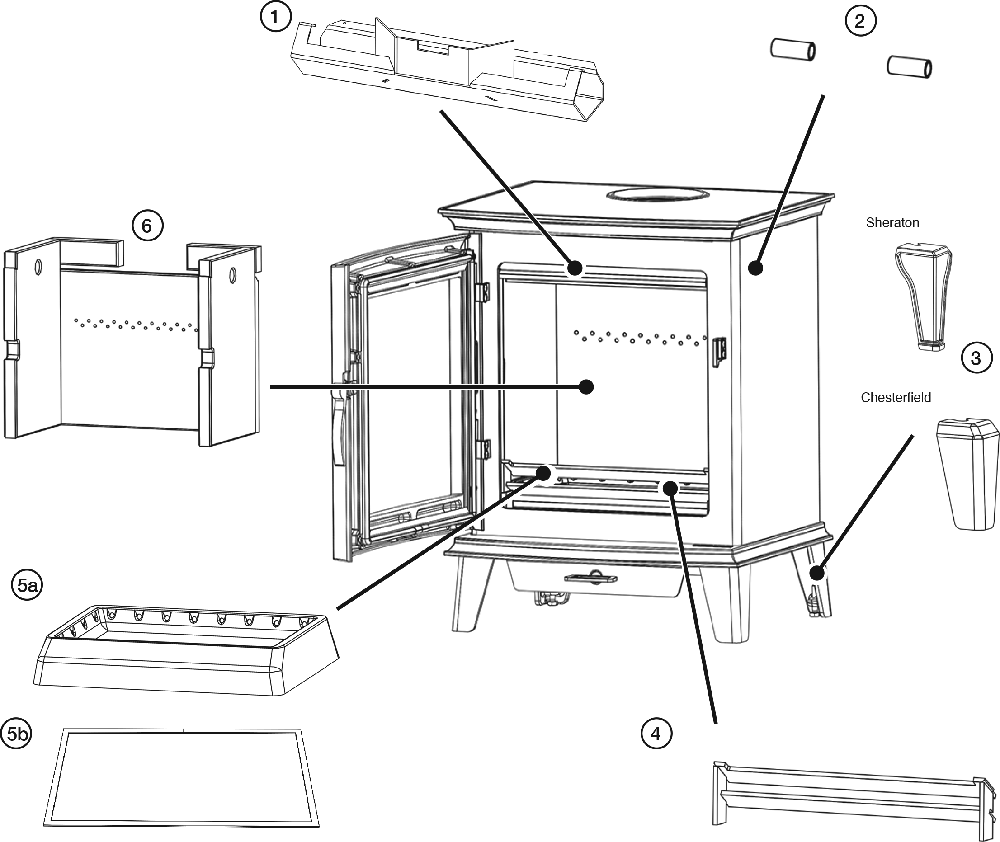

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC11877 |
|
Chesterfield 5 Wide Baffle Plate |
In Stock
£155.00 |
||
| 2 | ME601731 |
|
Sheraton/Chesterfield/Vision/Vogue Eco Baffle Extension Tube |
In Stock
£14.40 |
||
| 3 | CA7925 |
|
Chesterfield 5 Short Leg |
In Stock
£24.76 |
||
| 4 | MEC11501 |
|
Sheraton/Chesterfield 5 Wide Eco Log Guard |
In Stock
£254.00 |
||
| 5a | CA7833 |
|
Vision/Vogue Slimline/Sheraton/Chsterfield 5 Wide Eco WB Cast Base
This part will soon be obsolete |
In Stock
£189.00 |
||
| 5b | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Cast Base Seal
|
In Stock
£16.85 |
||
| 6 | N/A Brick Assembly |
|
Brick Assembly See 'Brick Assembly' Tab for Individual Bricks.
| N/A | ||
Drawing: PR11167
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

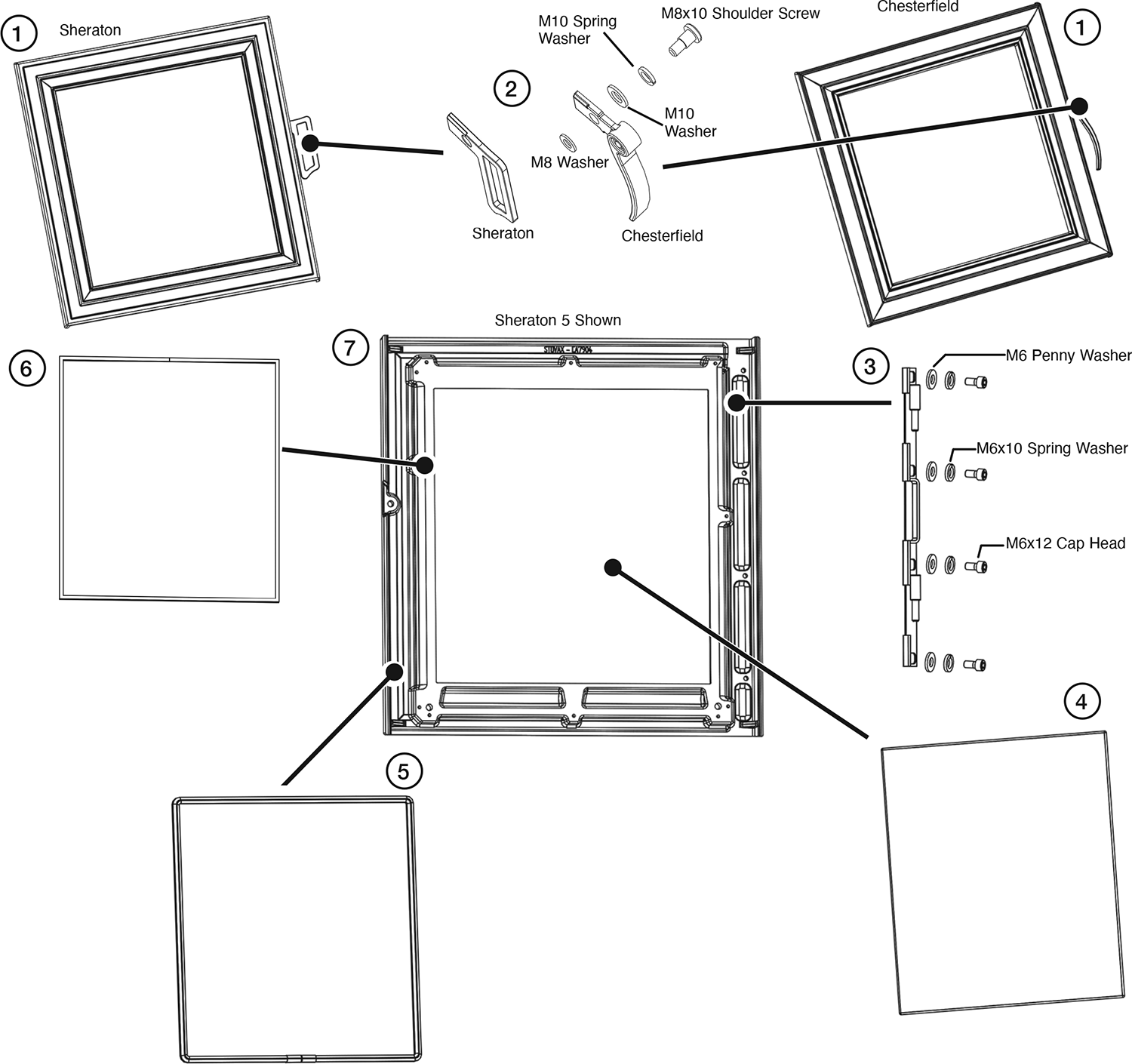

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC11709 |
|
Chesterfield 5 Wide WB Door Assembly |
In Stock
£199.00 |
||
| 2 | CA7930 |
|
Chesterfield 5 Door Handle |
In Stock
£66.50 |
||
| 3 | MEC10736 |
|
Sheraton/Chesterfield 5/Vision/Vogue Eco Hinge Plate |
In Stock
£57.00 |
||
| 4 | CE8233 |
|
Vogue Medium WB/Sheraton/Chesterfield 5 Wide Eco Door Glass |
In Stock
£185.00 |
||
| 5 | 4999 |
|
14mm Black Door Rope Seal with Adhesive - 2.6m Pack |
In Stock
£32.00 |
||
| 6 | 4950 | |
15 x 2mm Self Adhesive Tape Seal - 2m Pack |
In Stock
£16.85 |
||
| 7 | CA7934 |
|
Chesterfield 5 Wide Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR11167
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CE8313 |
|
Chesterfield 5/Sheraton 5 Wide/Vision/Vogue Medium Eco WB Side Firebrick |
In Stock
£25.75 |
||
| 2 | CE8315 |
|
Sheraton/Chesterfield 5/Vision/Vogue Medium Slimline Eco Upper Rear Brick |
In Stock
£30.50 |
||
| 3 | CE8314 |
|
Chesterfield/Sheraton 5 Wide/Vision/Vogue Medium Eco WB Lower Rear Firebrick |
In Stock
£26.50 |
||
| 4 | 4947 |  |
8mm White Rope Seal with Adhesive - 2m Pack Rear Firebrick Seal
|
In Stock
£18.70 |
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
705-346
DIMENSIONS:
581 x 702 x 357mm (w x h x d)
PDF Documents:
