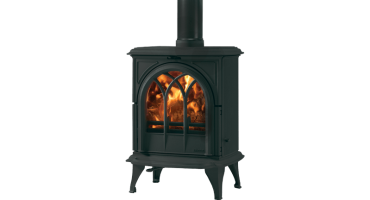

Mk2 Huntingdon 28 Multi Fuel Stove – Launched 2004 – from Serial Number 27621 onwards
7065 7065BL 7065IV 7065LG 7064

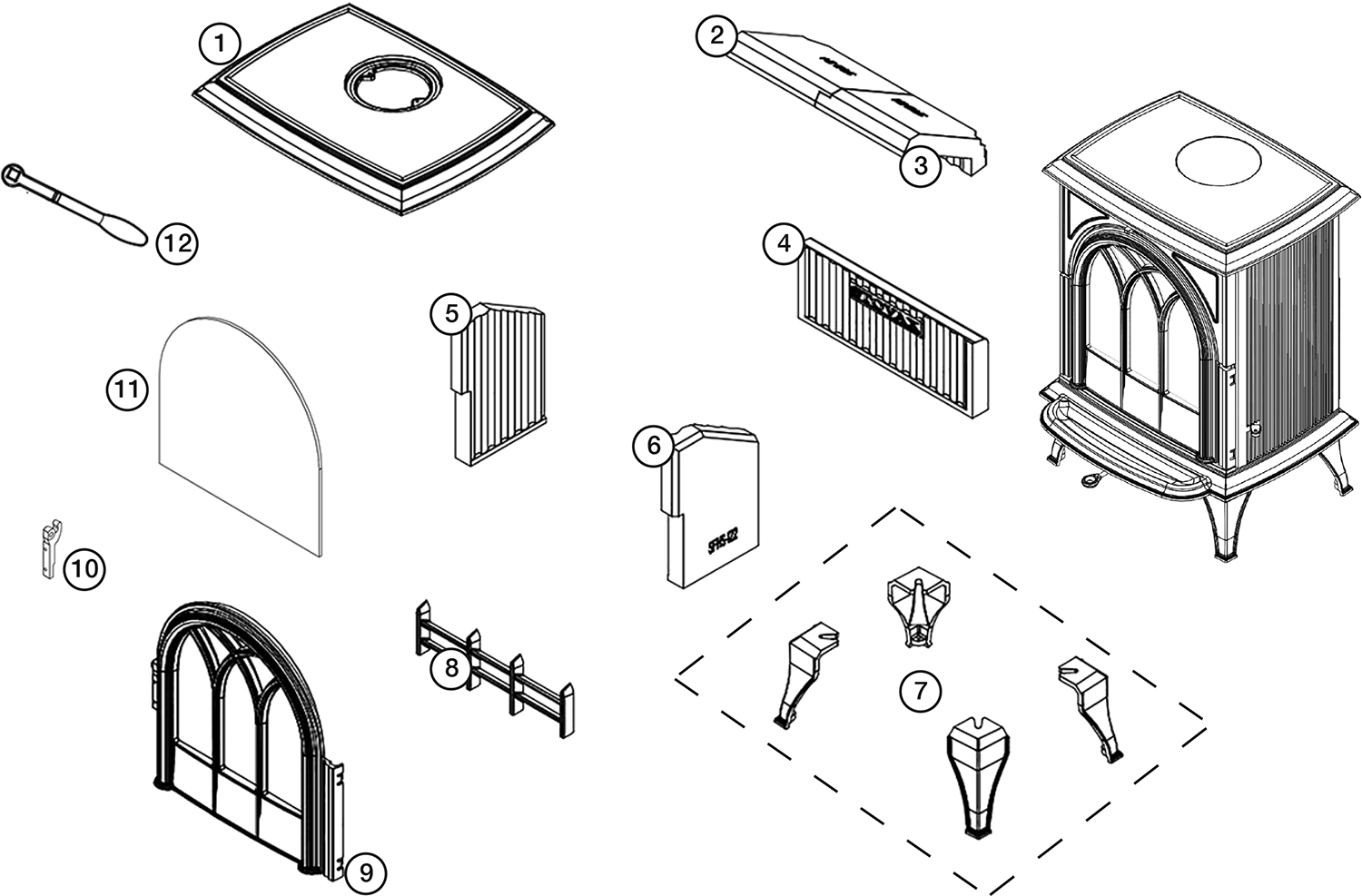

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | HUM28.9 |
|
Huntingdon 28 Top Plate - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | HUM28.7 |
|
Huntingdon 28 Left Hand Baffle Brick | In Stock £35.26 | ||
| 3 | HUM28.6 |
|
Huntingdon 28 Right Hand Baffle Brick | In Stock £34.00 | ||
| 4 | HUM28.3 |
|
Huntingdon 28 Rear Firebrick Dimensions: 402 x 149 x 35mm (w x h x d)
| In Stock £49.50 | ||
| 5 | HUM28.4 |
|
Huntingdon 28 Left Hand Side Firebrick Dimensions: 191 x 288 x 35mm (w x h x d)
| In Stock £31.75 | ||
| 6 | HUM28.5 |
|
Huntingdon 28 Right Hand Side Firebrick Dimensions: 191 x 288 x 35mm (w x h x d)
| In Stock £32.50 | ||
| 7 | 7090 |  |
Huntingdon 160mm Short Leg - Matt Black
This part will soon be obsolete |
In Stock £54.76 | ||
| 7 | HUM1 |  |
Huntingdon 219mm Long Leg - Matt Black
This part will soon be obsolete |
In Stock £68.26 | ||
| 8 | HUM28.28 |  |
Huntingdon 28 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | HUM28.8A |
|
Huntingdon 28 Door Complete Assembly - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | HUM24A |  |
Huntingdon Door Handle Latch | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | GL0103 |
|
Huntingdon 28 Door Glass Dimensions: 320 x 310mm (w x h)
| Available to Order £57.25 | ||
| 12 | HUM27A |  |
Huntingdon Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| HUM42 |  |
Huntingdon Glass Clip | In Stock £1.55 | |||
| HUM35 |  |
Huntingdon Door Hinge Pin | In Stock £12.76 | |||
| HUM63 |  |
Huntingdon Internal Door Catch Block | This part is now obsolete and can no longer be ordered as a spare. | |||
| SH51 |
|
Sheraton/Huntingdon Glass Clip Screw - Single Screw | This part is now obsolete and can no longer be ordered as a spare. | |||
| PAINTBL |
|
Midnight Blue Enamel Touch Up Paint 15ml | This part is now obsolete and can no longer be ordered as a spare. | |||
| PAINTLG |
|
Laurel Green Enamel Touch Up Paint 15ml
This part will soon be obsolete |
In Stock £26.60 | |||
| 4948 |
|
10mm White Rope Seal with Adhesive - 2m Pack Door Rope Seal
| In Stock £20.75 | |||
| 4945 |
|
4mm White Rope Seal with Adhesive - 2m Pack Glass Rope Seal
| In Stock £16.75 | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7065 7065BL 7065IV 7065LG 7064
DIMENSIONS:
510 x 700 x 485mm (w x h x d)
PDF Documents:
