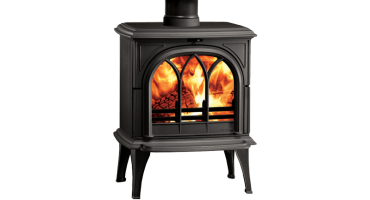

Mk2 Huntingdon 35 Stove – Launched 2004 – from Serial Number 27647 onwards
7061 7061BL 7061LG 7061PI 7060 7063

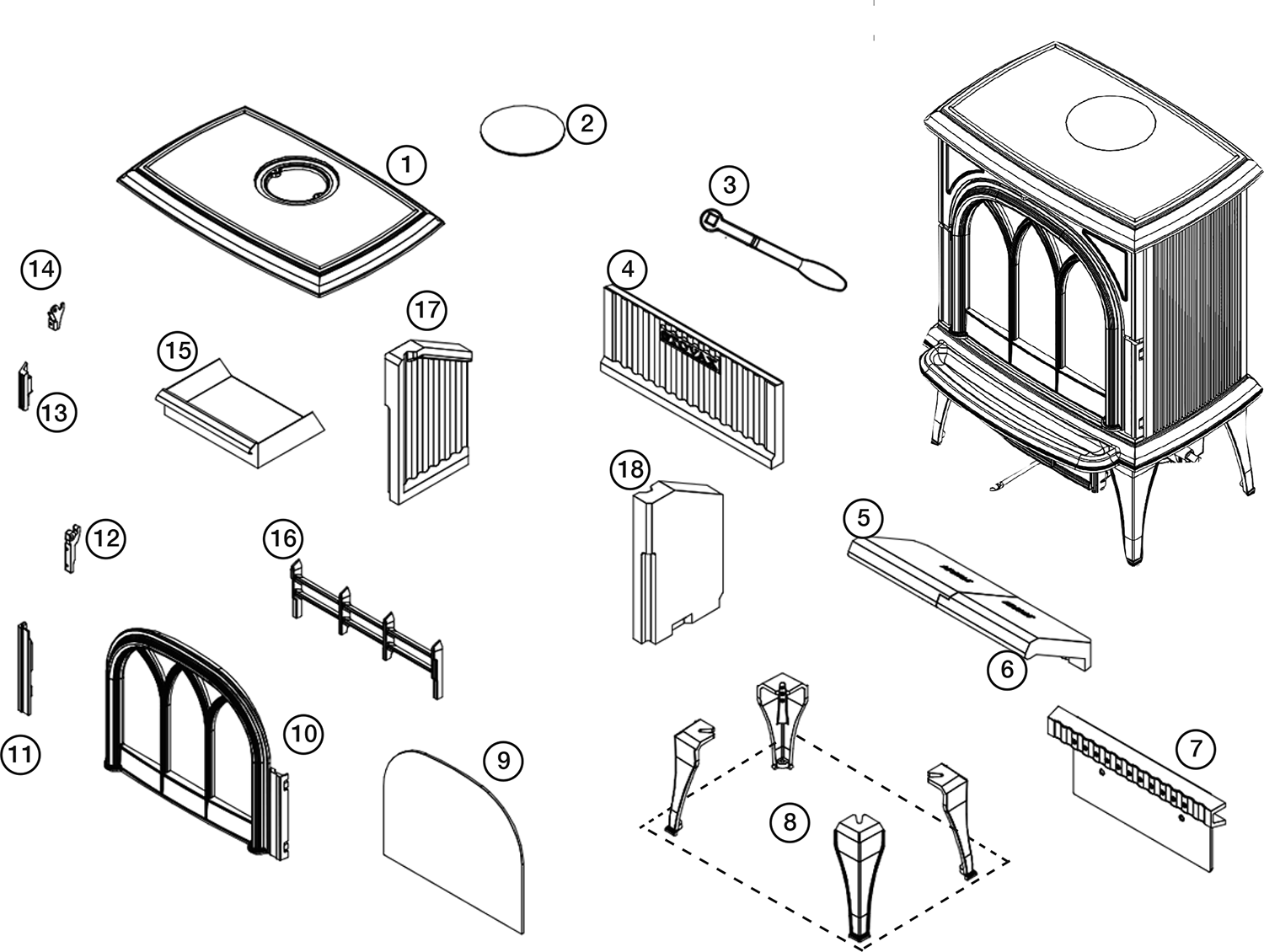

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | HUM35.9 | Huntingdon 35 Top Plate - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 2 | HUM18 | Huntingdon 30/35/40 Blanking Plate - Matt Black
This part will soon be obsolete |
In Stock £71.50 | |||||
| 3 | HUM27A |  |
Huntingdon Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 4 | HUM35.3 | Huntingdon 35 Rear Firebrick Dimensions: 480 x 195 x 45mm (w x h x d)
| Available to Order £81.86 | |||||
| 5 | HUM35.7 | Huntingdon 35 Left Hand Baffle Brick | In Stock £64.93 | |||||
| 6 | HUM35.6 | Huntingdon 35 Right Hand Baffle Brick | In Stock £64.93 | |||||
| 7 | H35.60M2 | Huntingdon 35 Mk2 Rear Cleanburn Casting | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 8 | 7090 |  |
Huntingdon 160mm Short Leg - Matt Black
This part will soon be obsolete |
In Stock £54.76 | ||||
| 8 | HUM1 |  |
Huntingdon 219mm Long Leg - Matt Black
This part will soon be obsolete |
In Stock £68.26 | ||||
| 9 | GL0105 | Huntingdon 35 Door Glass Dimensions: 390 x 305mm (w x h)
| Available to Order £160.94 | |||||
| 10 | HUM35.8A | Huntingdon 35 Mk2 Complete Gothic Door Assembly - Matt Black
This part will soon be obsolete |
In Stock £769.00 | |||||
| 10 | H35.22 | Huntingdon 35 Complete Clear Door Assembly - Matt Black
This part will soon be obsolete |
In Stock £769.00 | |||||
| 11 | HUM35.26A | Huntingdon 35 Mk2 Door Handle - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 12 | HUM24A |  |
Huntingdon Door Handle Latch | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 13 | HUM53 | Huntingdon 30/35/40 Ashpan Door Handle - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 14 | HUM25 | Huntingdon 30/35/40 Ashpan Door Catch | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 15 | HUM35.36 | Huntingdon 35/40 Ashpan
This part will soon be obsolete |
In Stock £71.26 | |||||
| 16 | HUM35.28 | Huntingdon 35 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 17 | HUM35.4 | Huntingdon 35 Left Hand Side Firebrick Dimensions: 206 x 348 x 45mm (w x h x d)
| In Stock £50.23 | |||||
| 18 | HUM35.5 | Huntingdon 35 Right Hand Side Firebrick Dimensions: 206 x 348 x 45mm (w x h x d)
| In Stock £54.38 | |||||
| HUM63 |  |
Huntingdon Internal Door Catch Block | This part is now obsolete and can no longer be ordered as a spare. | |||||
| HUM35 |  |
Huntingdon Door Hinge Pin | In Stock £12.76 | |||||
| HUM42 |  |
Huntingdon Glass Clip | In Stock £1.72 | |||||
| SH51 | Sheraton/Huntingdon Glass Clip Screw - Single Screw | This part is now obsolete and can no longer be ordered as a spare. | ||||||
| PAINTBL | Midnight Blue Enamel Touch Up Paint 15ml | This part is now obsolete and can no longer be ordered as a spare. | ||||||
| PAINTLG | Laurel Green Enamel Touch Up Paint 15ml | This part is now obsolete and can no longer be ordered as a spare. | ||||||
| 4948 | 10mm White Rope Seal with Adhesive - 2m Pack Door Rope Seal
| In Stock £22.50 | ||||||
| 4945 | 4mm White Rope Seal with Adhesive - 2m Pack Glass Rope Seal
| In Stock £18.10 | ||||||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7061 7061BL 7061LG 7061PI 7060 7063
DIMENSIONS:
570 x 730 x 485mm (w x h x d)
