Mk2 Stockton 8 High Output Boiler Stove
ST8HBMF2
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | CA7686 |
|
Stockton 7/8/11/14/CL8 Mk2 6" Blanking Plate | Available to Order £29.00 | ||
| 3 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RA502640 |
|
Devon 50HB Mk2 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | STATST |
|
Stockton 7 Inset/8/11/14HB/County 60HB/Devon 50HB Mk2 Thermostat Kit
This part will soon be obsolete |
In Stock £399.00 | ||
| 7 | MEC9729 |
|
Stockton 8 HB Boiler Mk2 MF Riddling Grate Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | MEC9068 |
|
Stockton 8 Mk2 Complete Double Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | SM10 |
|
Stockton Hinge Block | Available to Order £17.20 | ||
| 10 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | Available to Order £10.70 | ||
| 11 | MEC9519 |
|
Stockton 8 Mk2 Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | M0680CBLT |
|
M6 x 80mm Coach Bolt - Single Bolt | Available to Order £1.75 | ||
| 13 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1125mm length required
| Available to Order £15.00 | ||
| 14 | MEC9848 |
|
Stockton 8 HB Boiler Mk2 Airwash Control Chamber | Available to Order £60.76 | ||
| 15 | RA503293 |
|
Stockton 8 HB Boiler Mk2 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | MEC9661 |
|
Stockton 8HB/Devon 50HB Mk2 Lower Baffle Plate | In Stock £369.00 | ||
| 17 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 590+520mm length required
| Available to Order £15.00 | ||
| 18 | N/A |
|
See part 17
| This part is not currently available. | ||
| 19 | MEC9662 |
|
Stockton 8/11/14HB/County 60/80HB Mk2 Lower Baffle Cleaning Plate | In Stock £115.00 | ||
| 20 | CA7684 |
|
Stockton 5 Wide/8/11/14 Door Catch Block | In Stock £21.25 | ||
| 21 | MEC9846 |
|
Stockton 8HB/Devon 50HB Mk2 Upper Baffle Plate | In Stock £185.00 | ||
| 22 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 23 | QW649 |
|
Control Knob for Stockton Boiler Stove Thermostat | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR9694
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

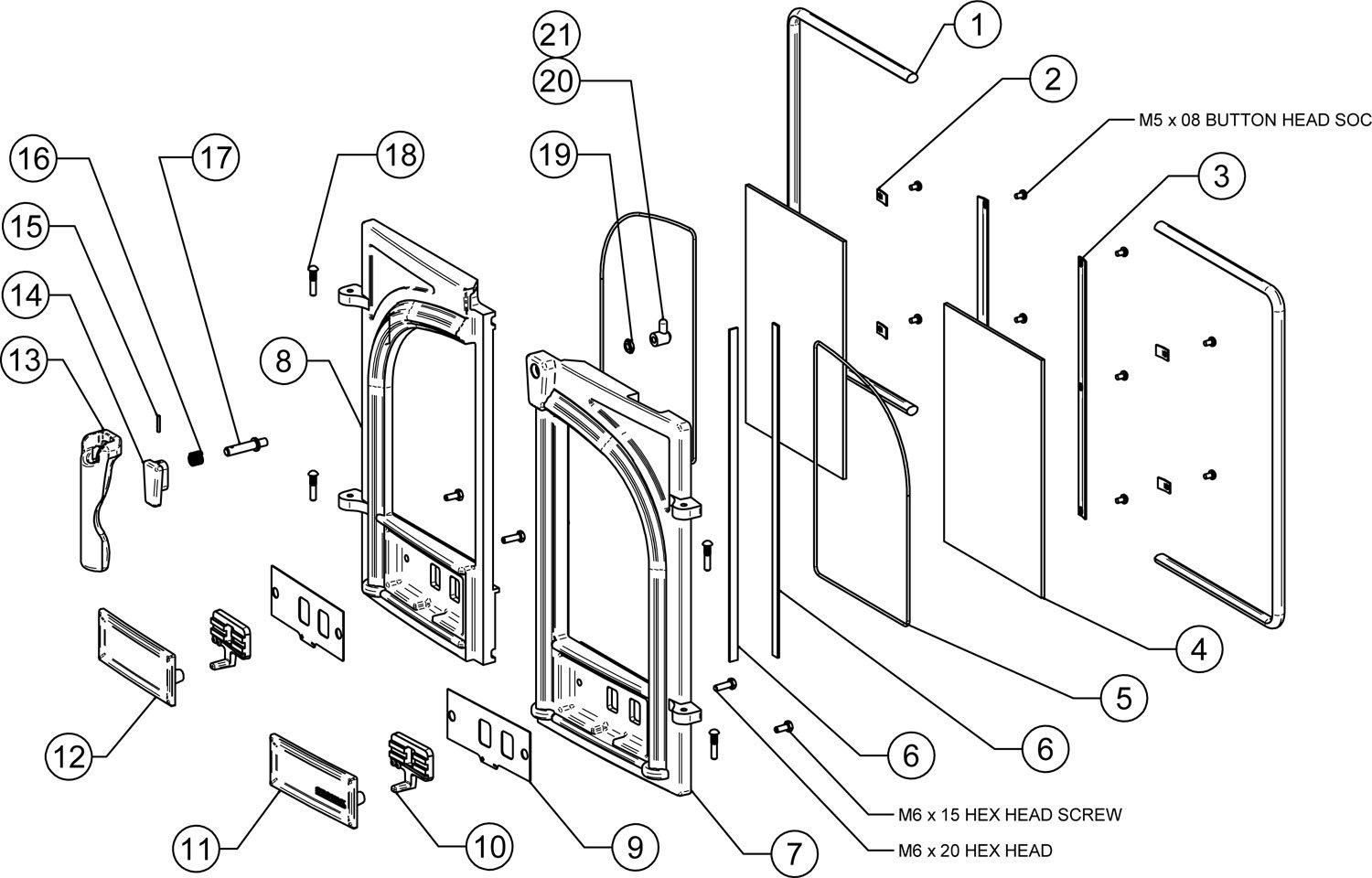

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack 2 x 830mm length required
| In Stock £54.76 | ||
| 2 | RA502594 |
|
Stockton Mk2 Glass Clip | In Stock £1.50 | ||
| 3 | RA502642 |
|
Stockton 8 Mk2/5 Wide Long Glass Clip | In Stock £41.75 | ||
| 4 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece | In Stock £40.25 | ||
| 5 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack 2 x 830mm length required
| In Stock £15.10 | ||
| 6 | 4951 |
|
10mm x 2mm Black Insulation Tape Seal - 2m Pack 2 x 385mm length required
| In Stock £18.00 | ||
| 7 | N/A |
|
For Complete Door Assembly see Main Assembly page
| This part is not currently available. | ||
| 8 | N/A |
|
For Complete Door Assembly see Main Assembly page
| This part is not currently available. | ||
| 9 | ME600678 |
|
Stockton 8 Mk2/5 Wide Primary Air Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | MEC9022 |
|
Stockton 5/6/7/8/11 Mk2 Primary Air Slider
This part will soon be obsolete |
In Stock £11.20 | ||
| 11 | SM2.3RH |
|
Stockton 5 Wide/8 Right Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | SM2.3 |
|
Stockton 8/5 Wide Left Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 14 | SM2.7 |  |
Stockton 5 Wide/8/11/14 Door Knob | In Stock £14.70 | ||
| 15 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 16 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 17 | ME600647 |
|
Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | Available to Order £18.85 | ||
| 18 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 19 | RVAC111 |  |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | MEC9081 |
|
Stockton 5 Wide/8/11/14 Double Door Catch | This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | MEC9288 |
|
Stockton 5 Wide/8/11/14 Mk2 Double Door Spindle and Catch Assembly Assembly including parts 17, 19 and 20
| Available to Order £34.25 | ||
Drawing: PR9307-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

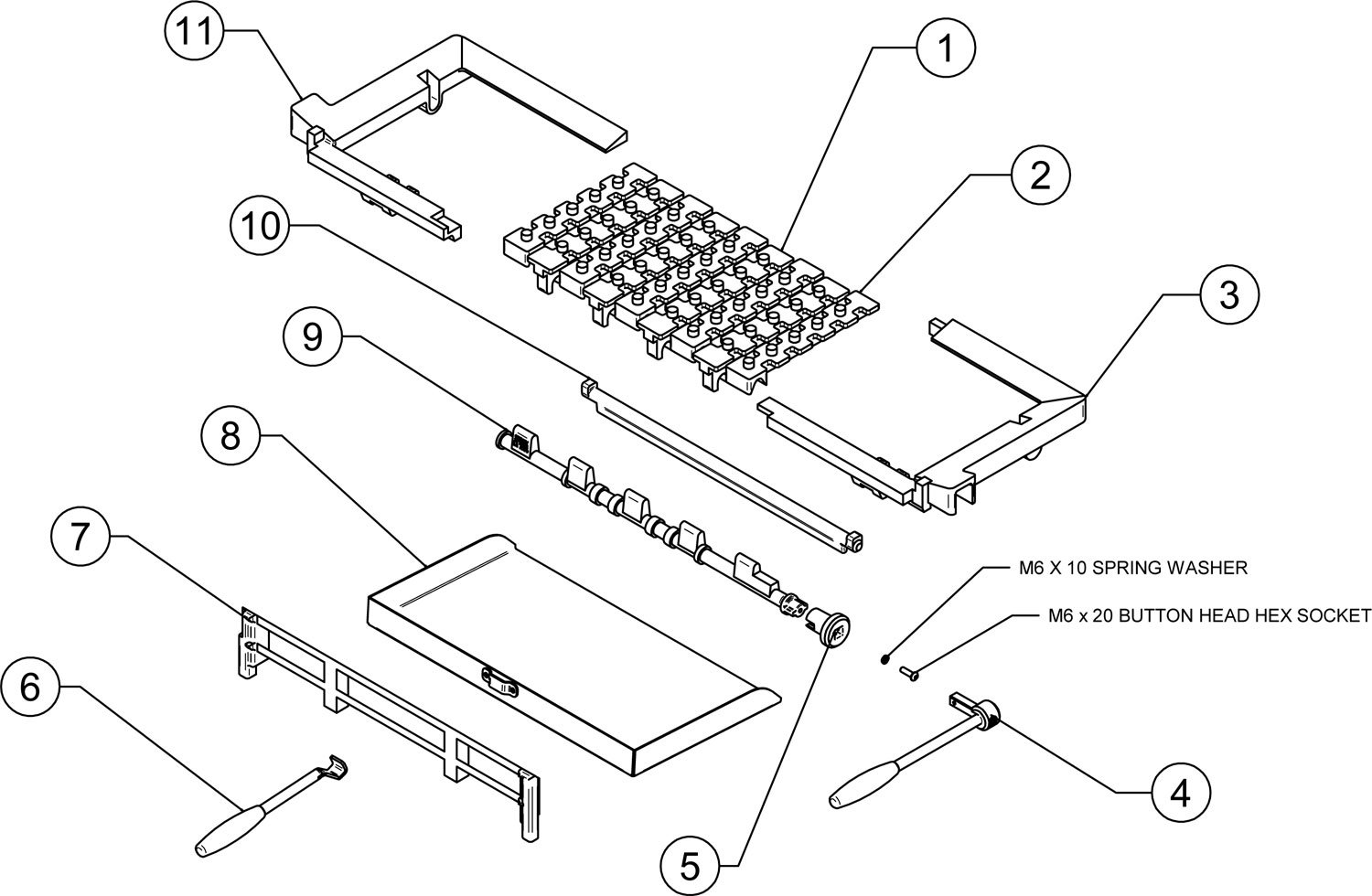

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | ST8-CA7479 |
|
Stockton 8/Devon 50HB CE Boiler Grate Bar - Fixed | In Stock £17.90 | ||
| 2 | ST8-CA7480 |
|
Stockton 8/Devon 50HB CE Boiler Grate Bar - Moving | In Stock £17.90 | ||
| 3 | ST8-CA7464 |
|
Stockton/View 8 HB Boiler MF Right Hand Infill
This part will soon be obsolete |
In Stock £80.26 | ||
| 4 | ST8-MEC8158 |  |
Stockton/County/Devon HB Boiler Riddling Tool
This part will soon be obsolete |
In Stock £139.00 | ||
| 5 | MEC11721 |  |
Riva Plus Riddling Socket and Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | ST8-MEC8159 |
|
Stockton HB/County 60/80HB/Devon 50HB Ashpan Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | CA7682 |
|
Stockton/View 8/5/CL8 Log Guard | Available to Order £36.25 | ||
| 8 | MEC9712 |
|
Stockton/View 8 HB Boiler Mk2 Ashpan | In Stock £165.00 | ||
| 9 | ST8-CA7584 |
|
Stockton 8/Devon 50HB CE Boiler Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | ST8-CA7500 |
|
Stockton 8/Devon 50HB CE Back Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | ST8-CA7463 |
|
Stockton/View 8 HB Boiler MF Left Hand Infill | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR9700-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 8HBWT |
|
Stockton 8 HB Boiler Mk2 Woodburning Tray To achieve the highest efficiency when burning wood only.
| This part is now obsolete and can no longer be ordered as a spare. | |||
Drawing: PR9698
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST8HBMF2
DIMENSIONS:
603 x 620 x 414mm (w x h x d)
