Mk1 View 8 Inset High Output Boiler
VW-8HB
Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | CA7669 | View 8/CL8 Mk1 6" Flue Adapter
This part will soon be obsolete |
In Stock £42.00 | |||
2 | SM13 | Stockton 7/8/11/14 HB/View 8/CL8 Mk1 6in Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
3 | ME501805 | Stockton 8/County/Devon HB/CL7 Inset Boiler Mk1 Thermostat Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
4 | ME501806 | Stockton/County/Devon HB/CL7 Inset Boiler Mk1 Thermostat Blanking Bar | This part is now obsolete and can no longer be ordered as a spare. | |||
5 | MEC9144 | View 8 Mk1 Plinth | This part is now obsolete and can no longer be ordered as a spare. | |||
6 | CA7682 | Stockton/View 8/5/CL8 Log Guard | Available to Order £36.25 | |||
7 | ST8-CA7480 | Stockton 8/Devon 50HB CE Boiler Grate Bar - Moving | Available to Order £17.90 | |||
8 | ST8-CA7479 | Stockton 8/Devon 50HB CE Boiler Grate Bar - Fixed | Available to Order £17.90 | |||
9 | ST8-CA7464 | Stockton/View 8 HB Boiler MF Right Hand Infill
This part will soon be obsolete |
In Stock £80.26 | |||
10 | ST8-CA7500 | Stockton 8/Devon 50HB CE Back Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | |||
11 | MEC8792 | Riddling Tool Assy | This part is now obsolete and can no longer be ordered as a spare. | |||
12 | RVN-CA7595 | Vision MF/CL7 Inset Boiler Riddling Socket | This part is now obsolete and can no longer be ordered as a spare. | |||
13 | ST8-CA7584 | Stockton 8/Devon 50HB CE Boiler Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | |||
14 | MEC8793 | Ashpan Tool | In Stock £78.00 | |||
15 | ST8-MEC8155 | Stockton 8 HB Boiler Mk1 Ashpan | This part is now obsolete and can no longer be ordered as a spare. | |||
16 | MEC8788 | Multifunction Tool | In Stock £50.26 | |||
17 | MEC8615 | View 8 Mk1 Complete Door Assembly
This part will soon be obsolete |
In Stock £1,435.00 | |||
18 | ST8-CA7463 | Stockton/View 8 HB Boiler MF Left Hand Infill | This part is now obsolete and can no longer be ordered as a spare. | |||
19 | SM19 | M6 x 70mm Coachbolt - Single Bolt | This part is now obsolete and can no longer be ordered as a spare. | |||
20 | MEC8747 | View/CL8 Boiler Airwash Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
21 | ME600599 | View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | In Stock £19.66 | |||
22 | ST8-MEC8802 | Stockton 8/Devon 50HB Boiler Mk1 Baffle Plate | In Stock £159.00 | |||
23 | N/A Carcass | Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. |

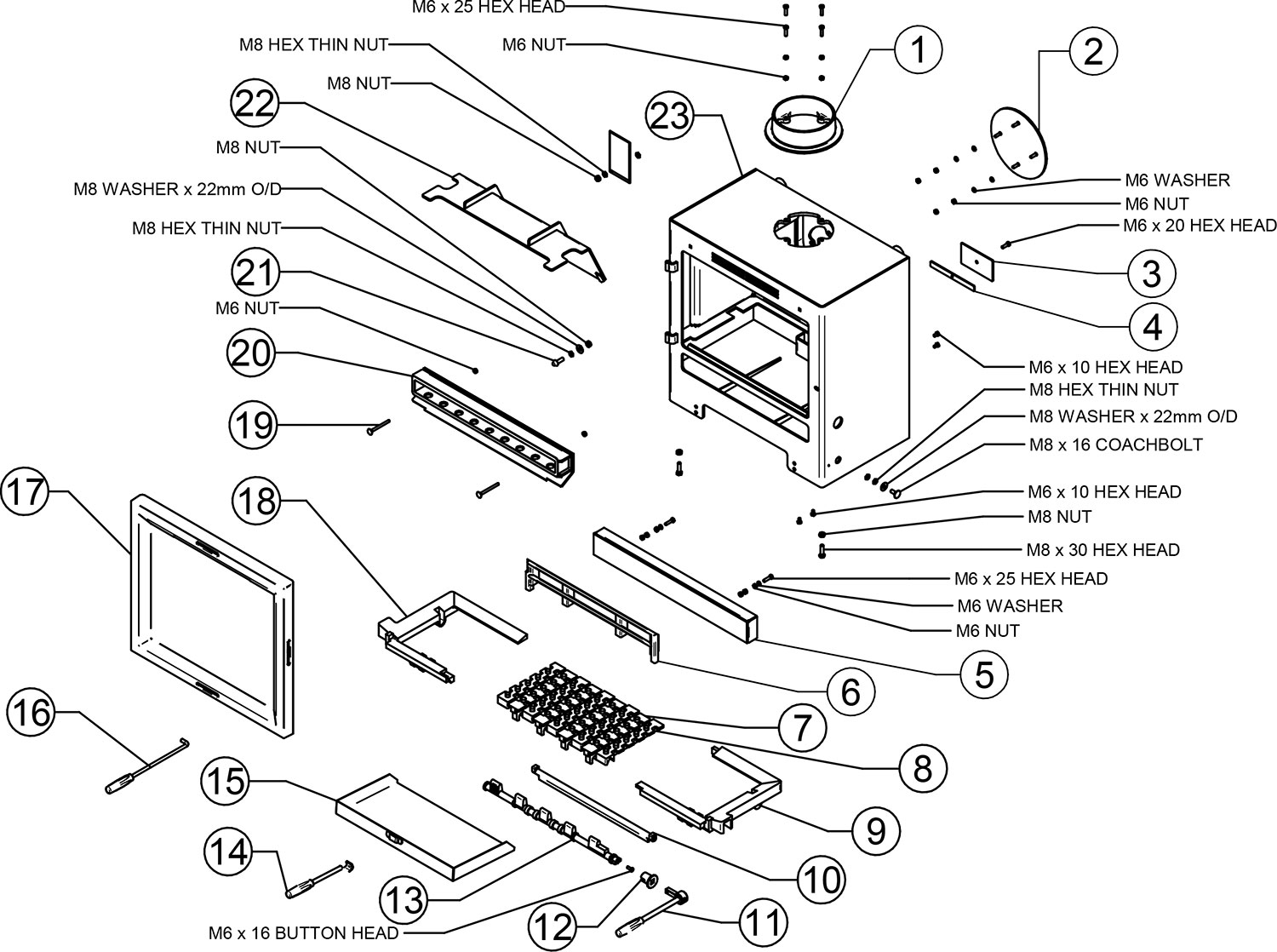

Drawing: PR8905-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | CA7613 | View 8 Outer Door Frame | This part is now obsolete and can no longer be ordered as a spare. | |||
2 | ME600422 | View Door Spring
This part will soon be obsolete |
In Stock £2.26 | |||
3 | MEC9553 | View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | |||
4 | CE7703 | View 8 Door Glass Dimensions: 468x380x4mm
| In Stock £249.00 | |||
5 | 4950 | 15 x 2mm Self Adhesive Tape Seal - 2m Pack 460mm length required.
| In Stock £15.80 | |||
6 | ME600525 | View 8 Mk1 Primary Air Slider Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
7 | CA7642 | View 8 Primary Air Slider
This part will soon be obsolete |
In Stock £76.00 | |||
8 | CA7636 | View 8 Glass Clamp Frame | This part is now obsolete and can no longer be ordered as a spare. | |||
9 | 4952 | 15 x 2mm Mid Door Rope Seal - 2m Pack 450mm length required.
| In Stock £16.36 | |||
10 | 5704 | 13mm Black Rope Seal with Adhesive - 3.5m Pack 410mm+2300mm length required.
| In Stock £67.50 | |||
11 | 4950 | 15 x 2mm Self Adhesive Tape Seal - 2m Pack 450mm+1220mm length required.
| In Stock £15.80 | |||
12 | CA7637 | View 8 Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | |||
13 | ME600443 | View 8 Mk1 Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
14 | FA9510 | CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | |||
15 | ME600563 | View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 | |||
16 | MEC8641 | View Mk1 Door Catch Slider | This part is now obsolete and can no longer be ordered as a spare. |

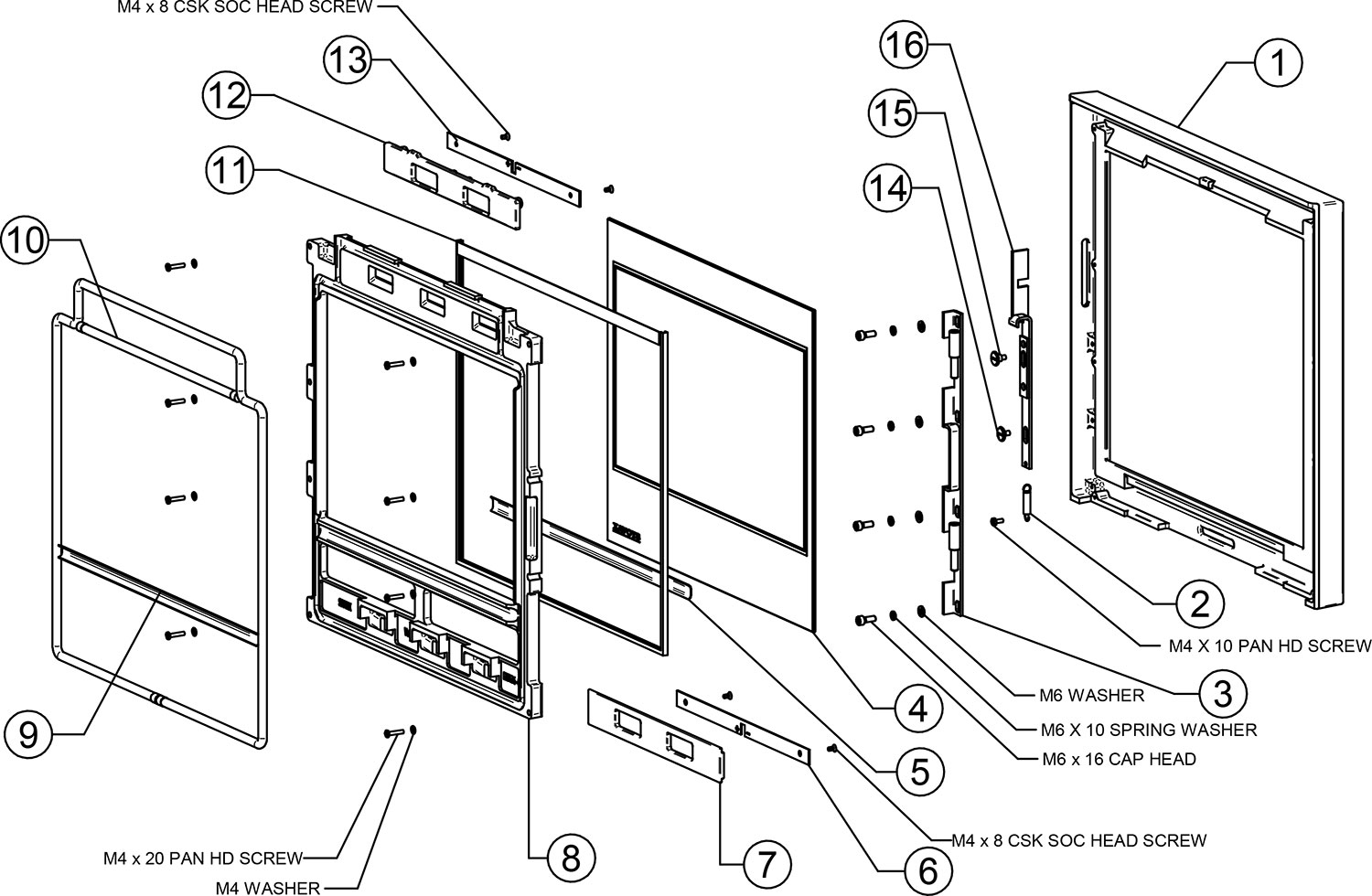

Drawing: PR8903-4
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
7113WT | Stockton 8 HB Boiler Mk1/Yeoman CL8 HB Boiler Woodburning Tray To achieve the highest efficiency when burning wood only.
| This part is now obsolete and can no longer be ordered as a spare. |
Drawing: PR9698
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VW-8HB
DIMENSIONS:
563 x 572 x 363mm (w x h x d)
