Riva Vision Medium Multi Fuel Stove
RVN-MEDM

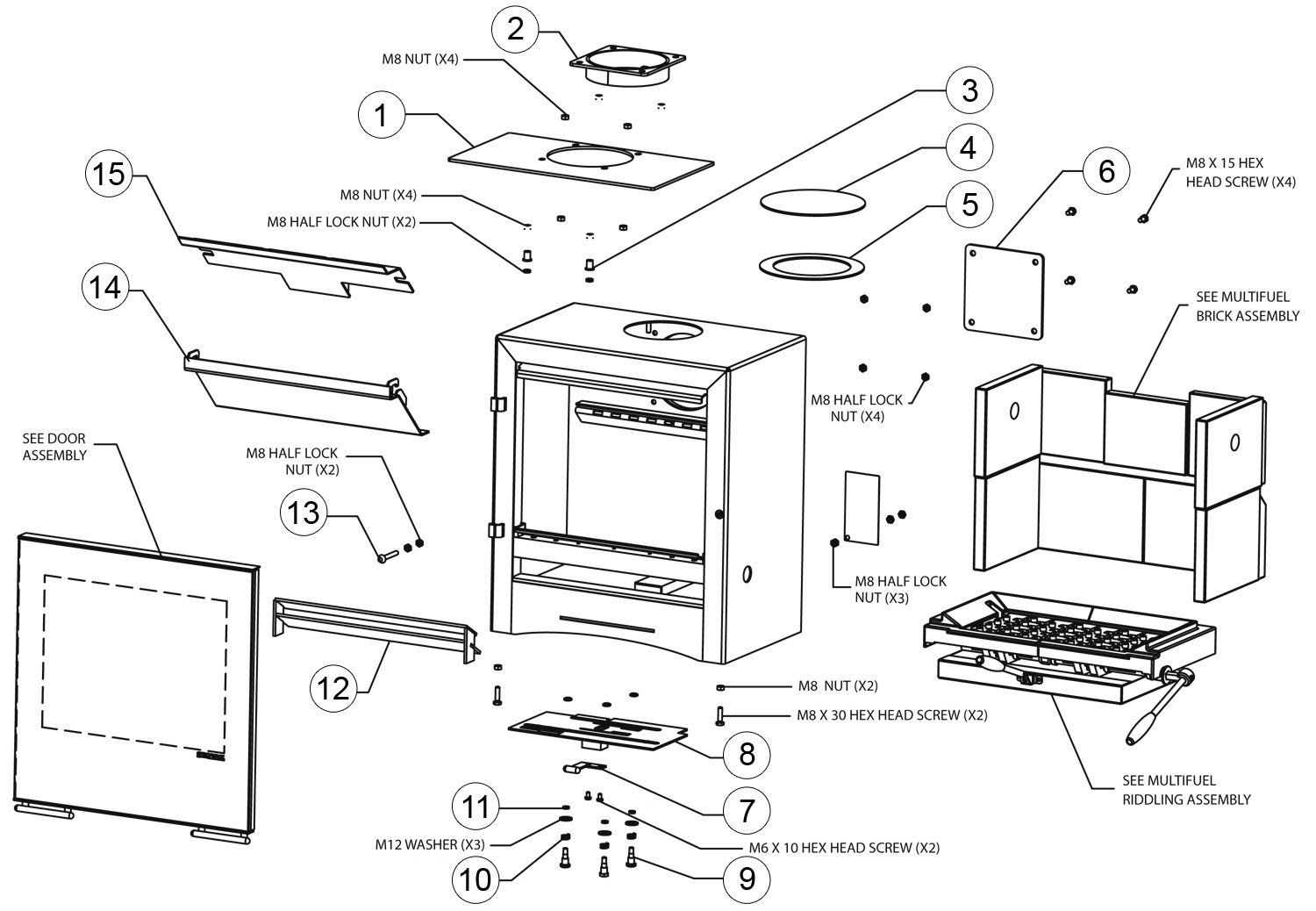

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-ME600123 |
|
Vision Medium Inner Top Plate | In Stock £98.38 | ||
| 2 | RVN-MEC8421 |
|
Vision Medium 6in Flue Collar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-ME600304 |
|
Baffle Support Spacer | In Stock £9.16 | ||
| 4 | RVN-MEC8450 |
|
Vision Medium 6in Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | RVN-ME600234 |
|
Vision Medium 6in Flue Ring Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-ME600227 |
|
Vision Medium 6in Flue Blank | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | RVN-MEC8272 |
|
Vision Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | RVN-MEC8356 |
|
Vision Medium MF Air Control Plate | In Stock £45.00 | ||
| 9 | RVN-ME600343 |  |
Vision M8 Should Screw | In Stock £69.25 | ||
| 10 | RVN-ME600059 |
|
Vision Air Control Slider Spring | In Stock £2.70 | ||
| 11 | RVN-ME600344 |
|
Vision Air Control Roller | Available to Order £63.50 | ||
| 12 | RVN-MEC8496 |
|
Vision Medium MF Log Guard
This part will soon be obsolete |
In Stock £149.00 | ||
| 13 | RVN-ME600187 |
|
Vision Medium Door Latch Bolt | In Stock £32.50 | ||
| 14 | RVN-MEC8508 |
|
Vision Medium Lower Baffle Plate | In Stock £153.00 | ||
| 15 | RVN-MEC8507 |
|
Vision Medium Upper Baffle Plate | In Stock £58.00 | ||
| MEC8945 |
|
Vision Medium Glass Replacement Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
Drawing: PR8584
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

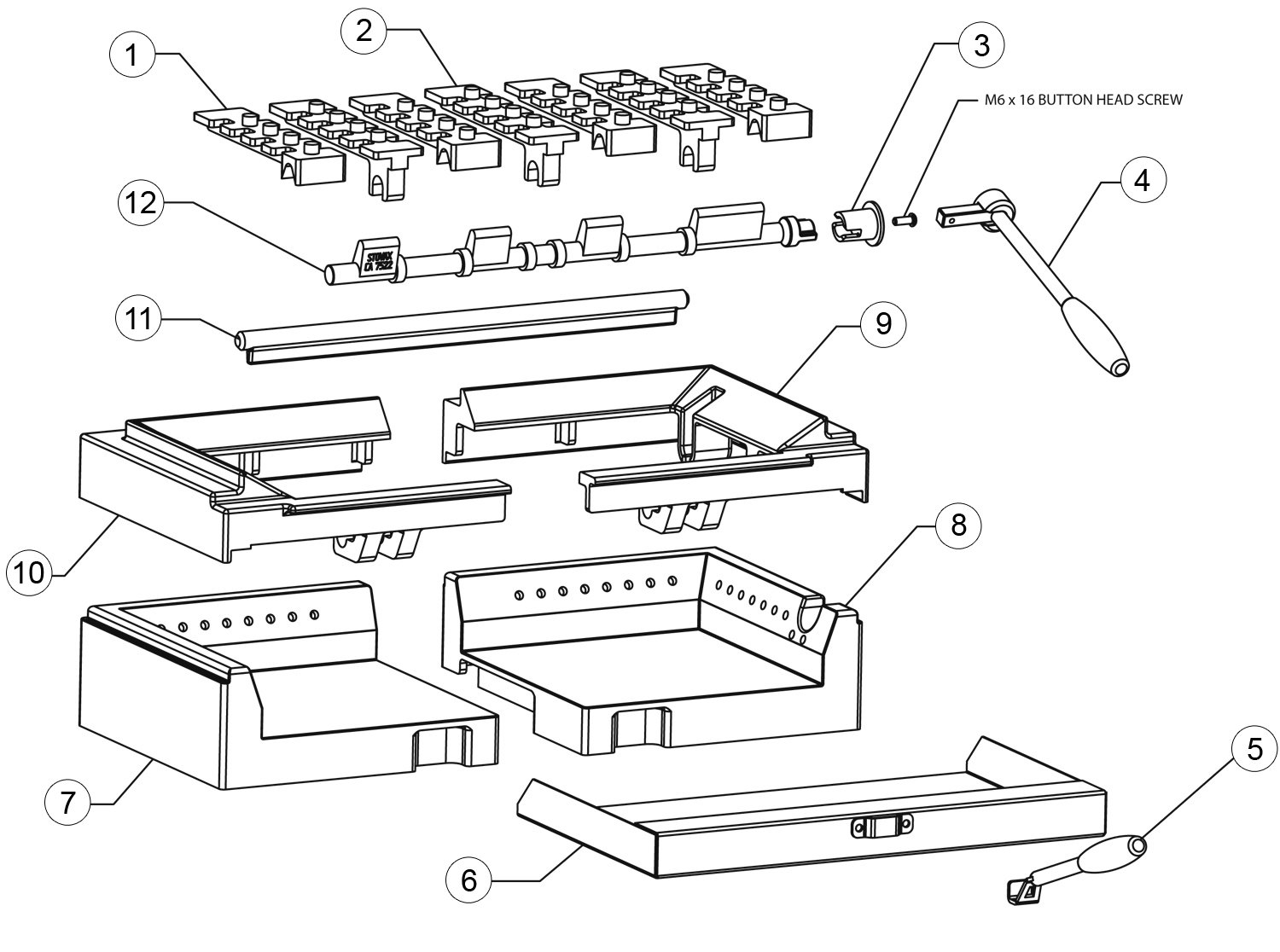

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVPX-CA7330 |  |
Riva Plus Large/Vision Medium Moving Grate Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVPX-CA7333 |  |
Riva Plus Large/Vision Medium Fixed Grate Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-CA7595 |
|
Vision MF/CL7 Inset Boiler Riddling Socket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RVPX-MEC8008 |  |
Riva Plus/Vision Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | RVPX-MEC8013 |  |
Riva Plus/Vision Ashpan Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-MEC8400 |
|
Vision Medium Ashpan
This part will soon be obsolete |
In Stock £47.50 | ||
| 7 | RVN-CA7579 |
|
Vision Medium MF Left Hand Base Casting | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | RVN-CA7571 |
|
Vision Medium MF Right Hand Base Casting | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | RVN-CA7521 |
|
Vision Medium MF Right Hand Grate Support
This part will soon be obsolete |
Out of Stock £125.00 | ||
| 10 | RVN-CA7518 |
|
Vision Medium MF Left Hand Grate Support | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | RVN-CA7520 |
|
Vision Medium Rear Riddling Bar
This part will soon be obsolete |
In Stock £27.50 | ||
| 12 | RVN-CA7522 |
|
Vision Medium Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR8586
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-CE7640 |
|
Vision Medium Upper Side Firebrick Dimensions: 235x180x25mm
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVN-CE7642 |
|
Vision Medium Upper Rear Side Firebrick Dimensions: 160x169x25mm
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-CE7643 |
|
Vision Medium Upper Centre Firebrick Dimensions: 185x145x25mm
This part will soon be obsolete |
In Stock £17.70 | ||
| 4 | RVN-CE7652 |
|
Vision Medium MF Lower Side Firebrick Dimensions: 225x189x25mm
| In Stock £18.46 | ||
| 5 | RVN-CE7653 |
|
Vision Medium MF Lower Rear Firebrick Dimensions: 257x174x30mm
| In Stock £29.26 | ||
Drawing: PR8500
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

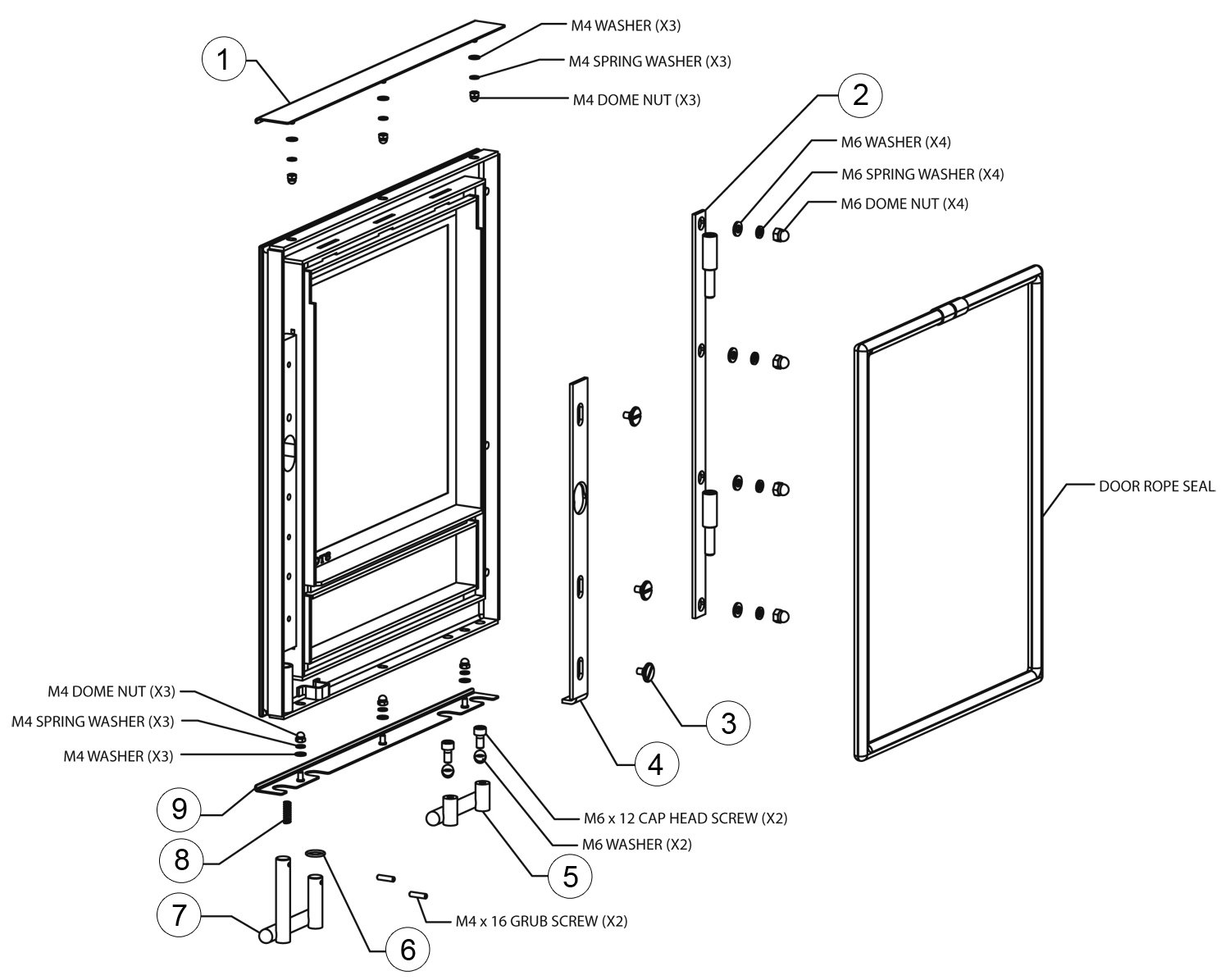

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-MEC8371 |
|
Vision Medium Upper Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVN-MEC8276 |
|
Vision Midi/Medium Hinge Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | ||
| 4 | RVN-RA501942 |
|
Vision Door Catch Slider
This part will soon be obsolete |
In Stock £139.00 | ||
| 5 | RVN-MEC8279 |
|
Vision Medium Left Hand Door Handle | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-ME600409 |  |
Vision/Vogue O Ring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | RVN-MEC8278 |
|
Vision Medium Right Hand Door Handle | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 9 | RVN-MEC8369 |
|
Vision Medium Lower Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| MEC8945 |
|
Vision Medium Glass Replacement Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
| RVN-MEC8463 |
|
Vision Medium Complete Door Assembly
This part will soon be obsolete |
In Stock £909.00 | |||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £26.75 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £15.10 | |||
Drawing: PR8498
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1+2 | RVN-MEC8554 |
|
Vision Medium Plinth Door Assembly Only suitable for non-Eco Plinth Base version
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | N/A |
|
To acquire a complete Plinth Base Unit see Vision Medium Eco Plinth assembly
| This part is not currently available. | ||
Drawing: PR8977
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
RVN-MEDM
DIMENSIONS:
525 x 600 x 353mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code RVAC011. Please note, you can only purchase paint through your local Stovax Retailer.
