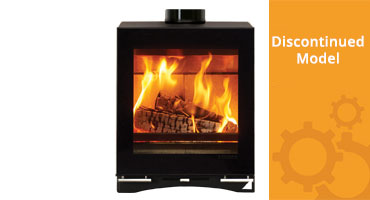

Riva Vision Midi Multi Fuel Stove
RVN-MIDM
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-ME600169 |
|
Vision/Vogue Midi Inner Top Plate | Available to Order £115.00 | ||
| 2 | RVN-MEC8251 |
|
Vision/Vogue 5in Flue Collar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-ME600304 |
|
Baffle Support Spacer | Available to Order £9.16 | ||
| 4 | RVN-MEC8292 |
|
Vision 5'' Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | RVN-ME600060 |
|
Vision Flue Ring Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-ME600061 |
|
Vision/Vogue/Sheraton 5 Wide Eco Rear Blanking Plate | This part is for multi-fuel appliances only. | ||
| 7 | RVN-MEC8362 |
|
Vision MF Air Control Slider | This part is for multi-fuel appliances only. | ||
| 8 | RVN-MEC8260 |
|
Vision Midi MF Air Control | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | RVN-ME600343 |  |
Vision M8 Should Screw | In Stock £69.25 | ||
| 10 | RVN-ME600059 |
|
Vision Air Control Slider Spring | In Stock £2.70 | ||
| 11 | RVN-ME600344 |
|
Vision Air Control Roller | Available to Order £63.50 | ||
| 12 | RVN-MEC8509 |
|
Vision Midi MF Log Guard
This part will soon be obsolete |
Out of Stock £125.00 | ||
| 13 | RVN-ME600075 |
|
Vision Midi Door Latch | Available to Order £49.30 | ||
| 14 | RVN-MEC8511 |
|
Vision Midi Lower Baffle | Available to Order £219.00 | ||
| 15 | RVN-MEC8510 |
|
Vision/Vogue Midi Upper Baffle Plate | In Stock £64.00 | ||
| MEC8944 |
|
Vision Midi Glass Replacement Kit | This part is now obsolete and can no longer be ordered as a spare. | |||

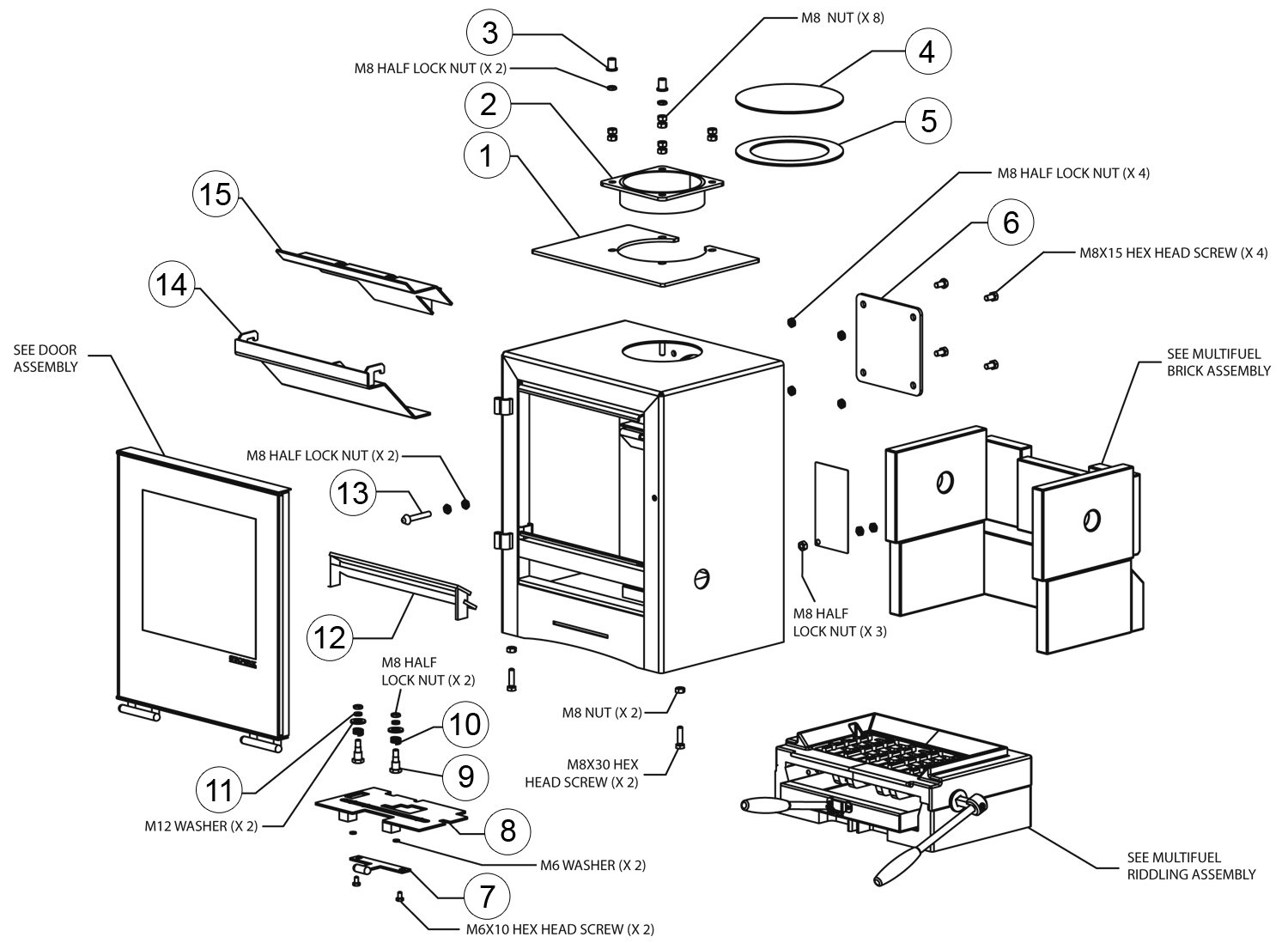

Drawing: PR8497
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVPX-CA7476 |
|
Riva Plus/Vision Midi Moving Grate Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVPX-CA7477 |
|
Riva Plus/Vision Midi Fixed Grate Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-CA7595 |
|
Vision MF/CL7 Inset Boiler Riddling Socket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RVPX-MEC8008 |  |
Riva Plus/Vision Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | RVPX-MEC8013 |  |
Riva Plus/Vision Ashpan Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-MEC8261 |
|
Vision/Vogue Midi Eco Ashpan | In Stock £24.95 | ||
| 7 | RVN-CA7578 |
|
Vision Midi MF Left Hand Base Casting | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | RVN-CA7572 |
|
Vision Midi MF Right Hand Base Casting | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | RVN-CA7556 |
|
Vision Midi MF Right Hand Grate Support | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | RVN-CA7555 |
|
Vision Midi MF Left Hand Grate Support | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | RVPX-ME600192 |
|
Riva Plus/Vision Midi Rear Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | RVN-CA7509 |
|
Vision Midi Riddling Bar | This part is now obsolete and can no longer be ordered as a spare. | ||

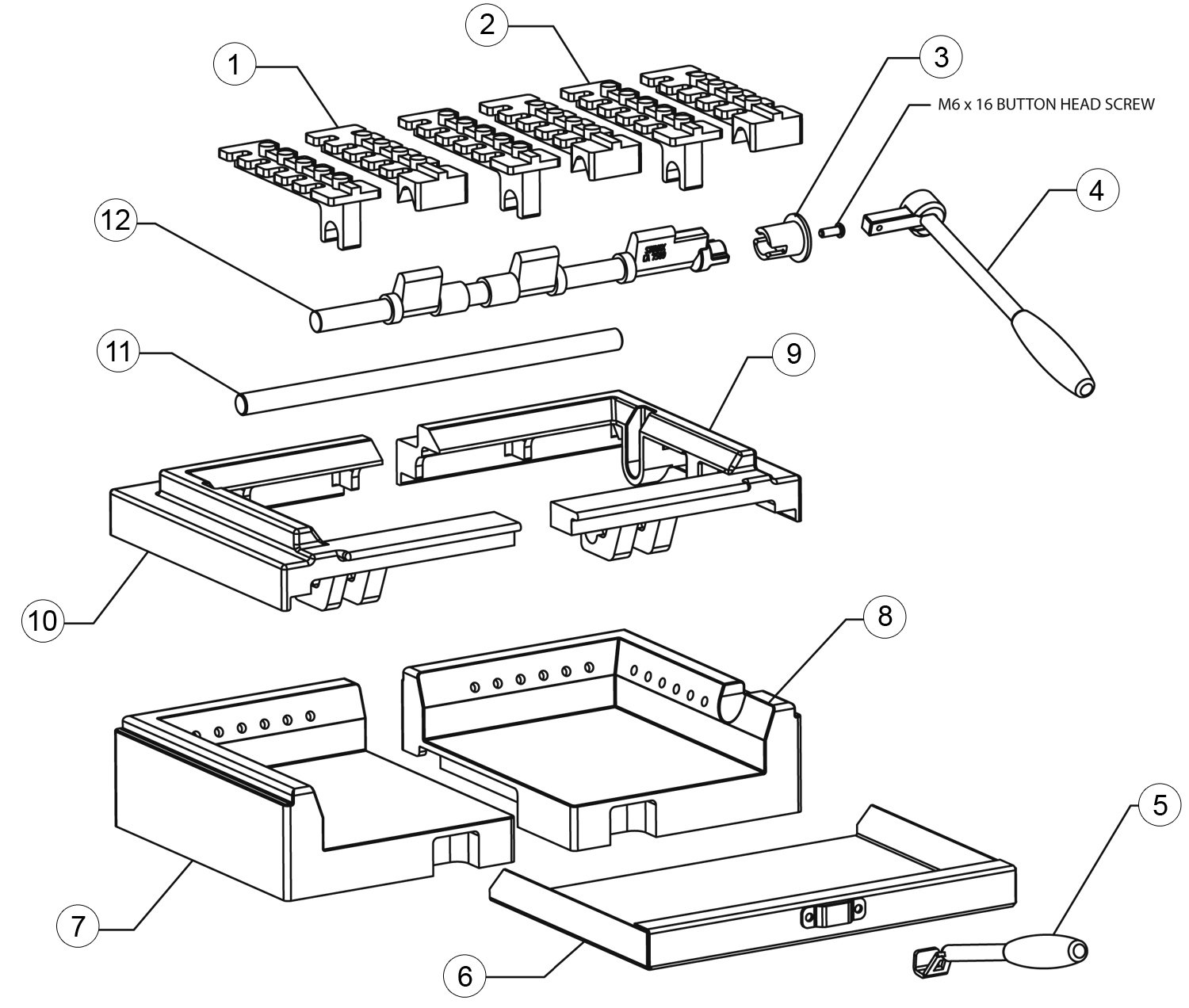

Drawing: PR8585
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-CE7619 |
|
Vision/Vogue Midi Upper Side Firebrick Dimensions: 225 x 138 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVN-CE7620 |
|
Vision/Vogue Midi Rear Side Firebrick Dimensions: 120 x 135 x 25mm (w x h x d)
This part will soon be obsolete |
In Stock £8.60 | ||
| 3 | RVN-CE7621 |
|
Vision/Vogue Small/Midi Upper Centre Firebrick Dimensions: 155 x 120 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RVN-CE7672 |
|
Vision Midi MF Lower Side Firebrick Dimensions: 210 x 166 x 25mm (w x h x d)
| In Stock £19.50 | ||
| 5 | RVN-CE7671 |
|
Vision Midi MF Lower Rear Side Firebrick Dimensions: 202 x 147 x 30mm (w x h x d)
| In Stock £21.25 | ||

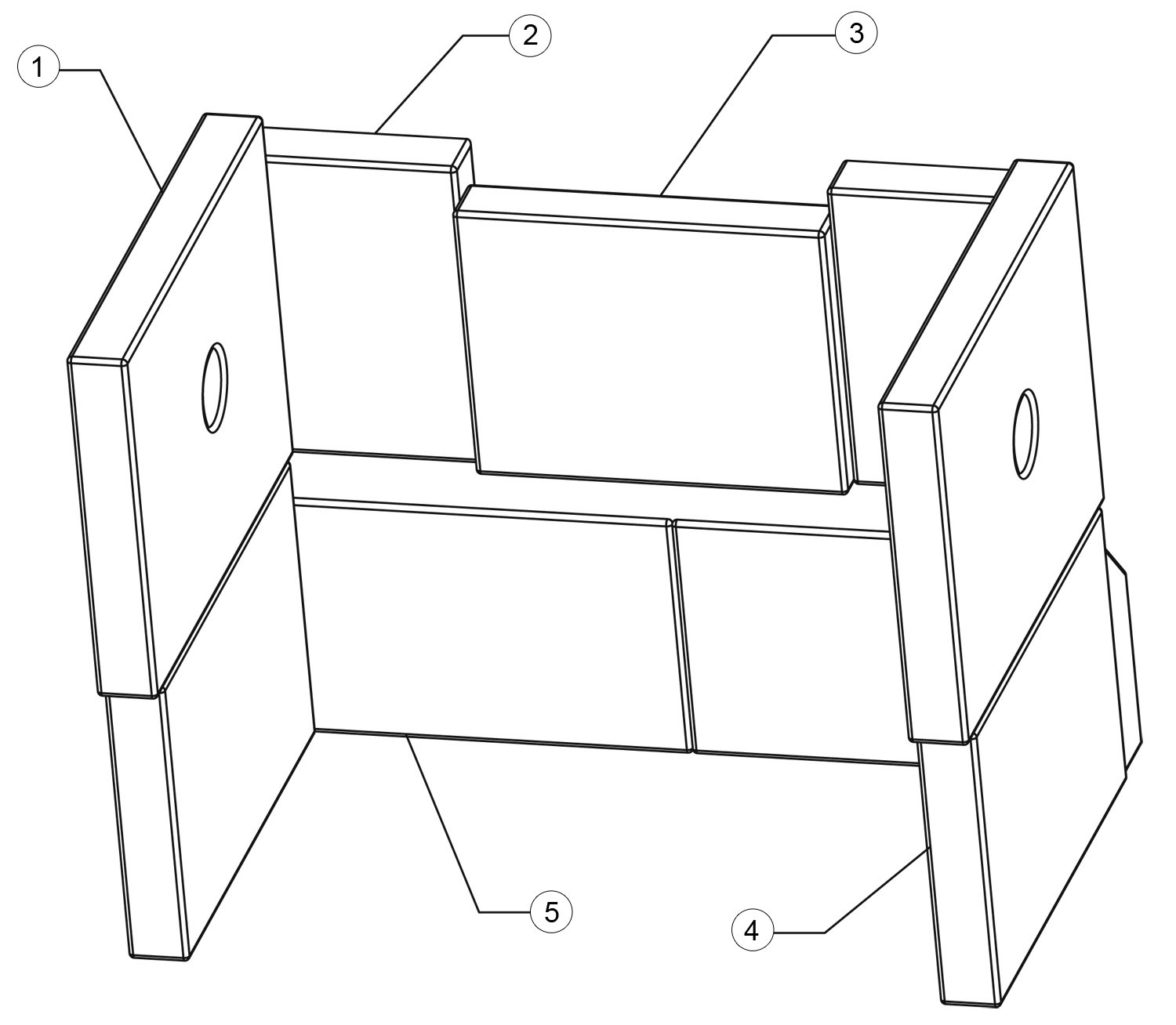

Drawing: PR8500
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-MEC8274 |
|
Vision Midi Upper Glass Clamp
This part will soon be obsolete |
In Stock £22.51 | ||
| 2 | RVN-MEC8276 |
|
Vision Midi/Medium Hinge Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | ||
| 4 | RVN-RA501942 |
|
Vision Door Catch Slider
This part will soon be obsolete |
In Stock £139.00 | ||
| 5 | RVN-MEC8329 |
|
Vision Midi Left Hand Door Handle | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-ME600409 |  |
Vision/Vogue O Ring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | RVN-MEC8330 |
|
Vision Midi Right Hand Door Handle | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 9 | RVN-MEC8275 |
|
Riva Vision Midi Bottom Glass Clamp | This part is for multi-fuel appliances only. | ||
| MEC8944 |
|
Vision Midi Glass Replacement Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
| RVN-MEC8267 |
|
Vision Midi Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £28.50 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £16.10 | |||

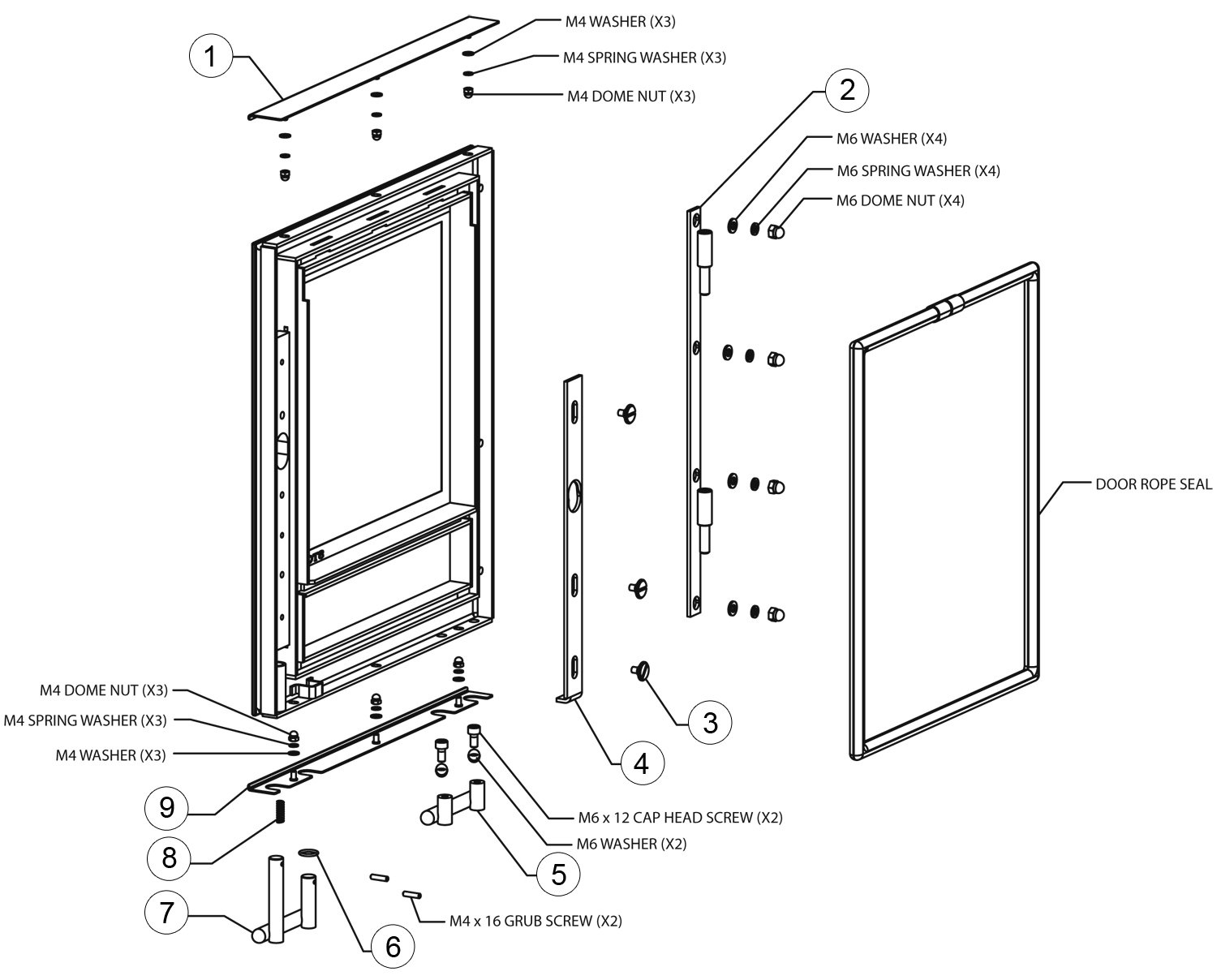

Drawing: PR8498
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1+2 | RVN-MEC8556 |
|
Vision Midi Plinth Door Assembly Only suitable for non-Eco Plinth Base version
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | N/A |
|
To acquire a complete Plinth Base Unit see Vision Midi Eco Plinth assembly
| This part is not currently available. | ||
Drawing: PR8977
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
RVN-MIDM
DIMENSIONS:
416 x 513 x 313mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code RVAC011. Please note, you can only purchase paint through your local Stovax Retailer.
