Mk2 Stockton 3 Multi Fuel Stove
ST3MF1 ST3MF1BL ST3MF1BR ST3MF1GR
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1a | CA7680 |
|
Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £27.50 | ||
| 1b | M0625HHS |
|
M6 x 25mm Hex Head Screw - Single Screw x2 Required
| In Stock £0.79 | ||
| 1c | FA0007 |
|
M6 Washer - Black x2 Required
| Available to Order £1.50 | ||
| 1d | M06NUTO |
|
M6 Nut - Single Nut x2 Required
| In Stock £0.50 | ||
| 2a | CA7679 |
|
Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £33.50 | ||
| 2b | M0610HHS |
|
M6 x 10mm Hex Head Screw - Single Screw x2 Required
| In Stock £1.50 | ||
| 2c | FA0007 |
|
M6 Washer - Black x2 Required
| Available to Order £1.50 | ||
| 3 | CE7874 |
|
Stockton 3 Mk2 Side Firebrick 202 x 175 x 25mm (w x h x d)
| In Stock £16.90 | ||
| 4 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 5a | S3.27 |
|
Stockton/View 3 Cleanburn Chamber | In Stock £105.00 | ||
| 5b | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw | In Stock £0.79 | ||
| 6 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud
This part will soon be obsolete |
In Stock £10.70 | ||
| 7 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 8 | SM10 |
|
Stockton Hinge Block | In Stock £17.20 | ||
| 9 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.00 | ||
| 10 | SMN26 |
|
Stockton 3/4/View 3/CL3 Baffle Plate | In Stock £119.00 |

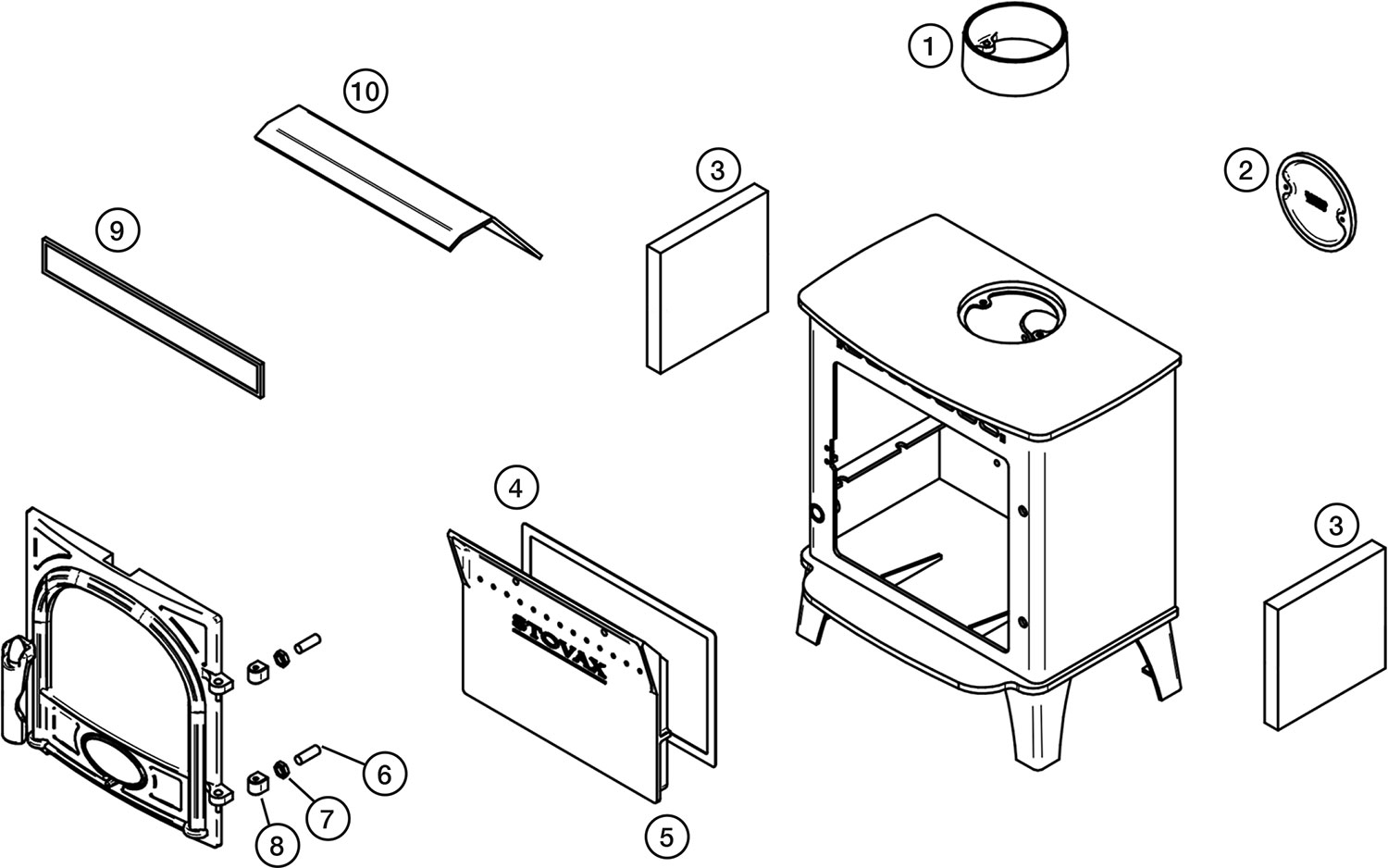

Drawing: PR9401-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £58.50 | ||
| 2 | RA502594 |
|
County/Stockton Mk2 Glass Clip | In Stock £1.50 | ||
| 2a | M0508BUTH |
|
M5 x 8mm Button Head Socket Screw - Single Screw Glass Clip Screws
| In Stock £0.85 | ||
| 3 | CE7025 |
|
Stockton/County 3 Door Glass Dimensions: 217 × 206mm (w x h)
| Available to Order £32.75 | ||
| 4 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack Glass Seal
| In Stock £16.10 | ||
| 5a | 5703 |
|
10mm Black Rope P-Seal - 750mm Pack Mid Door Seal
| In Stock £23.00 | ||
| 6 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 7 | MEC9021 |
|
Stockton Mk2 Complete Door Handle Assembly | In Stock £75.76 | ||
| 8 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 9 | ME600647 |
|
Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | Available to Order £18.85 | ||
| 10 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 11 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| 12 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 |
Drawing: PR9308-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN37 |
|
Stockton/CL/County Centre Grate | Available to Order £29.26 | ||
| 2 | SMN36 |
|
Stockton 3/4/CL3 Main Grate | Available to Order £83.50 | ||
| 3 | 5703 |
|
10mm Black Rope P-Seal - 750mm Pack Mid Door Seal
| In Stock £23.00 | ||
| 4 | CA7688 |
|
County 3/Stockton 3/4/CL3 Log Guard | Available to Order £26.26 | ||
| 5 | MEC9198 |
|
County 3/Stockton 3/4 Mk2 Ashpan | In Stock £74.95 | ||
| 6 | ME600650 |
|
Stockton 3/4/5/6/7/8/11 MF Mk2 Riddling Bar | In Stock £34.96 | ||
| 7 | RA502736 |
|
Stockton 3/4/6 Mk2 Riddling Rod | In Stock £13.66 |
Drawing: PR9309-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST3MF1 ST3MF1BL ST3MF1BR ST3MF1GR
DIMENSIONS:
389 x 510 x 338mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
