Mk1 Stockton 4 Multi Fuel Stove – Discontinued, limited parts available
7102 7102BL 7102BR 7102GR

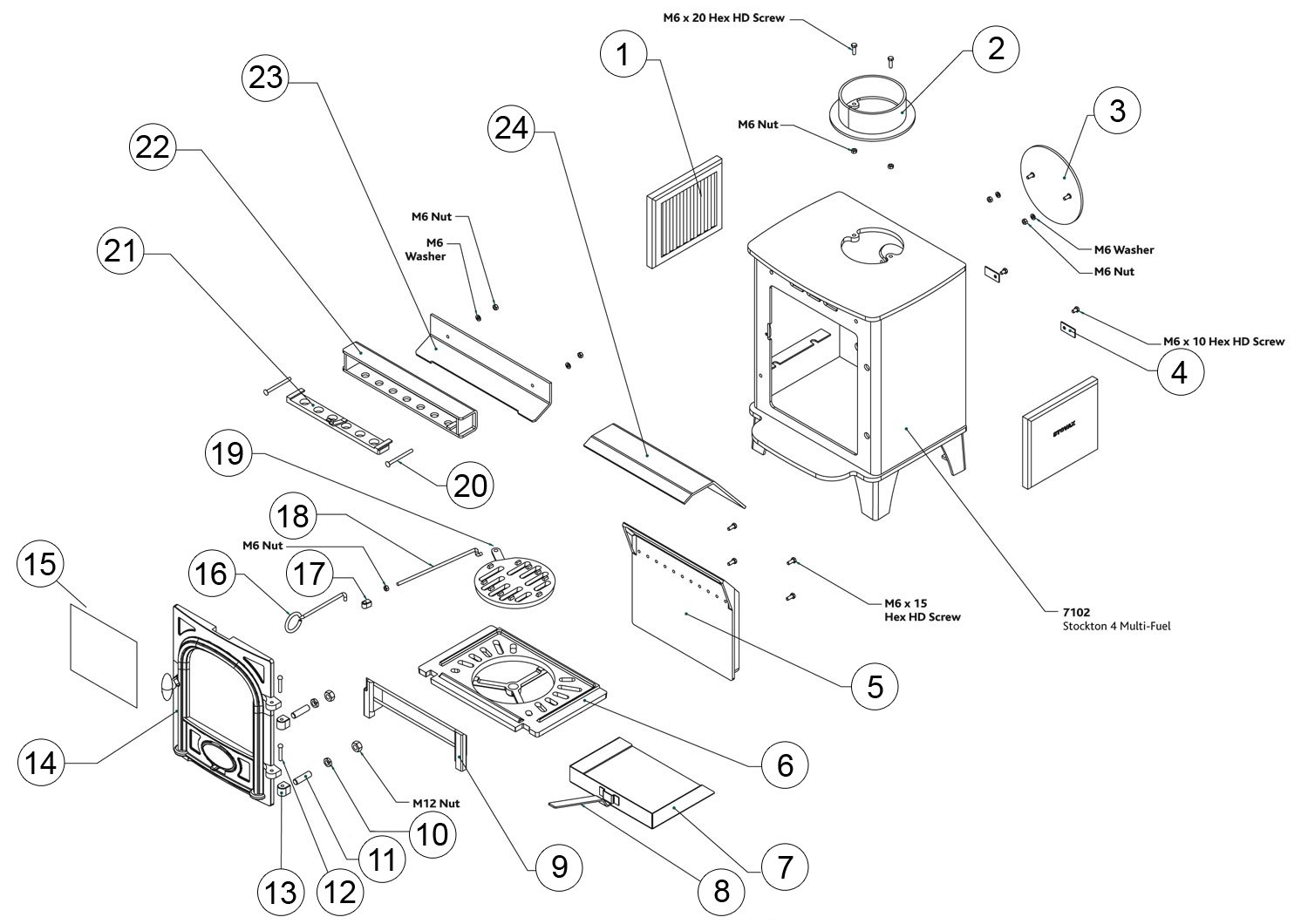

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN24 |
|
Stockton 4 Mk1 CE Side Firebrick Dimensions: 235 x 202 x 23mm (w x h x d). x1 Required on each side
| In Stock £25.75 | ||
| 2 | SS14 |
|
Stockton Mk1 3/4/5/6 5inch Flue Adapter | In Stock £27.25 | ||
| 2 | M0620HHS |
|
M6 x 20mm Hex Head Screw - Single Screw | In Stock £0.79 | ||
| 2 | M06NUTO |
|
M6 Nut - Single Nut | In Stock £0.50 | ||
| 3 | SS13 |
|
Stockton 3/4/5/6/CL3/CL5 Mk1 Blanking Plate | Available to Order £72.00 | ||
| 3 | M06NUTO |
|
M6 Nut - Single Nut | In Stock £0.50 | ||
| 3 | M06WASHPEN |
|
M6 Penny Washer - Single Washer
This part will soon be obsolete |
In Stock £1.06 | ||
| 4 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5a | SMN27 |
|
Stockton 4 Cleanburn Chamber | In Stock £169.00 | ||
| 5b | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 5c | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw x4 Required
| In Stock £0.79 | ||
| 6 | SMN36 |
|
Stockton 3/4/CL3 Main Grate | Available to Order £83.50 | ||
| 7 | SMN28 |
|
Stockton 3/4 Mk1 Ashpan | In Stock £129.00 | ||
| 8 | SM55 |
|
Stockton Ashpan Tool | In Stock £32.50 | ||
| 9 | CA7688 |
|
County 3/Stockton 3/4/CL3 Log Guard | Available to Order £26.26 | ||
| 10 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 11 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud
This part will soon be obsolete |
In Stock £10.70 | ||
| 12 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 13 | SM10 |
|
Stockton Hinge Block | In Stock £17.20 | ||
| 14 | MEC9120 |
|
Stockton 4 Mk2 Complete Door Assembly MK2 Door assembly
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | CE7017 |
|
Stockton 4 Door Glass Dimensions: 208 x 264mm (w x h)
| In Stock £37.75 | ||
| 16 | SMN33 |  |
Stockton 3/4/6 Pre CE Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | SM63 |
|
Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool For serial numbers beginning BST or FST.
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | SMN34 |  |
Stockton 3/4/6/8/Milner Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | SMN35 |
|
Stockton 3/4/6/8 Mk1 Riddling Rod | In Stock £53.75 | ||
| 19 | SMN37 |
|
Stockton/CL/County Centre Grate | Available to Order £29.26 | ||
| 20 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt | In Stock £2.05 | ||
| 21 | SMN30 |  |
Stockton 3/4 Mk1 Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | SMN11 |
|
Stockton 3/4 Mk1 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 23 | SMN12 |
|
Stockton 3/4 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 24 | SMN26 |
|
Stockton 3/4/View 3/CL3 Baffle Plate | In Stock £119.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

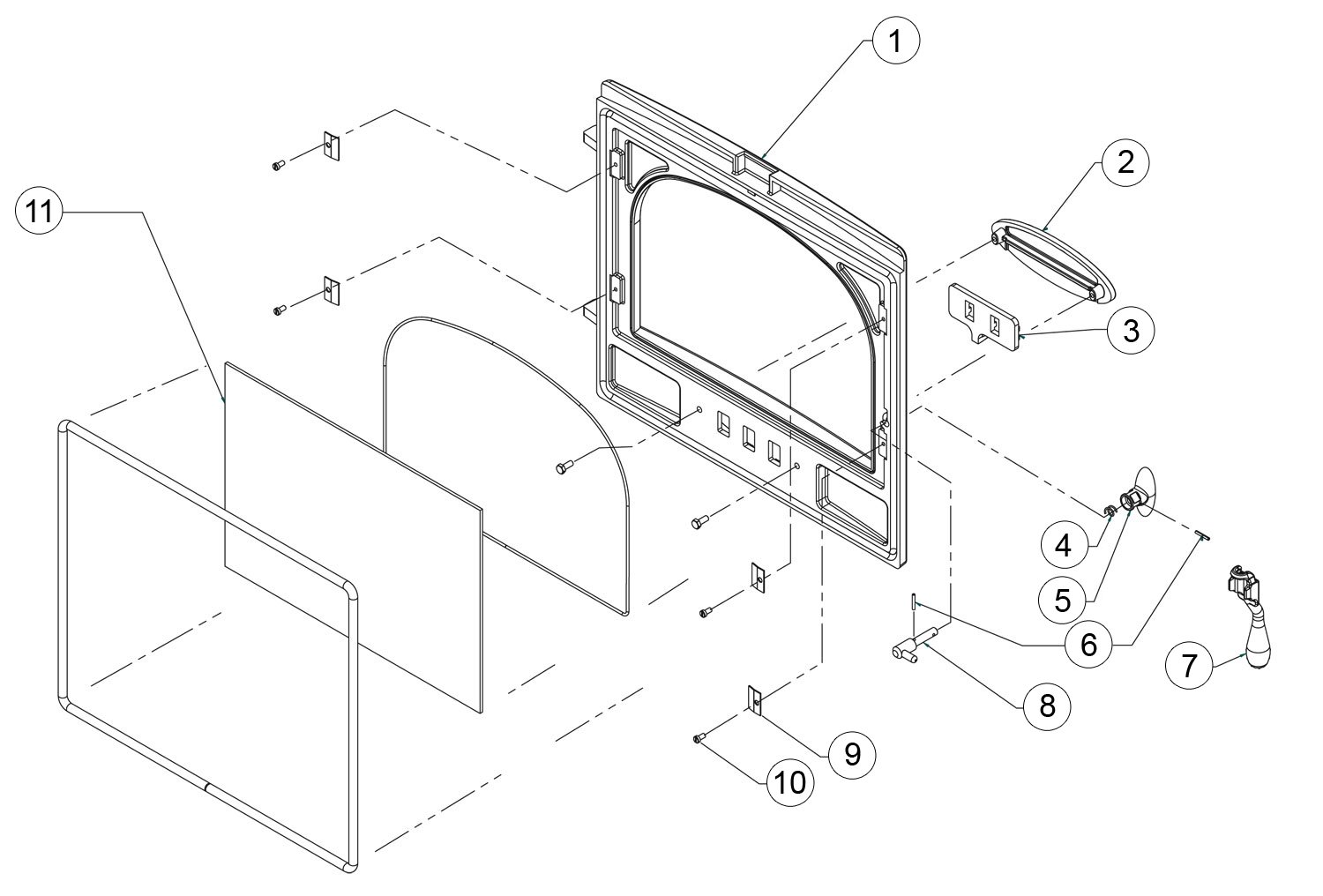

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | N/A |
|
For Complete Door Assembly see Main Assembly page. For MK2 door spares see Stockton 4 MK2 Door Assembly
| This part is not currently available. | ||
| 2 | SMN3 |  |
Stockton 3/4 Air Control Cover Plate When replacing this part it will now be necessary to use M5 x 16mm fixings.
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SMN4 |
|
Stockton 3/4 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 5 | SM7COMP |
|
Stockton Mk1 Complete Door Handle Assembly Assembly including parts 4, 5, 6 and 8. Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 7 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool Supersedes original Mk1 Single Door Tool (SM23)
| Available to Order £19.85 | ||
| 9 | SM16 |  |
Stockton Glass Clip | In Stock £1.96 | ||
| 10 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | ||
| 11 | CE7017 |
|
Stockton 4 Door Glass Dimensions: 208 x 264mm (w x h)
| In Stock £37.75 | ||
| MEC9120 |
|
Stockton 4 Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack Door Rope Seal
| In Stock £28.50 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack Glass Rope Seal
| In Stock £16.10 | |||
| ST3DS |
|
Stockton 3/4 Mk1 Mid Door Seal Bracket | This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7102 7102BL 7102BR 7102GR
DIMENSIONS:
389 x 572 x 338mm (w x h x d)
PDF Documents:
