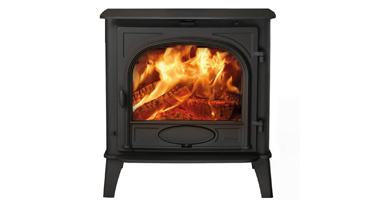

Mk2 Stockton 5 Wide Single Door Wood Burning Stove – Launched 2012 – Serial Numbers starting ASTN
ST5WIDW1
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 |
|
Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £27.50 | ||
| 2 | CA7679 |
|
Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £33.50 | ||
| 3 | ME601981 |
|
Stockton 5 Wide WB Rear Blanking Plate Spacer
This part will soon be obsolete |
In Stock £5.95 | ||
| 4 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | CE8341 |
|
Stockton 5/CL5 Wide WB Side Firebrick Dimensions: 200 x 180 x 25mm (w x h x d)
| In Stock £26.26 | ||
| 6 | RA502596 |
|
Stockton 3/4/5 Mk2 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1430mm length required
| In Stock £16.00 | ||
| 9 | SM27CE |
|
Stockton 8/5/View 8 Wide Cleanburn Chamber | In Stock £173.00 | ||
| 10 | CA7682 |
|
County/Stockton/View 8/5/CL8 Log Guard | In Stock £36.25 | ||
| 11 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud
This part will soon be obsolete |
In Stock £10.70 | ||
| 12 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 13 | SM10 |
|
Stockton Hinge Block | In Stock £17.20 | ||
| 14 | MEC9098 |
|
Stockton 8/5 Wide Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | MEC11257 |
|
Stockton 5 Wide WB Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1115mm length required
| In Stock £16.00 | ||
| 17 | MEC11256 |
|
Stockton 5 Wide WB Airwash Chamber Assembly | In Stock £299.00 | ||
| 18 | RA504420 |
|
Stockton 5 Wide WB Lower Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | RA504419 |
|
Stockton 5 Wide WB Upper Baffle Plate
This part will soon be obsolete |
In Stock £52.75 | ||
| SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | |||
| FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | |||
| M0406BUTH |
|
M4 x 6mm Button Head Screw - Single Screw | In Stock £0.65 | |||
| M0410BUTH |
|
M4 x 10mm Button Head Socket Screw - Single Screw
This part will soon be obsolete |
In Stock £0.60 | |||
| FA9505 |
|
M4 Hex Head Nut - Single Nut
This part will soon be obsolete |
In Stock
£0.00 |
|||
| M0508BUTH |
|
M5 x 8mm Button Head Socket Screw - Single Screw | In Stock £0.85 | |||
| M0510CAPH |
|
M5 x 10mm Cap Head Screw - Single Screw | In Stock £0.30 | |||
| M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw | In Stock £0.79 | |||
| M0620HHS |
|
M6 x 20mm Hex Head Screw - Single Screw | In Stock £0.79 | |||
| M0625HHS |
|
M6 x 25mm Hex Head Screw - Single Screw | In Stock £0.79 | |||
| M0675CBLT |
|
M6 x 75mm Coach Bolt - Single Bolt | In Stock £1.75 | |||
| M06NUTO |
|
M6 Nut - Single Nut | In Stock £0.50 | |||
| FA0007 |
|
M6 Washer - Black | Available to Order £1.50 | |||
| M0850HHS |
|
M8 x 50mm Hex Head Screw - Single Screw | In Stock £0.65 | |||
| RVAC111 |  |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | |||
| M08NUTO |
|
M8 Nut - Single Nut | In Stock £1.50 | |||
| M08WASH |
|
M8 Washer - Single Washer | In Stock £0.20 | |||
| SM18 | |
M12 x 35mm Hinge Block Stud - Single Stud
This part will soon be obsolete |
In Stock £10.70 | |||
| SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | |||
| M12NUTO |
|
M12 Nut - Single Nut | In Stock £1.50 | |||
| YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | |||

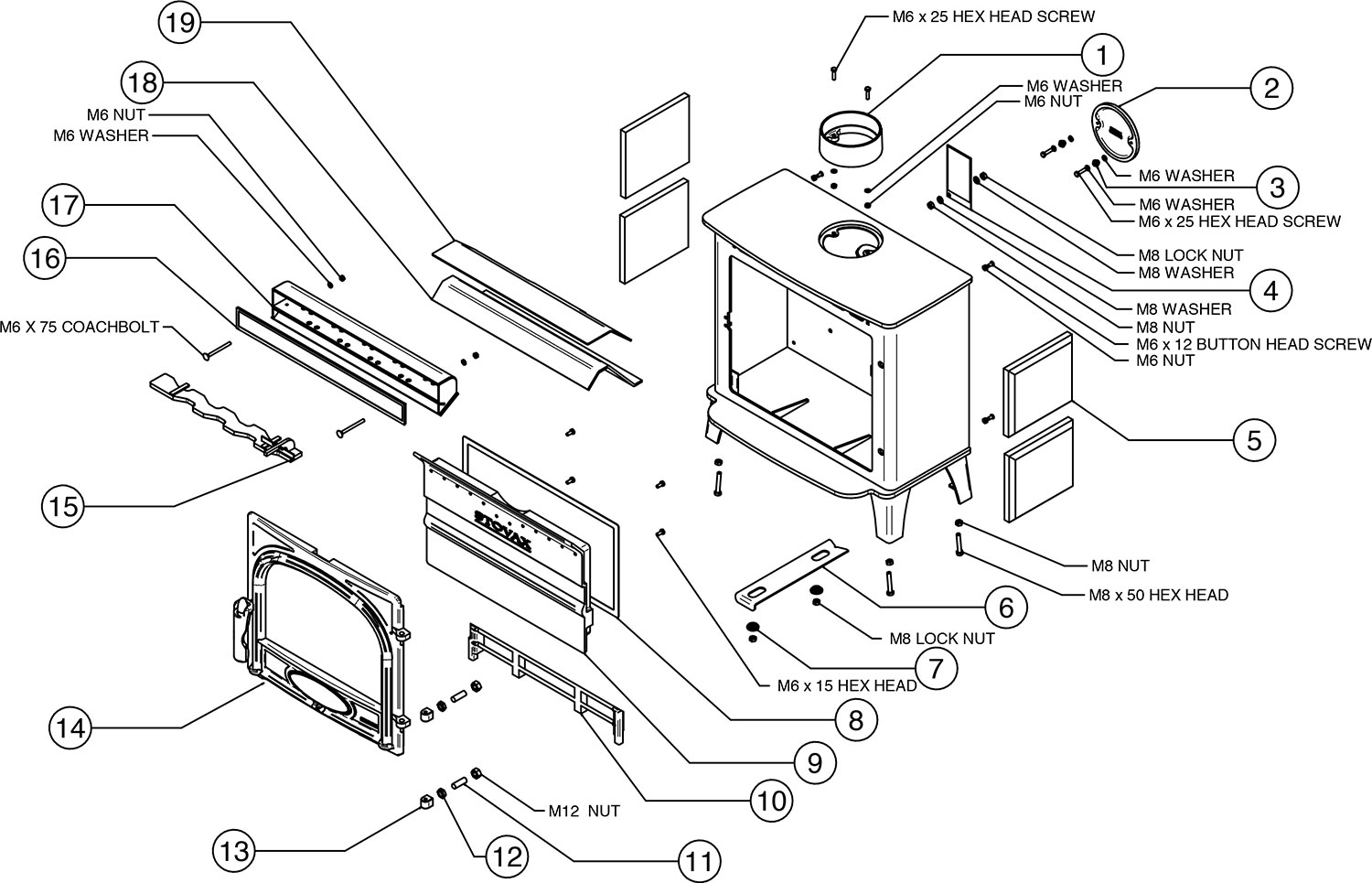

Drawing: PR10955-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack 2000mm length required
| In Stock £58.50 | ||
| 2 | GL0101 |
|
Stockton 8/5 Wide Single Door Glass Dimensions: 402 x 277mm (w x h)
| In Stock £61.50 | ||
| 3 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack 1500mm length required
| In Stock £16.10 | ||
| 4 | N/A |
|
For complete door assembly see Main Assembly page
| This part is not currently available. | ||
| 5 | ME600683 |
|
Stockton 8 Mk2/5 Wide Air Control Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | MEC9099 |
|
Stockton 8 Mk2/5 Wide Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | SM3 |
|
Stockton 8/11/5 Wide Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 9 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 10 | MEC11085 |
|
Stockton 8/5 Wide Door Handle Assembly - Single Door Assembly including parts 11, 12, 13, 14 and 15
| In Stock £105.00 | ||
| 11 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 12 | ME601912 |
|
Mk2 Stockton 8 Door Spindle Shaft | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | RVAC111 | |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| 16 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 17 | RA502594 |
|
County/Stockton Mk2 Glass Clip | In Stock £1.50 | ||
| 17a | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw Glass Clip Screw
| In Stock £0.49 | ||
| 18 | 5703 |
|
10mm Black Rope P-Seal - 750mm Pack Multi Fuel Models Only
| In Stock £23.00 | ||
Drawing: PR9308-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM81CE |
|
Stockton 8 Slimline/5 Wide Left Hand Side Grate Support
This part will soon be obsolete |
In Stock £62.00 | ||
| 2 | SM50SL |
|
Stockton 8 Slimline Cast Grate
This part will soon be obsolete |
In Stock £155.00 | ||
| 3 | SM80CE |
|
Stockton 5 Wide/ 8 Slimline Right Hand Side Grate Support
This part will soon be obsolete |
In Stock £66.76 | ||
| 4 | MEC9107 |
|
Stockton 5 Wide/ 8 Slimline Ashpan | In Stock £24.25 | ||
| 5 | 5703 |
|
10mm Black Rope P-Seal - 750mm Pack 430mm LG required. One door only.
| In Stock £23.00 | ||
| 6 | N/A |
|
Two door only.
| This part is not currently available. | ||
| MFKIT5WID |
|
Stockton 5 Wide Multi-fuel Kit Assembly including parts 1 to 5
| This part is now obsolete and can no longer be ordered as a spare. | |||
Drawing: PR10961-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST5WIDW1
DIMENSIONS:
603 x 600 x 360mm (w x h x d)
