Mk3 Stockton 5 Eco Multi Fuel Stove
721-750
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 | Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £30.53 | |||
| 2 | CE8461 | Stockton Eco 5" Flue Gasket | In Stock £16.00 | |||
| 3 | CA7935 | Stockton 5" Inner Flue Ring | In Stock £21.04 | |||
| 4 | CA7679 | Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £37.19 | |||
| 5 | ME601731 | Sheraton/Chesterfield/Vision/Vogue Eco Baffle Extension Tube | In Stock £15.98 | |||
| 6 | CE8469 | Stockton/County 5 Eco MF Right Hand Side Firebrick Dimensions: 220 x 263 x 25mm (w x h x d)
| In Stock £27.70 | |||
| 7 | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £17.30 | |||
| 8 | CA7937 | County/Stockton 5 Eco Clean Burn Chamber | Available to Order £120.98 | |||
| 9 | SM10 | Stockton Hinge Block | In Stock £19.09 | |||
| 10 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 11 | SM21 | M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.78 | |||
| 12 | MEC11733 | Stockton 5 Eco Complete Door Assembly | In Stock £449.56 | |||
| 13 | 4998 |  |
20mm x 2mm Black Self Adhesive Insulation Tape - 2m Pack | In Stock £19.85 | ||
| 14 | CE8468 | Stockton/County 5 Eco MF Left Hand Side Firebrick Dimensions: 220 x 263 x 25mm (w x h x d)
| In Stock £27.70 | |||
| N/A | Not available as a spare
| This part is not currently available. | ||||
| 16 | MEC11837 | Stockton 5 Eco Airwash Assembly | In Stock £216.46 | |||
| 17 | MEC11838 | Stockton/County 5 Eco Baffle Plate | In Stock £198.70 | |||
Drawing: PR11115-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 4999 | 14mm Black Door Rope Seal with Adhesive - 2.6m Pack Door Seal
| In Stock £34.75 | |||
| 2 | RA502594 | County/Stockton Mk2 Glass Clip | In Stock £1.50 | |||
| 2a | SM29 | M5 x 8mm Button Head Screw - Single Screw Glass Clip Screw
| In Stock £0.49 | |||
| 3 | CE7024 | County/Stockton 5 Door Glass Dimensions: 282 x 227mm (w x h)
| In Stock £48.84 | |||
| 4 | 4975 | 3mm Glass Rope Seal with Adhesive - 2m Pack Glass Seal
| In Stock £17.40 | |||
| 5 | SM20 | Stockton Door Hinge Pin | In Stock £2.10 | |||
| 6 | CA7677 | Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £25.64 | |||
| 7 | MEC9021 | Stockton Mk2 Complete Door Handle Assembly | In Stock £84.08 | |||
| 8 | FA9017 | Airwash Spinner Spring | In Stock £3.16 | |||
| 9 | ME600647 | Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | In Stock £20.93 | |||
| 10 | YM-F00004 | 3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.55 | |||
| 11 | MEC9020 | Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £15.49 |

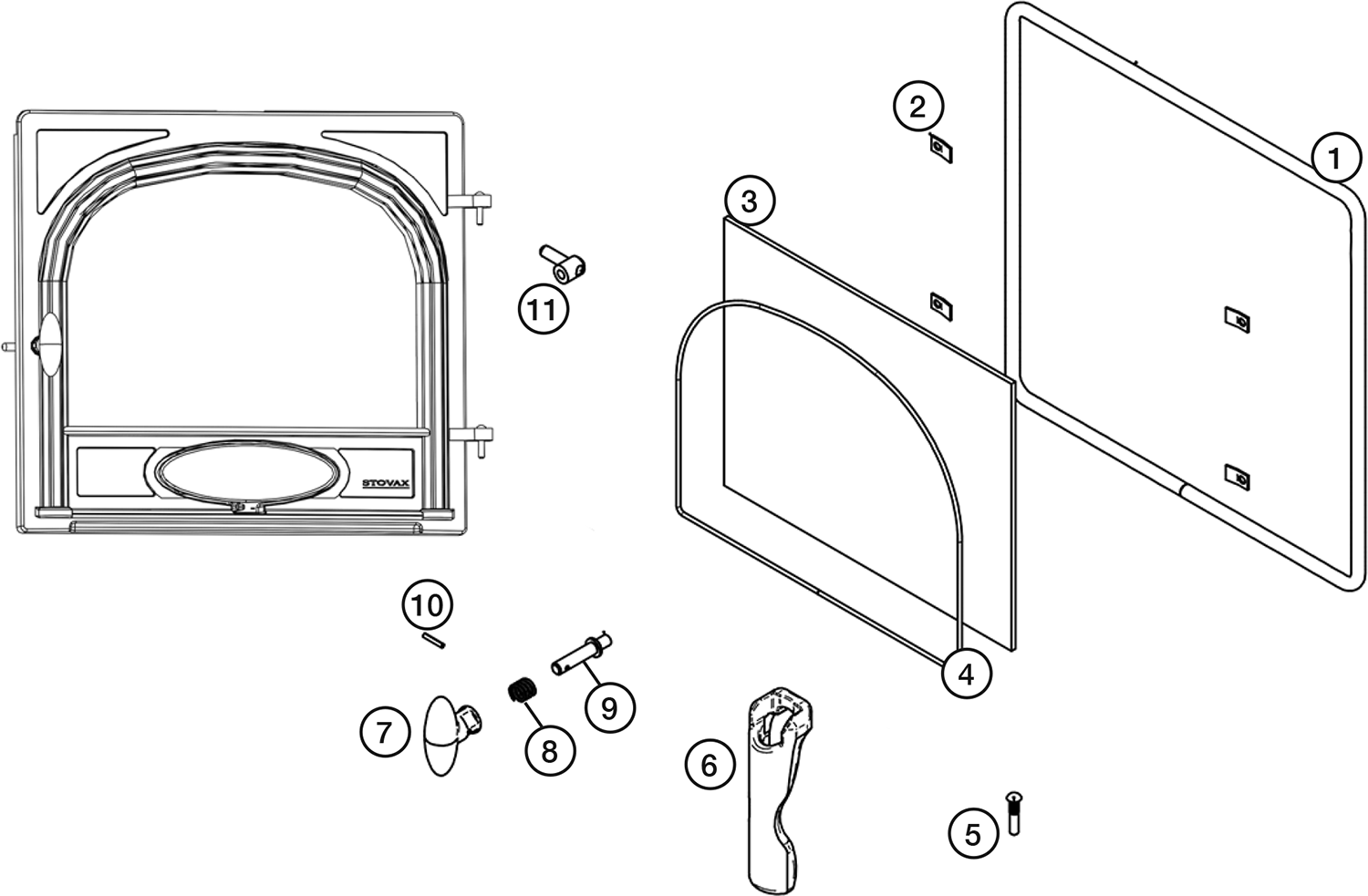

Drawing: PR11119-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN37 | Stockton/CL/County Centre Grate | In Stock £48.84 | |||
| 2 | S5.53CE | Stockton 5/View 5/CL5 CE Main Grate | In Stock £149.86 | |||
| 3 | MEC9023 | Stockton 5 Mk2 Ashpan | In Stock £143.20 | |||
| 4 | CA7678 | Stockton 5/County 5 Log Guard | In Stock £31.36 | |||
| 5a | MEC11732 | Stockton 5 Eco Mid Door Seal Bracket | In Stock £27.70 | |||
| 5b | 4995 | 10mm Black Rope Seal with Adhesive - 2m Pack Mid Door Seal
| In Stock £28.00 | |||
| 6 | ME600650 | Stockton 3/4/5/6/7/8/11 MF Mk2 Riddling Bar | In Stock £38.80 | |||
| 7 | RA502598 | Stockton 5 Mk2 Riddling Rod | In Stock £17.76 |
Drawing: PR11113-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
721-750
DIMENSIONS:
481 x 544 x 335mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
PDF Documents:
