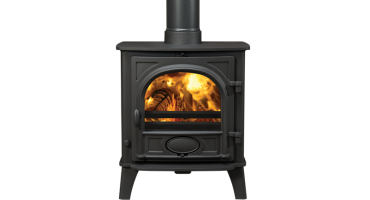

Mk2 Stockton 5 Wood Burning Stove
ST5W1 ST5W1BL ST5W1BR ST5W1GR
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 | Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £30.53 | |||
| 2 | CA7679 | Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £37.19 | |||
| 3 | ME500717 | Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | |||
| 4 | CE7836 | Stockton 4/5 Mk2 Side Firebrick Please note: 3 Bricks Required Each Side (202x98x25mm)
| In Stock £13.43 | |||
| 5 | RA502596 | Stockton 3/4/5 Mk2 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £17.30 | |||
| 8a | S5.27 | Stockton/View 5/CL5 Cleanburn Chamber | In Stock £172.06 | |||
| 8b | M0615HHS | M6 x 15mm Hex Head Screw - Single Screw x4 Required
| In Stock £0.79 | |||
| 9 | ME600654 | Stockton 5 WB Mk2/County 5 Eco Log Retaining Plate | In Stock £73.75 | |||
| 10 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 11 | SM21 | M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.78 | |||
| 12 | SM10 | Stockton Hinge Block | In Stock £19.09 | |||
| 13 | MEC9013 | Stockton 5 Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | MEC9012 | Stockton 5/7 Mk2 Airwash Slider | In Stock £194.24 | |||
| 15 | SM19 | M6 x 70mm Coachbolt - Single Bolt | In Stock £2.05 | |||
| 16 | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £17.30 | |||
| 17 | MEC9011 | Stockton 5 Mk2 Airwash Control Chamber | In Stock £165.40 | |||
| 18 | S5.26 | Stockton 5/View 5/CL5 Baffle Plate | In Stock £116.56 | |||
| 19 | N/A Carcass | Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | |||
Drawing: PR9397-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 | 13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £63.25 | |||
| 2 | CE7024 | County/Stockton 5 Door Glass Dimensions: 282 x 227mm (w x h)
| In Stock £48.84 | |||
| 3 | 4975 | 3mm Glass Rope Seal with Adhesive - 2m Pack Glass Seal
| In Stock £17.40 | |||
| 4 | N/A | For complete door assembly see Main Assembly page
| This part is not currently available. | |||
| 5 | ME600646 | Stockton 5/6/7 Mk2 Air Control Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | MEC9022 | Stockton 5/6/7/8/11 Mk2 Primary Air Slider
This part will soon be obsolete |
In Stock £12.43 | |||
| 7 | SS3 | Stockton 5/6/7 Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | CA7677 | Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £25.64 | |||
| 9 | YM-F00004 | 3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.55 | |||
| 10 | MEC9021 | Stockton Mk2 Complete Door Handle Assembly Assembly including parts 11, 12, 13, 14 and 15.
| In Stock £84.08 | |||
| 11 | FA9017 | Airwash Spinner Spring | In Stock £3.16 | |||
| 12 | ME600647 | Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | In Stock £20.93 | |||
| 13 | RVAC111 |  |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | MEC9020 | Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £15.49 | |||
| 15 | N/A | See part 10
| This part is not currently available. | |||
| 16 | SM20 | Stockton Door Hinge Pin | In Stock £2.10 | |||
| 17 | RA502594 | County/Stockton Mk2 Glass Clip | In Stock £1.50 | |||
| 17a | SM29 | M5 x 8mm Button Head Screw - Single Screw Glass Clip Screw
| In Stock £0.49 | |||
| 18 | 5703 | 10mm Black Rope P-Seal - 750mm Pack Mid Door Seal (Multi Fuel only)
| In Stock £25.00 | |||
Drawing: PR9308-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN37 | Stockton/CL/County Centre Grate | In Stock £48.84 | |||
| 2 | S5.53CE | Stockton 5/View 5/CL5 CE Main Grate | In Stock £149.86 | |||
| 3 | MEC9023 | Stockton 5 Mk2 Ashpan | In Stock £143.20 | |||
| 4 | CA7678 | Stockton 5/County 5 Log Guard | In Stock £31.36 | |||
| 5 | 5703 | 10mm Black Rope P-Seal - 750mm Pack 320mm LG required
| In Stock £25.00 | |||
| 6 | ME600650 | Stockton 3/4/5/6/7/8/11 MF Mk2 Riddling Bar | In Stock £38.80 | |||
| 7 | RA502598 | Stockton 5 Mk2 Riddling Rod | In Stock £17.76 |
Drawing: PR9309-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST5W1 ST5W1BL ST5W1BR ST5W1GR
DIMENSIONS:
481 x 544 x 335mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
PDF Documents:
