Mk1 Stockton 5 Multi Fuel Stove – Launched 2007 – Discontinued, limited parts available
7127 7127BL 7127BR 7127GR 7161 7161BL 7161BR 7161GR 7130 7130BL 7130BR 7130GR

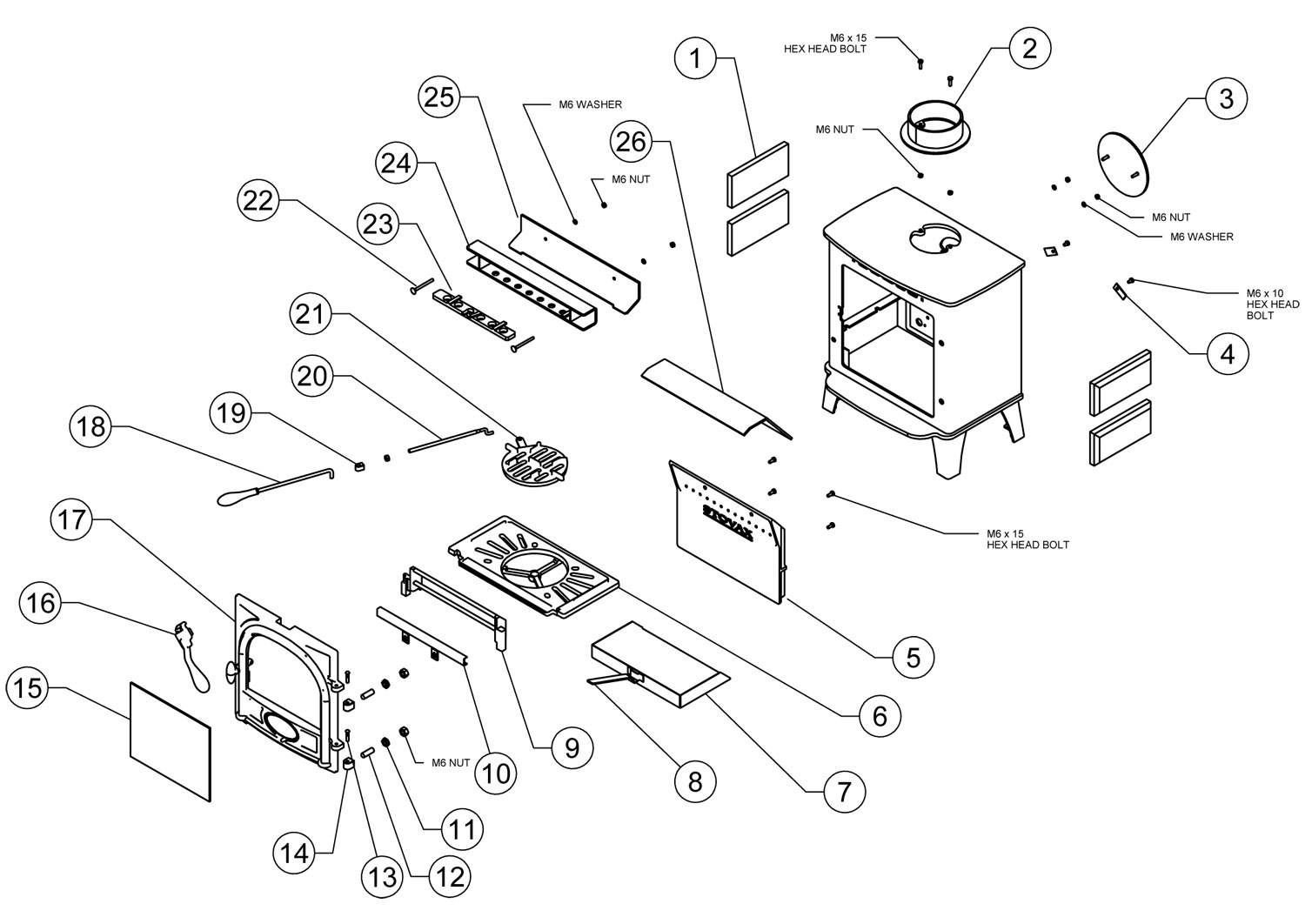

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | S5.24CE | Stockton 4/5 Mk1 CE Side Firebrick Dimensions: 202 x 98 x 25mm (w x h x d). From Serial Numbers FST 00000 and BST 00000 Onwards
| In Stock £15.16 | |||
| 2 | SS14 | Stockton Mk1 3/4/5/6 5inch Flue Adapter | Available to Order £30.25 | |||
| 3 | SS13 | Stockton 3/4/5/6/CL3/CL5 Mk1 Blanking Plate | In Stock £79.92 | |||
| 3a | M06WASHPEN | M6 Penny Washer - Single Washer
This part will soon be obsolete |
In Stock £1.06 | |||
| 3b | M06NUTO | M6 Nut - Single Nut | In Stock £0.50 | |||
| 4 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5a | S5.27 | Stockton/View 5/CL5 Cleanburn Chamber | In Stock £172.06 | |||
| 5b | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Seal
| In Stock £17.30 | |||
| 5c | M0615HHS | M6 x 15mm Hex Head Screw - Single Screw x4 Required
| In Stock £0.79 | |||
| 6 | S5.53CE | Stockton 5/View 5/CL5 CE Main Grate | In Stock £149.86 | |||
| 7 | S5.28 | Stockton 5 Ashpan | In Stock £40.52 | |||
| 8 | SM55 | Stockton Ashpan Tool | In Stock £36.07 | |||
| 9 | CA7678 | Stockton 5/County 5 Log Guard | In Stock £31.36 | |||
| 10 | ST5DS | Stockton 5 Mk1 Mid Door Seal Bracket Door Rope Seal Required
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 11 | SM21 | M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.78 | |||
| 12 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 13 | SM20 | Stockton Door Hinge Pin | In Stock £2.10 | |||
| 14 | SM10 | Stockton Hinge Block | In Stock £19.09 | |||
| 15 | CE7024 | County/Stockton 5 Door Glass Dimensions: 282 x 227 (w x h)
| In Stock £48.84 | |||
| 16 | CA7677 | Stockton/Yeoman Mk2 Multifunction Door Tool Supersedes the Original SM26
| Available to Order £25.64 | |||
| 17 | MEC9013 | Stockton 5 Mk2 Complete Door Assembly MK2 Door assembly
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 18 | SM63 | Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | |||
| 19 | S5.34 |  |
Stockton 5/7 Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | S5.35 | Stockton 5 Mk1 Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | |||
| 21 | SMN37 | Stockton/CL/County Centre Grate | In Stock £48.84 | |||
| 22 | SM19 | M6 x 70mm Coachbolt - Single Bolt | In Stock £2.05 | |||
| 23 | SS30 | Stockton 5/6/7 Airwash Slider
This part will soon be obsolete |
In Stock £53.75 | |||
| 24 | ST5-MEC8582 | Stockton 5 MF Mk1 Airwash Chamber and Deflector Plate Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 25 | S5.12 | Stockton 5 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 26 | S5.26 | Stockton 5/View 5/CL5 Baffle Plate | In Stock £116.56 | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | N/A | For Complete Door Assembly see Main Assembly page. For MK2 door spares see Stockton 5 MK2 Door Assembly
| This part is not currently available. | |||
| 2 | SS3 | Stockton 5/6/7 Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 3 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9017 | Airwash Spinner Spring | In Stock £3.16 | |||
| 5 | SM7COMP | Stockton Mk1 Complete Door Handle Assembly Assembly including parts 4, 5, 6 and 8. Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | YM-F00004 | 3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.55 | |||
| 7 | CA7677 | Stockton/Yeoman Mk2 Multifunction Door Tool Supersedes original Mk1 Single Door Tool (SM23)
| Available to Order £25.64 | |||
| 9 | SM16 |  |
Stockton Glass Clip | In Stock £7.43 | ||
| 10 | SM29 | M5 x 8mm Button Head Screw - Single Screw Glass Clip Screw
| In Stock £0.49 | |||
| 11 | 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack 1340mm length required
| In Stock £31.00 | ||
| 12 | CE7024 | County/Stockton 5 Door Glass Dimensions: 282 x 227mm (w x h)
| In Stock £48.84 | |||
| 13 | 4975 | 3mm Glass Rope Seal with Adhesive - 2m Pack 905mm length required
| In Stock £17.40 | |||
| MEC9013 | Stockton 5 Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||||
| ST5DS | Stockton 5 Mk1 Mid Door Seal Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7127 7127BL 7127BR 7127GR 7161 7161BL 7161BR 7161GR 7130 7130BL 7130BR 7130GR
DIMENSIONS:
481 x 544 x 335mm (w x h x d)
