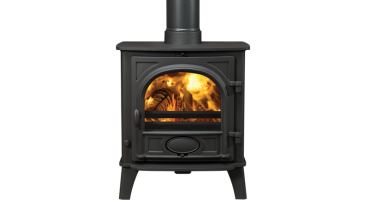

Mk1 Stockton 5 Wood Burning Stove
7119 7119BL 7119BR 7119GR 7160 7160BL 7160BR 7160GR

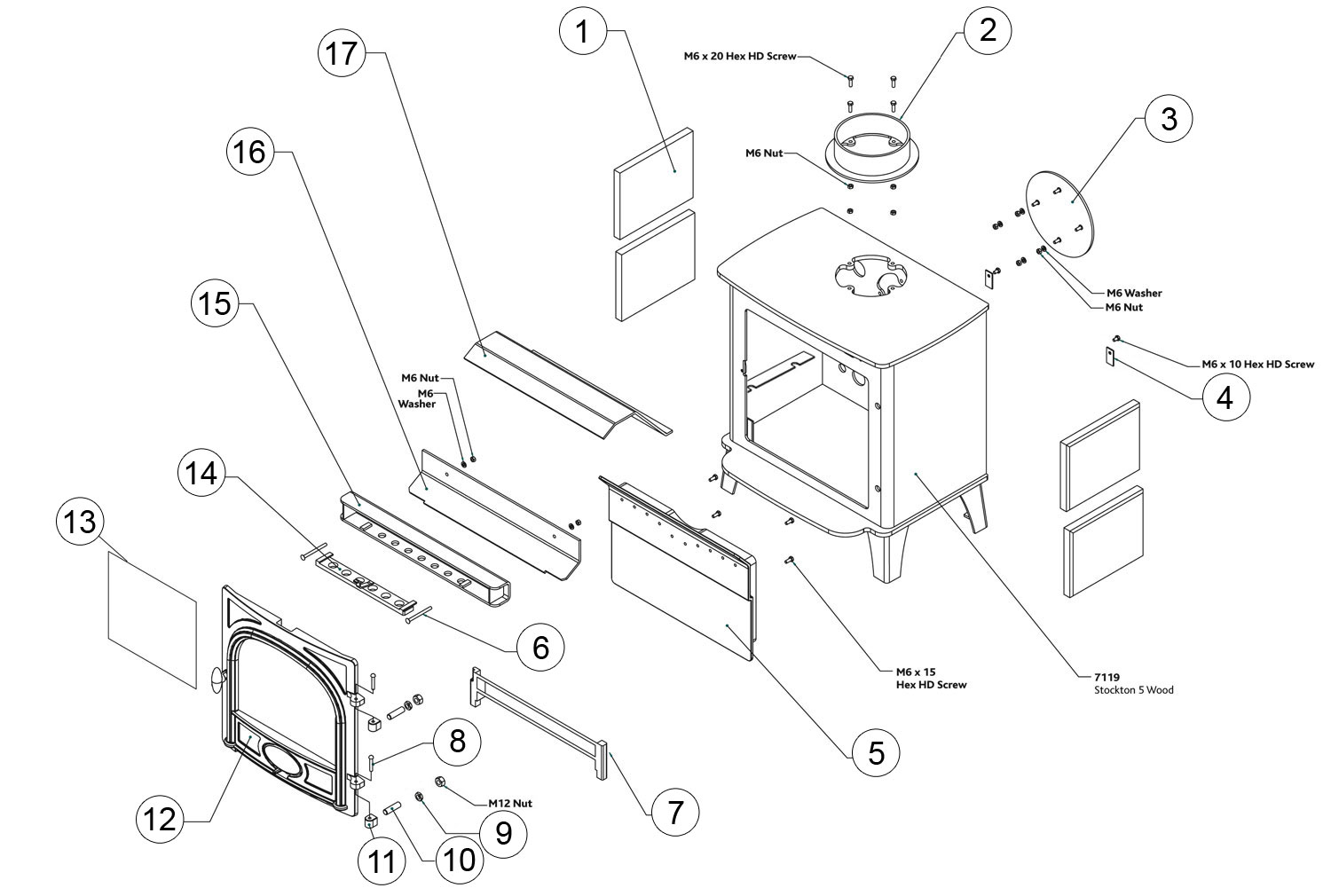

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | S5.24CE |
|
Stockton 4/5 Mk1 CE Side Firebrick Dimensions: 202 x 98 x 25mm (w x h x d)
| In Stock £13.66 | ||
| 2 | SS14 |
|
Stockton Mk1 3/4/5/6 5in Flue Adapter | Available to Order £27.25 | ||
| 3 | SS13 |
|
Stockton 3/4/5/6/CL3/CL5 Mk1 Blanking Plate | Available to Order £72.00 | ||
| 4 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | S5.27 |
|
Stockton/View 5/CL5 Cleanburn Chamber | Available to Order £155.00 | ||
| 5 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £15.00 | ||
| 5 | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw | In Stock £0.79 | ||
| 6 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt | In Stock £2.05 | ||
| 7 | CA7678 |
|
Stockton 5/County 5 Log Guard | In Stock £28.25 | ||
| 8 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 9 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 10 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | Available to Order £10.70 | ||
| 11 | SM10 |
|
Stockton Hinge Block | Available to Order £17.20 | ||
| 12 | MEC9013 |
|
Stockton 5 Mk2 Complete Door Assembly Mk2 Door Assembly
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | CE7024 |
|
Stockton/County 5 Door Glass Dimensions: 282 x 227mm (w x h)
| In Stock £44.00 | ||
| 14 | SS30 |
|
Stockton 5/6/7 Airwash Slider
This part will soon be obsolete |
In Stock £53.75 | ||
| 15 | S5.11 |
|
Stockton 5 WB Mk2 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | S5.12 |
|
Stockton 5 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | S5.26 |
|
Stockton 5/View 5/CL5 Baffle Plate | Available to Order £105.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

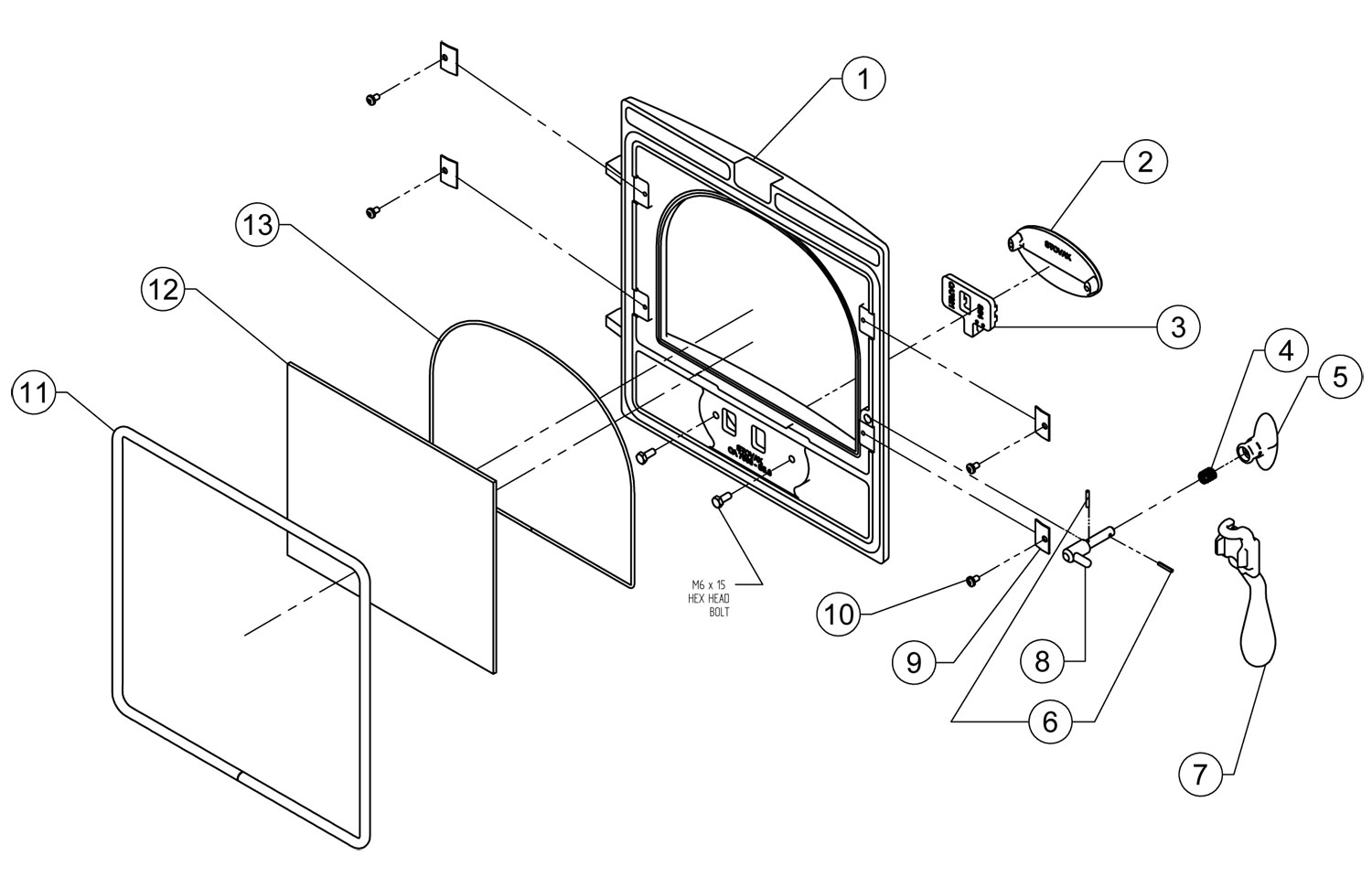

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | N/A |
|
For Complete Door Assembly see Main Assembly page. For MK2 door spares see Stockton 5 MK2 Door Assembly
| This part is not currently available. | ||
| 2 | SS3 |
|
Stockton 5/6/7 Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for Mk1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 5 | SM7COMP |
|
Stockton Mk1 Complete Door Handle Assembly Assembly including parts 4, 5, 6 and 8. Only suitable for Mk1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 7 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool Supersedes original Mk1 Single Door Tool (SM23)
| In Stock £19.85 | ||
| 9 | SM16 |  |
Stockton Glass Clip | Available to Order £1.96 | ||
| 10 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | ||
| 11 | 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack 1340mm length required
| In Stock £26.75 | ||
| 12 | CE7024 |
|
Stockton/County 5 Door Glass Dimensions: 282 x 227mm (w x h)
| In Stock £44.00 | ||
| 13 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack 905mm length required
| In Stock £15.10 | ||
| MEC9013 |
|
Stockton 5 Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN37 |
|
Stockton 3/4/5/6/7/8/11/CL3/CL5/CL8 Centre Grate | In Stock £29.26 | ||
| 2 | S5.35 |
|
Stockton 5 Mk1 Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | S5.34 |  |
Stockton 5/7 Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | ST5DS |
|
Stockton 5 Mk1 Mid Door Seal Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SM63 |
|
Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | SM55 |
|
Ashpan Tool | In Stock £32.50 | ||
| 7 | S5.28 |
|
Stockton 5 Ashpan | In Stock £36.50 | ||
| 8 | S5.53CE |
|
Stockton 5/View 5/CL5 CE Main Grate | In Stock £135.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7119 7119BL 7119BR 7119GR 7160 7160BL 7160BR 7160GR
DIMENSIONS:
481 x 544 x 335mm (w x h x d)
