Mk2 Stockton 7 Inset Convector Flat Top Stove
ST7NMFFT1 ST7NMFFT1BL ST7NMFFT1BR ST7NMFFT1GR

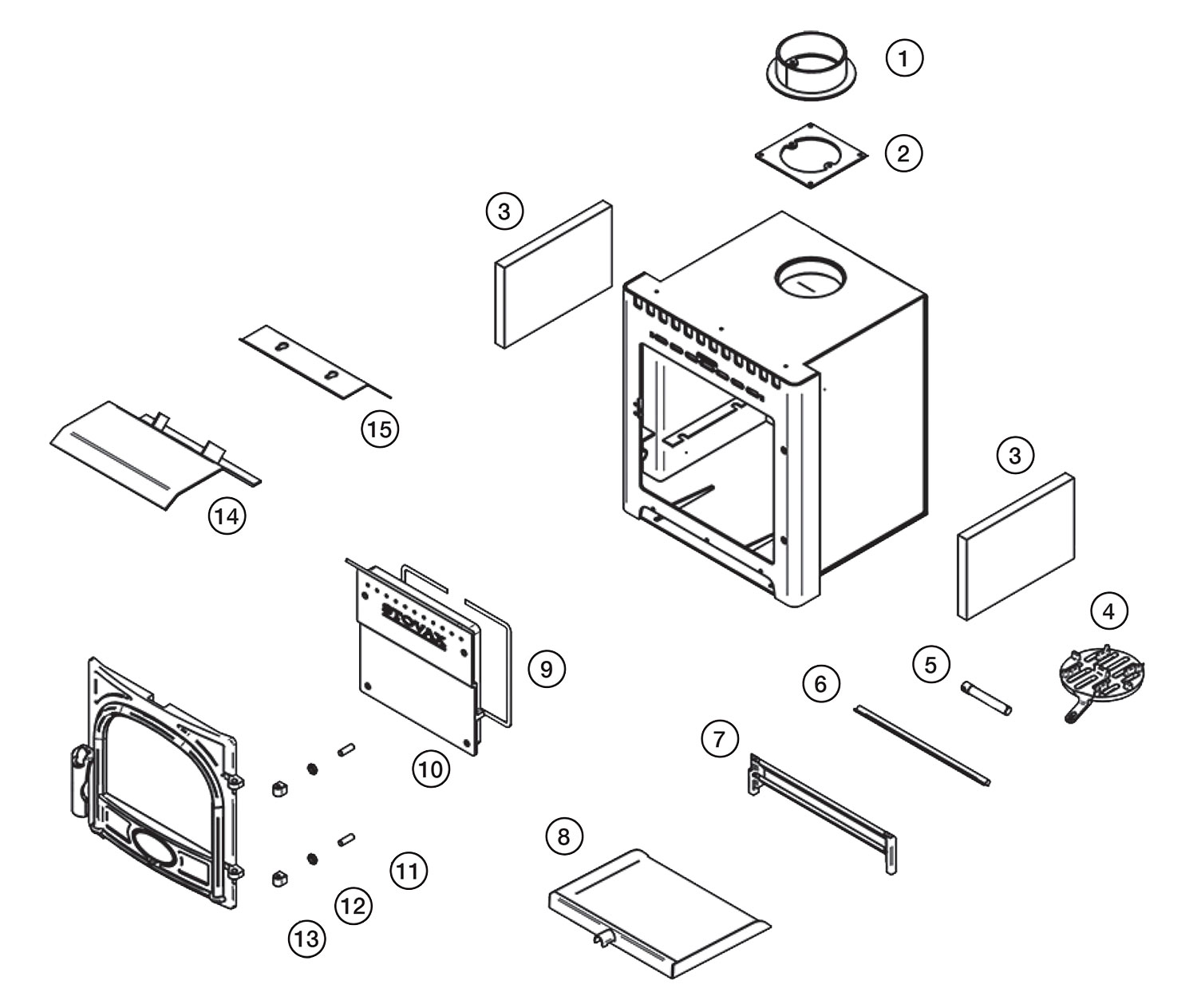

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SS14 | Stockton Mk1 3/4/5/6 5inch Flue Adapter | Available to Order £30.25 | |||
| 2 | ME600628 | Stockton 7/8 Inset Mk2 Flue Flange
This part will soon be obsolete |
In Stock £31.25 | |||
| 3 | CE7867 | Stockton 7/8 Inset Mk2 Side Firebrick Dimensions: 300 x 195 x 25mm (w x h x d)
| In Stock £26.08 | |||
| 4 | CA7663 | Stockton 7/8 Inset Mk2 Centre Grate
This part will soon be obsolete |
In Stock £28.25 | |||
| 5 | ME600650 | Stockton 3/4/5/6/7/8/11 MF Mk2 Riddling Bar | In Stock £38.80 | |||
| 6 | 5703 | 10mm Black Rope P-Seal - 750mm Pack Mid Door Seal
| In Stock £25.00 | |||
| 7 | CA7685 | Stockton/View 7 Log Guard | In Stock £35.24 | |||
| 8 | MEC9121 | Stockton 7 Inset Mk2 Ashpan
This part will soon be obsolete |
In Stock £31.00 | |||
| 9 | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £17.30 | |||
| 10 | S7.60 | Stockton/View 7 Inset Cleanburn Chamber | In Stock £133.07 | |||
| 11 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 12 | SM21 | M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.78 | |||
| 13 | SM10 | Stockton Hinge Block | In Stock £19.09 | |||
| 14 | S7.70CE | Stockton/View 7 Inset Lower Baffle Plate | In Stock £79.64 | |||
| 15 | S7.74 | Stockton/View 7 Inset Upper Baffle Plate | In Stock £194.24 |
Drawing: PR9411-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

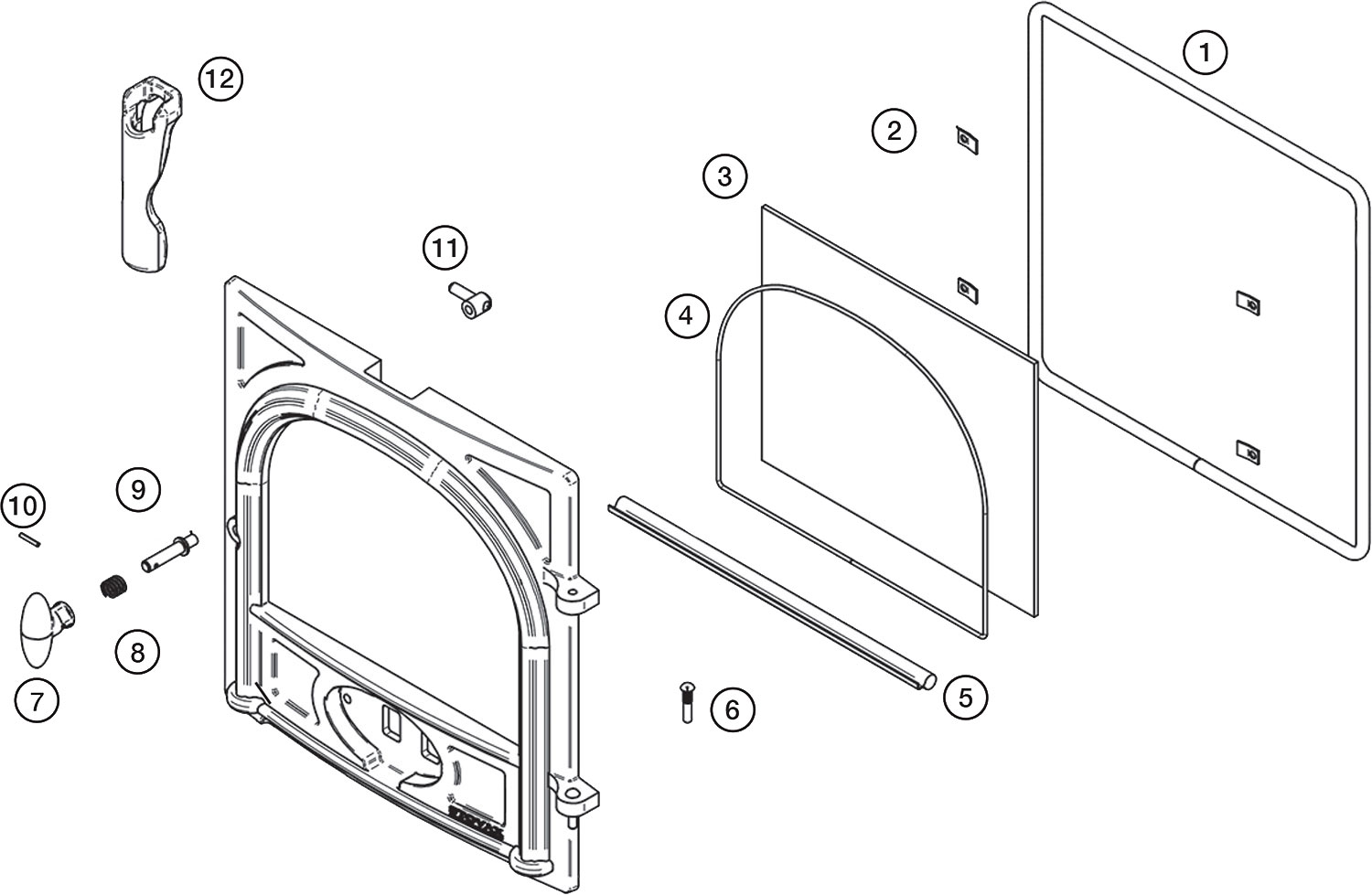

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 | 13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £63.25 | |||
| 2 | RA502594 | County/Stockton Mk2 Glass Clip | In Stock £1.50 | |||
| 2a | SM29 | M5 x 8mm Button Head Screw - Single Screw Glass Clip Screws
| In Stock £0.49 | |||
| 3 | CE7027 | Stockton 7 Door Glass Dimensions: 322 x 257mm (w x h)
| In Stock £47.46 | |||
| 4 | 4975 | 3mm Glass Rope Seal with Adhesive - 2m Pack Glass Seal
| In Stock £17.40 | |||
| 5 | 5703 | 10mm Black Rope P-Seal - 750mm Pack Mid Door Seal
| In Stock £25.00 | |||
| 6 | SM20 | Stockton Door Hinge Pin | In Stock £2.10 | |||
| 7 | MEC9021 | Stockton Mk2 Complete Door Handle Assembly Including parts 8, 9 & 11
| In Stock £84.08 | |||
| 8 | FA9017 | Airwash Spinner Spring | In Stock £3.16 | |||
| 9 | ME600647 | Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | In Stock £20.93 | |||
| 10 | YM-F00004 | 3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.55 | |||
| 11 | MEC9020 | Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £15.49 | |||
| 12 | CA7677 | Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £25.64 |
Drawing: PR9308-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST7NMFFT1 ST7NMFFT1BL ST7NMFFT1BR ST7NMFFT1GR
DIMENSIONS:
489 x 555 x 495mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
