Stockton 7 Inset Convector Low Canopy Stove Mk1
7125C
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 7149 |
|
Stockton 7 Inset Canopy | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | 7148 |
|
Stockton 7 Inset Flat Top | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SM67 |
|
Stockton 7/8 Inset Mk1 Flue Adapter | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | SM75 |  |
Inset Spacer | Available to Order £12.85 | ||
| 5 | SL24 |
|
Stockton 7/8 Inset/11/ County Mk1 Side Firebrick Dimensions: 195x300x25mm
| In Stock £29.26 | ||
| 6 | ME7461 |
|
Stockton Milner/7 Inset Mk1 Ashlip | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | N/A |
|
This part is not currently available. | |||
| 8 | SM31 |
|
Stockton 7/8 Inset Mk1 Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10+28 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 990mm+910mm length required.
| In Stock £15.00 | ||
| 11 | S7.60 |
|
Stockton/View 7 Inset Cleanburn Chamber | Available to Order £113.00 | ||
| 12 | SMN37 |
|
Stockton 3/4/5/6/7/8/11/CL3/CL5/CL8 Centre Grate | In Stock £29.26 | ||
| 13 | S7.61 |
|
Stockton/View 7 Inset Main Grate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | SM73 |
|
Stockton 7 Inset Mk1 Ashpan | In Stock £33.00 | ||
| 15 | SM55 |
|
Ashpan Tool | In Stock £32.50 | ||
| 16 | CA7685 |
|
Stockton/View 7 Log Guard | In Stock £31.75 | ||
| 17 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | Available to Order £10.70 | ||
| 18 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 19 | SM10 |
|
Stockton Hinge Block | Available to Order £17.20 | ||
| 20 | MEC9176 |
|
Stockton 7 Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 22 | ST7DS |  |
Stockton 7 Mk1 Mid Door Seal Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 23 | S5.34 |  |
Stockton 5/7 Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 24 | S7.35 |  |
Stockton 7 Mk1 Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 25 | SM63 |
|
Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 26 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt | In Stock £2.05 | ||
| 27 | SS30 |
|
Stockton 5/6/7 Airwash Slider
This part will soon be obsolete |
In Stock £53.75 | ||
| 28 | N/A |
|
See part 10
| This part is not currently available. | ||
| 29 | SM72 |
|
Stockton 7 Inset Mk1 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 30 | SM71 |  |
Stockton 7 Inset Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 31 | S7.70CE |
|
Stockton/View 7 Inset Lower Baffle Plate | In Stock £71.75 | ||
| 32 | S7.74 |
|
Stockton/View 7 Inset Upper Baffle Plate | In Stock £175.00 | ||
| 33 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Drawing: PR8759-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

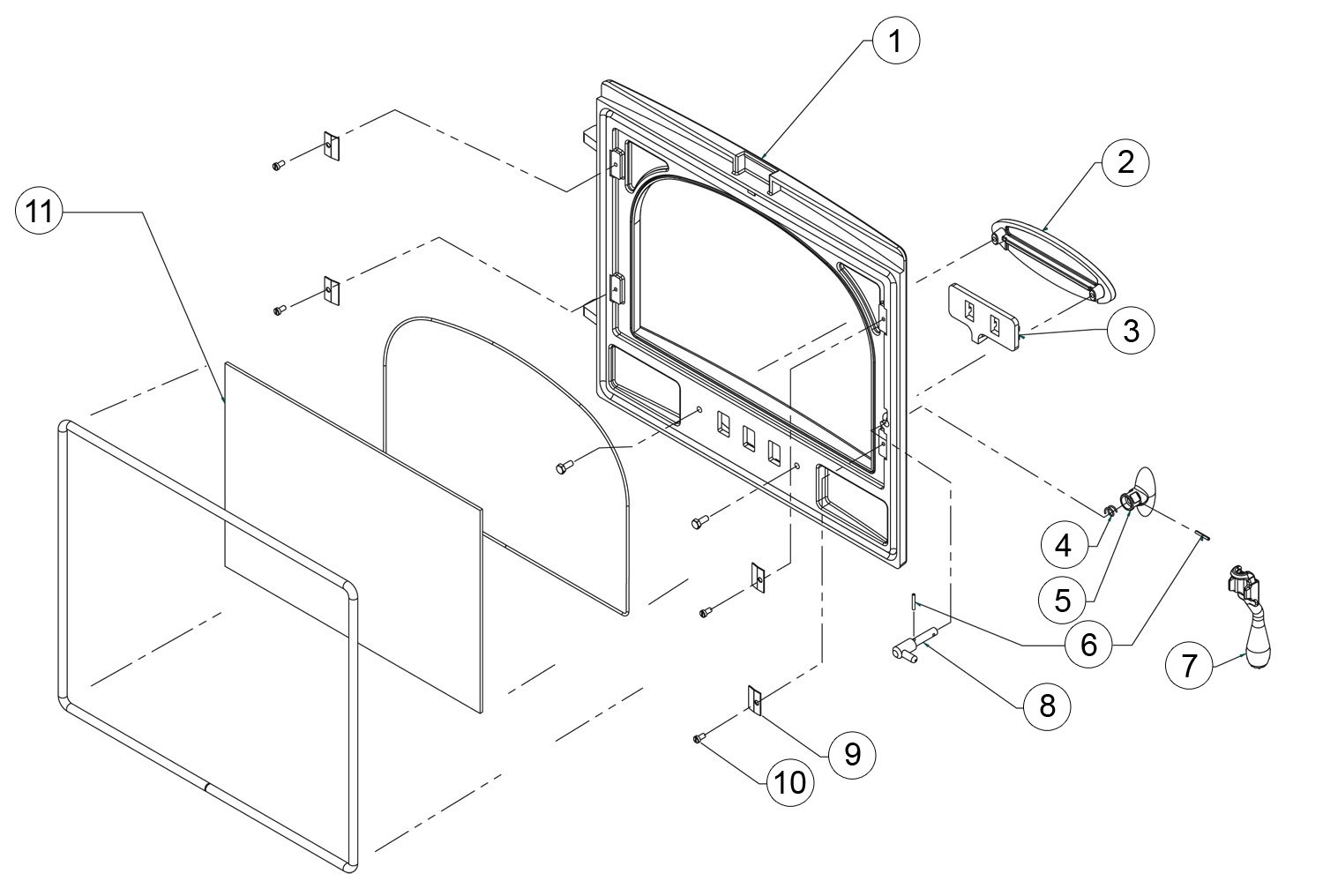

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | N/A |
|
For Complete Door Assembly see Main Assembly page. For MK2 door spares see Stockton 7 MK2 Door Assembly
| This part is not currently available. | ||
| 2 | SS3 |
|
Stockton 5/6/7 Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 5 | SM7COMP |
|
Stockton Mk1 Complete Door Handle Assembly Assembly including parts 4, 5, 6 and 8. Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 7 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool Supersedes original Mk1 Single Door Tool (SM23)
| In Stock £19.85 | ||
| 9 | SM16 |  |
Stockton Glass Clip | Available to Order £1.96 | ||
| 10 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | ||
| 11 | CE7027 |
|
Stockton 7 Door Glass | Available to Order £42.76 | ||
| SM31 |
|
Stockton 7/8 Inset Mk1 Air Control Slider from serial No. FST 00000 and BST 00000 onwards
| This part is now obsolete and can no longer be ordered as a spare. | |||
| SM32 | |
Stockton/View Mk2 CE Secondary Air Slider Bush from serial No. FST 00000 and BST 00000 onwards
| This part is now obsolete and can no longer be ordered as a spare. | |||
| ST7DS | |
Stockton 7 Mk1 Mid Door Seal Bracket | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £26.75 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £15.10 | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7125C
DIMENSIONS:
489 x 555 x 495mm (w x h x d)
