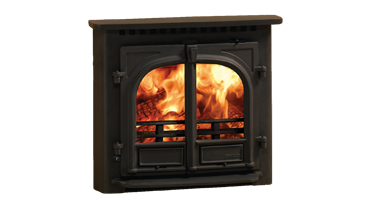

Mk1 Stockton 8 Inset Convector Flat Top Multi Fuel Stove
7126F 7126FBL 7126FBR 7126FGR
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM67 |
|
Stockton 7/8 Inset Mk1 Flue Adapter | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | SM75 |  |
Inset Spacer | Available to Order £12.85 | ||
| 3 | SL24 |
|
Stockton 7/8 Inset/11/ County Mk1 Side Firebrick Dimensions: 300x195x25mm
| Available to Order £29.26 | ||
| 4 | ME7481 |
|
Stockton 8 Inset Ashlip | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | N/A Assembly |
|
Part of the carcass
| This part cannot be ordered individually and is sold as part of an assembly. | ||
| 6 | SM31 |
|
Stockton 7/8 Inset Mk1 Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1250mm length required.
| In Stock £15.00 | ||
| 9 | SM60 |
|
Stockton 8 Inset Cleanburn Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | SMN37 |
|
Stockton 3/4/5/6/7/8/11/CL3/CL5/CL8 Centre Grate | Available to Order £29.26 | ||
| 11 | SM61 |
|
Stockton 8 Inset Main Grate
This part will soon be obsolete |
In Stock £219.00 | ||
| 12 | SM68 |
|
Stockton 8 Inset Mk1 Ashpan | In Stock £33.00 | ||
| 13 | SM55 |
|
Ashpan Tool | In Stock £32.50 | ||
| 14 | ST8DDDS |  |
Stockton 8 Double Door Mid Door Seal Brackets | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | CA7682 |
|
Stockton/View 8/5/CL8 Log Guard | In Stock £36.25 | ||
| 16 | ST82DR |
|
Stockton 8 Mk1 Double Door Frame Assembly without Glass | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 18 | SM10 |
|
Stockton Hinge Block | In Stock £17.20 | ||
| 19 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 20 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 21 | SM63 |
|
Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | SM34 |
|
Stockton 8 Inset Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 23 | SM35 |
|
Stockton 8 Inset Mk1 Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 24 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt | This part is now obsolete and can no longer be ordered as a spare. | ||
| 25 | SM2.30 |
|
Stockton 8 Mk1/5 Wide Double Door Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 26 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1170mm length required.
| In Stock £15.00 | ||
| 27 | SM2.11 |
|
Stockton 8 Mk1 Double Door Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 28 | SM12 |
|
Stockton 8 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 29 | SM70CE |
|
Stockton 8 Inset Mk1 Lower Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 30 | SM74 |
|
Stockton 8 Inset Upper Baffle Plate | N/A | ||
| 31 | SM40 |
|
Stockton 8 Inset/11 Mk1 Door Catch Block | This part is now obsolete and can no longer be ordered as a spare. | ||
| 32 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 33 | 7150 |
|
Stockton 8 Inset Flat Top | This part is now obsolete and can no longer be ordered as a spare. | ||
| 34 | 7151 |
|
Stockton 8 Inset Canopy | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR8773-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM2.23 |  |
Stockton Mk1 Double Door Tool
This part will soon be obsolete |
In Stock £16.80 | ||
| 2 | SM2.3RH |
|
Stockton 5 Wide/8 Right Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | N/A |
|
This part is not currently available. | |||
| 4 | SM2.3 |
|
Stockton 8/5 Wide Left Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece | In Stock £40.25 | ||
| 7 | SM16 |  |
Stockton Glass Clip | In Stock £1.96 | ||
| 8 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | ||
| 9 | SM2.16 |
|
Stockton 8 Mk1 Long Glass Clip | In Stock £44.50 | ||
| 10 | N/A |
|
This part is not currently available. | |||
| 11 | SM2.17 |  |
Stockton 8 Mk1 Door Spindle and Catch Assembly Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | SM2.7 |  |
Stockton 5 Wide/8/11/14 Door Knob | In Stock £14.70 | ||
| 13 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 14 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £26.75 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £15.10 | |||
| 4951 |
|
10mm x 2mm Black Insulation Tape Seal - 2m Pack | Available to Order £18.00 | |||
Drawing: PR8970
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7126F 7126FBL 7126FBR 7126FGR
DIMENSIONS:
627 x 570 x 514mm (w x h x d)
