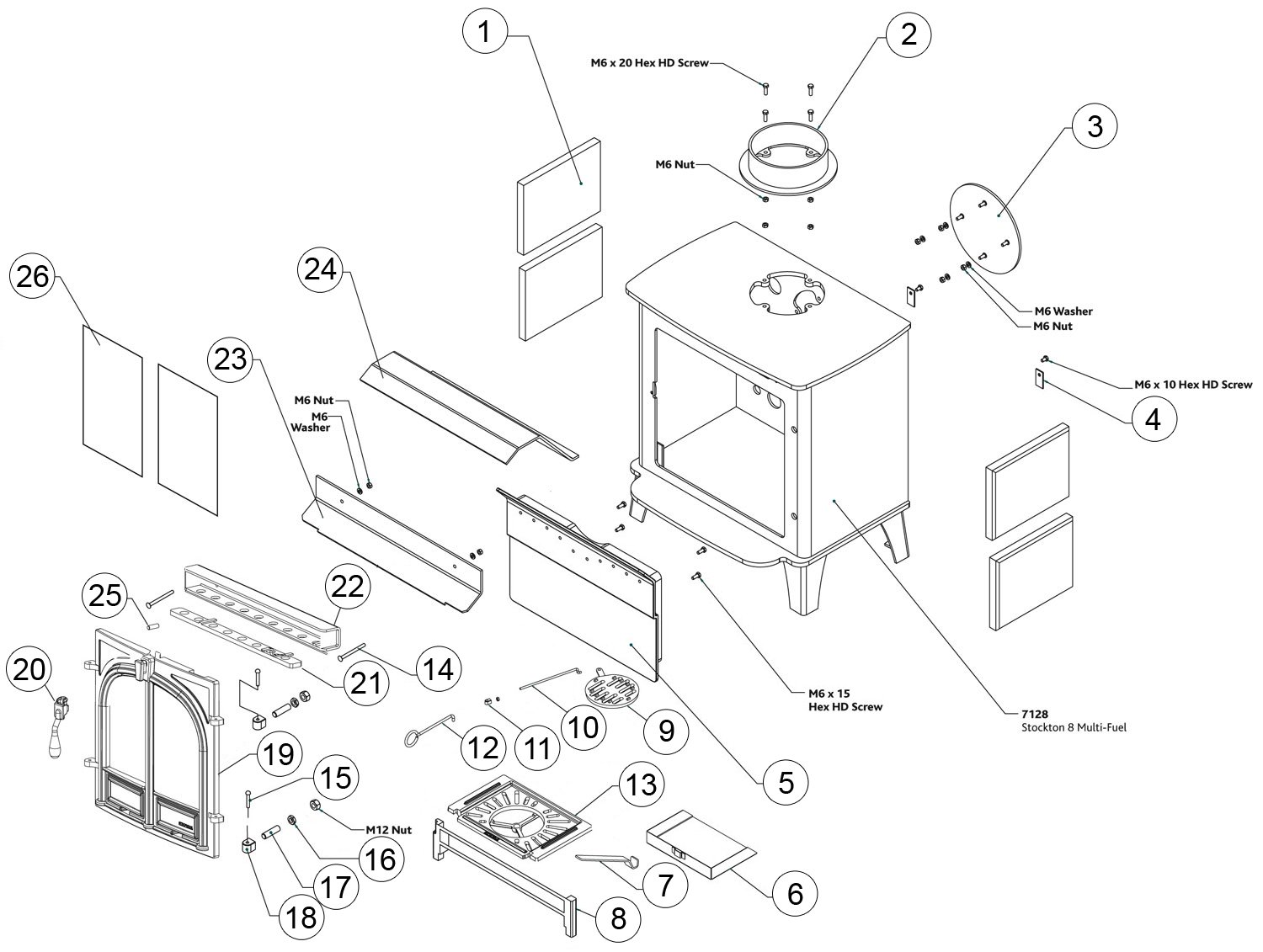

Mk1 Stockton 8 Multi Fuel Stove – Launched 2007 – Discontinued, limited parts available
7128 7128BL 7128BR 7128GR
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM24CE |
|
Stockton 6/8 Mk1 Side Firebrick Dimensions: 260 x 110 x 25mm (w x h x d)
|
In Stock
£16.50 |
||
| 2 | SM14 |
|
Stockton 7/8/11/14 HB Boiler Mk1 6" Flue Adapter | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | M06NUTO |
|
M6 Nut - Single Nut |
In Stock
£0.50 |
||
| 2 | M0620HHS |
|
M6 x 20mm Hex Head Screw - Single Screw |
In Stock
£0.79 |
||
| 3 | SM13 |
|
Stockton 7/8/11/14 HB/View 8/CL8 Mk1 6in Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | M06NUTO |
|
M6 Nut - Single Nut |
In Stock
£0.50 |
||
| 3 | M06WASHPEN |
|
M6 Penny Washer - Single Washer
This part will soon be obsolete |
In Stock
£1.06 |
||
| 4 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5a | SM27CE |
|
Stockton 8/5/View 8 Wide Cleanburn Chamber from serial No. FST 00000 and BST 00000 onwards
|
In Stock
£173.00 |
||
| 5c | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
|
In Stock
£16.00 |
||
| 5d | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw Cleanburn Chamber Screw
|
In Stock
£0.79 |
||
| 6 | SL28 |  |
Stockton 8/11 MF Mk1 Ashpan |
Available to Order
£35.00 |
||
| 7 | SM55 |
|
Stockton Ashpan Tool |
In Stock
£32.50 |
||
| 8 | CA7682 |
|
County/Stockton/View 8/5/CL8 Log Guard from serial No. FST 00000 and BST 00000 onwards
|
In Stock
£36.25 |
||
| 9 | SMN37 |
|
Stockton/CL/County Centre Grate |
In Stock
£29.26 |
||
| 10 | SMN35 |
|
Stockton 3/4/6/8 Mk1 Riddling Rod |
In Stock
£53.75 |
||
| 11 | SMN34 |  |
Stockton 3/4/6/8/Milner Mk1 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | SM63 |
|
Stockton 3/4/5/6/7/8/Milner Mk1 CE Riddling Tool from serial No. FST 00000 and BST 00000 onwards
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | SM64CE |
|
Stockton/View 8/CL8 MF Main Grate
This part will soon be obsolete |
In Stock
£149.00 |
||
| 14 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt
This part will soon be obsolete |
In Stock
£2.05 |
||
| 15 | SM20 |
|
Stockton Door Hinge Pin |
In Stock
£1.90 |
||
| 16 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut |
In Stock
£1.60 |
||
| 17 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud |
In Stock
£10.70 |
||
| 18 | SM10 |
|
Stockton Hinge Block |
In Stock
£17.20 |
||
| 19 | ST82DR |
|
Stockton 8 Mk1 Double Door Frame Assembly without Glass | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | SM23 |
|
Stockton Mk1 Single Door Tool | This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | SM2.30 |
|
Stockton 8 Mk1/5 Wide Double Door Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | SM2.11 |
|
Stockton 8 Mk1 Double Door Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 23 | SM12 |
|
Stockton 8 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 24 | SM26 |
|
Stockton/View 8/CL8 Baffle Plate |
In Stock
£112.00 |
||
| 25 | SM2.40 |  |
Stockton 8 Mk1 Double Door Catch | This part is now obsolete and can no longer be ordered as a spare. | ||
| 26 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece |
In Stock
£40.25 |
||
| 4951 |
|
10mm x 2mm Black Insulation Tape Seal - 2m Pack |
In Stock
£19.20 |
|||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

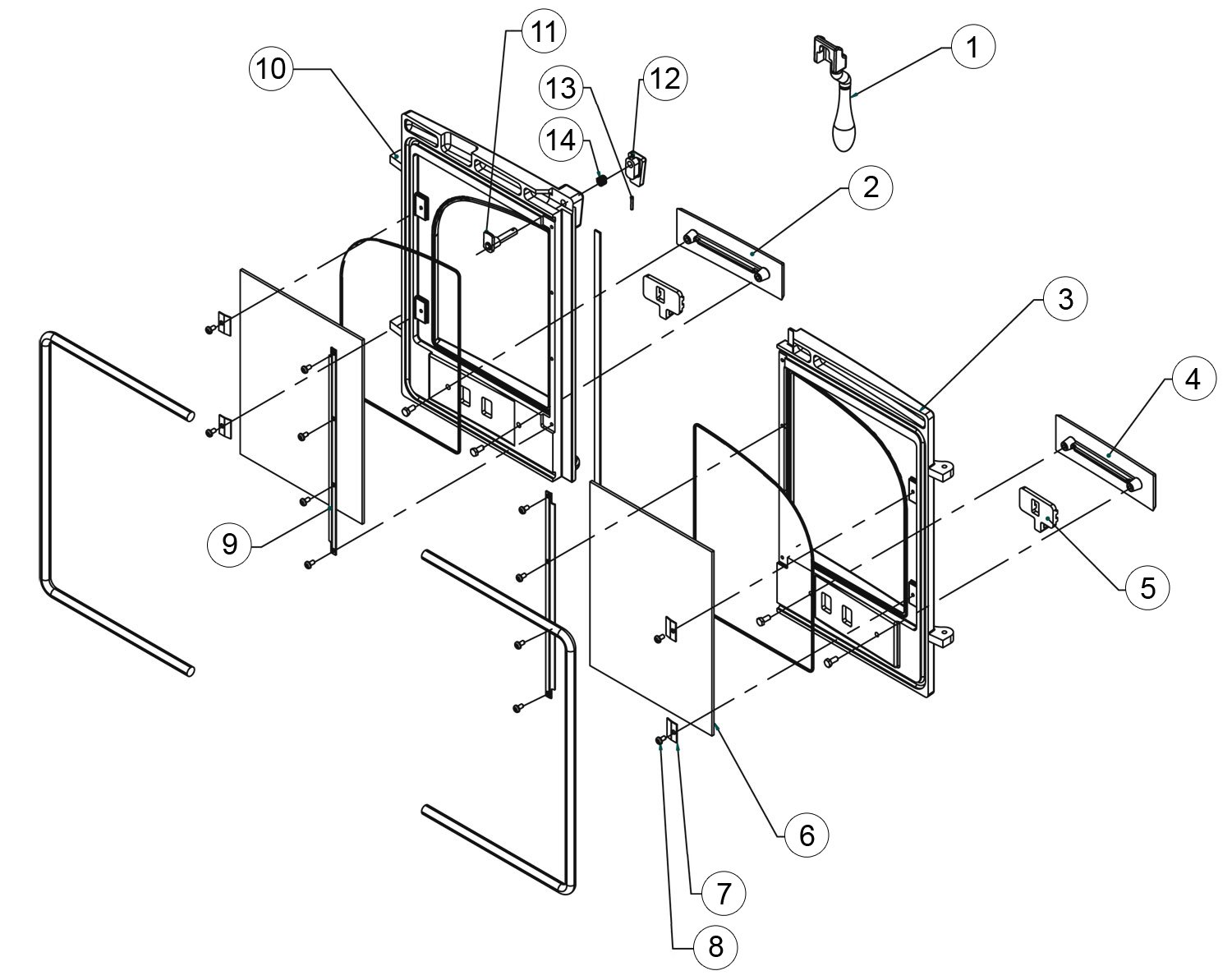

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM2.23 |  |
Stockton Mk1 Double Door Tool
This part will soon be obsolete |
In Stock
£16.80 |
||
| 2 | SM2.3RH |
|
Stockton 5 Wide/8 Right Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | N/A |
|
For Complete Door Frame Assembly see Main Assembly page.
| This part is not currently available. | ||
| 4 | SM2.3 |
|
Stockton 8/5 Wide Left Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece Dimensions: 186 x 275mm (w x h)
|
In Stock
£40.25 |
||
| 7 | SM16 |  |
Stockton Glass Clip |
In Stock
£1.96 |
||
| 8 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw |
In Stock
£0.49 |
||
| 9 | SM2.16 |
|
Stockton 8 Mk1 Long Glass Clip |
In Stock
£44.50 |
||
| 10 | N/A |
|
For Complete Door Frame Assembly see Main Assembly page.
| This part is not currently available. | ||
| 11 | SM2.17 |  |
Stockton 8 Mk1 Door Spindle and Catch Assembly Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | SM2.7 |  |
Stockton 5 Wide/8/11/14 Door Knob
This part will soon be obsolete |
In Stock
£14.70 |
||
| 11+12 | SM2.7COMP |
|
Stockton 8 Mk1 Door Handle Assembly Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin |
In Stock
£0.49 |
||
| 14 | FA9017 |
|
Airwash Spinner Spring |
In Stock
£3.16 |
||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack Door Seal
|
In Stock
£28.50 |
|||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack Glass Seal
|
In Stock
£16.10 |
|||
| 4951 |
|
10mm x 2mm Black Insulation Tape Seal - 2m Pack Vertical Mid Door Seal
|
In Stock
£19.20 |
|||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7128 7128BL 7128BR 7128GR
DIMENSIONS:
603 x 620 x 411mm (w x h x d)
