Mk1 Stockton 8 Slimline Double Door Stove
7114
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM24SL |
|
Stockton 8 Slimline Mk1 Side Firebrick Dimensions: 182x182x25mm
| In Stock £13.00 | ||
| 2 | SM14 |
|
Stockton 7/8/11/14 HB Boiler Mk1 6" Flue Adapter | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SM13 |
|
Stockton 7/8/11/14 HB/View 8/CL8 Mk1 6in Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SM2.40 |  |
Stockton 8 Mk1 Double Door Catch | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | SM27CE |
|
Stockton 8/5/View 8 Wide Cleanburn Chamber | In Stock £173.00 | ||
| 7 | CA7682 |
|
Stockton/View 8/5/CL8 Log Guard | In Stock £36.25 | ||
| 8 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | In Stock £10.70 | ||
| 9 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 10 | SM10 |
|
Stockton Hinge Block | In Stock £17.20 | ||
| 11 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece Dimensions: 186x275x4mm
| In Stock £40.25 | ||
| 12 | SM2.23 |  |
Stockton Mk1 Double Door Tool
This part will soon be obsolete |
In Stock £16.80 | ||
| 13 | ST82DR |
|
Stockton 8 Mk1 Double Door Frame Assembly without Glass | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 15 | SM2.30 |
|
Stockton 8 Mk1/5 Wide Double Door Airwash Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | SM19 |
|
M6 x 70mm Coachbolt - Single Bolt | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | SM2.11 |
|
Stockton 8 Mk1 Double Door Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | SM12 |
|
Stockton 8 Mk1 Airwash Deflector Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | SM26SL |
|
Stockton 8 Slimline Mk2 Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 21 | 7111SLCE |
|
Stockton 8 Slimline Non Riddling Coal Kit Pre and CE | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR8774
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM2.23 | |
Stockton Mk1 Double Door Tool
This part will soon be obsolete |
In Stock £16.80 | ||
| 2 | SM2.3RH |
|
Stockton 5 Wide/8 Right Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | N/A |
|
This part is not currently available. | |||
| 4 | SM2.3 |
|
Stockton 8/5 Wide Left Hand Air Control Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | SS4 |  |
Stockton 5/6/7/8 Mk1 Air Control Slider Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | CE7018 |
|
Stockton 8/5 Wide Double Door Glass - Single Piece Dimensions: 186x275x4mm
| In Stock £40.25 | ||
| 7 | SM16 |  |
Stockton Glass Clip | In Stock £1.96 | ||
| 8 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | ||
| 9 | SM2.16 |
|
Stockton 8 Mk1 Long Glass Clip | In Stock £44.50 | ||
| 10 | N/A |
|
This part is not currently available. | |||
| 11 | SM2.17 |  |
Stockton 8 Mk1 Door Spindle and Catch Assembly Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | SM2.7 |  |
Stockton 5 Wide/8/11/14 Door Knob | In Stock £14.70 | ||
| 12+11 | SM2.7COMP |
|
Stockton 8 Mk1 Door Handle Assembly Only suitable for MK1 door frame
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 14 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £26.75 | |||
| 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £15.10 | |||
| 4951 |
|
10mm x 2mm Black Insulation Tape Seal - 2m Pack | Available to Order £18.00 | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

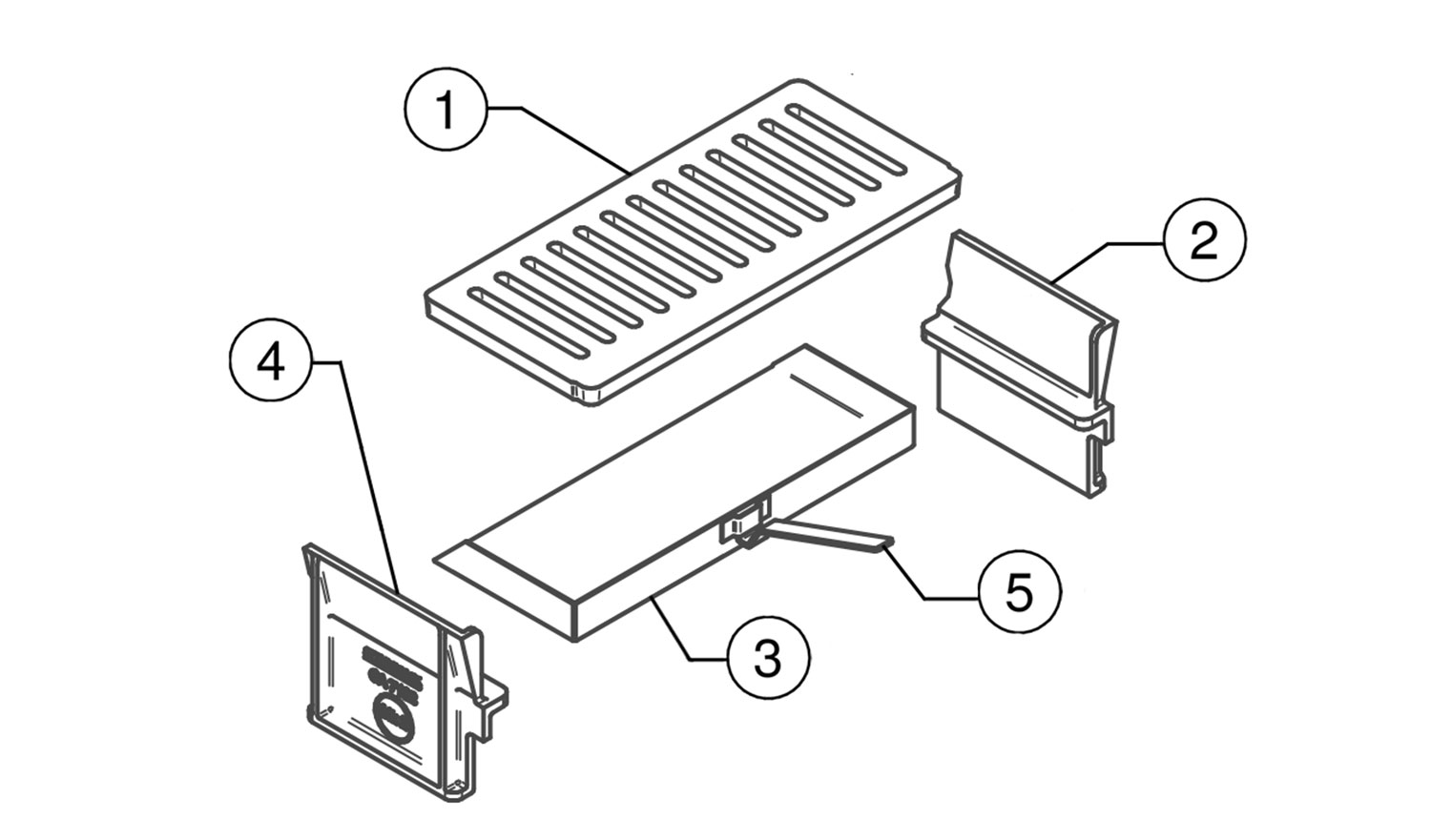

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM50SL |
|
Stockton 8 Slimline Cast Grate
This part will soon be obsolete |
In Stock £155.00 | ||
| 2 | SM80CE |
|
Stockton 5 Wide/ 8 Slimline Right Hand Side Grate Support
This part will soon be obsolete |
In Stock £66.76 | ||
| 3 | SM28SL |
|
Stockton 8 Slimline Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | SM81CE |
|
Stockton 8 Slimline/5 Wide Left Hand Side Grate Support
This part will soon be obsolete |
In Stock £62.00 | ||
| 5 | SM55 |
|
Ashpan Tool | In Stock £32.50 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
7114
DIMENSIONS:
603 x 589 x 338mm (w x h x d)
