Mk2 View 5 Midline Multi Fuel Stove
VW-5MIDMF1
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 |
|
Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £27.50 | ||
| 2 | CA7679 |
|
Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £33.50 | ||
| 3 | CE7814 |
|
View 5/CL5 MF Side Firebrick | Available to Order £30.25 | ||
| 4 | SMN37 |
|
Stockton/CL/County Centre Grate | Available to Order £29.26 | ||
| 5 | S5.53CE |
|
Stockton 5/View 5/CL5 CE Main Grate | In Stock £135.00 | ||
| 6 | MEC8793 |  |
Ashpan Tool | In Stock £78.00 | ||
| 7 | CA7664 |
|
View 5/CL5 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | MEC8788 |  |
Multifunction Tool | In Stock £50.26 | ||
| 9 | S5.27 |
|
Stockton/View 5/CL5 Cleanburn Chamber | In Stock £155.00 | ||
| 10 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 11 | ME600599 |
|
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | Available to Order £19.66 | ||
| 12 | S5.26 |
|
Stockton 5/View 5/CL5 Baffle Plate | In Stock £105.00 | ||

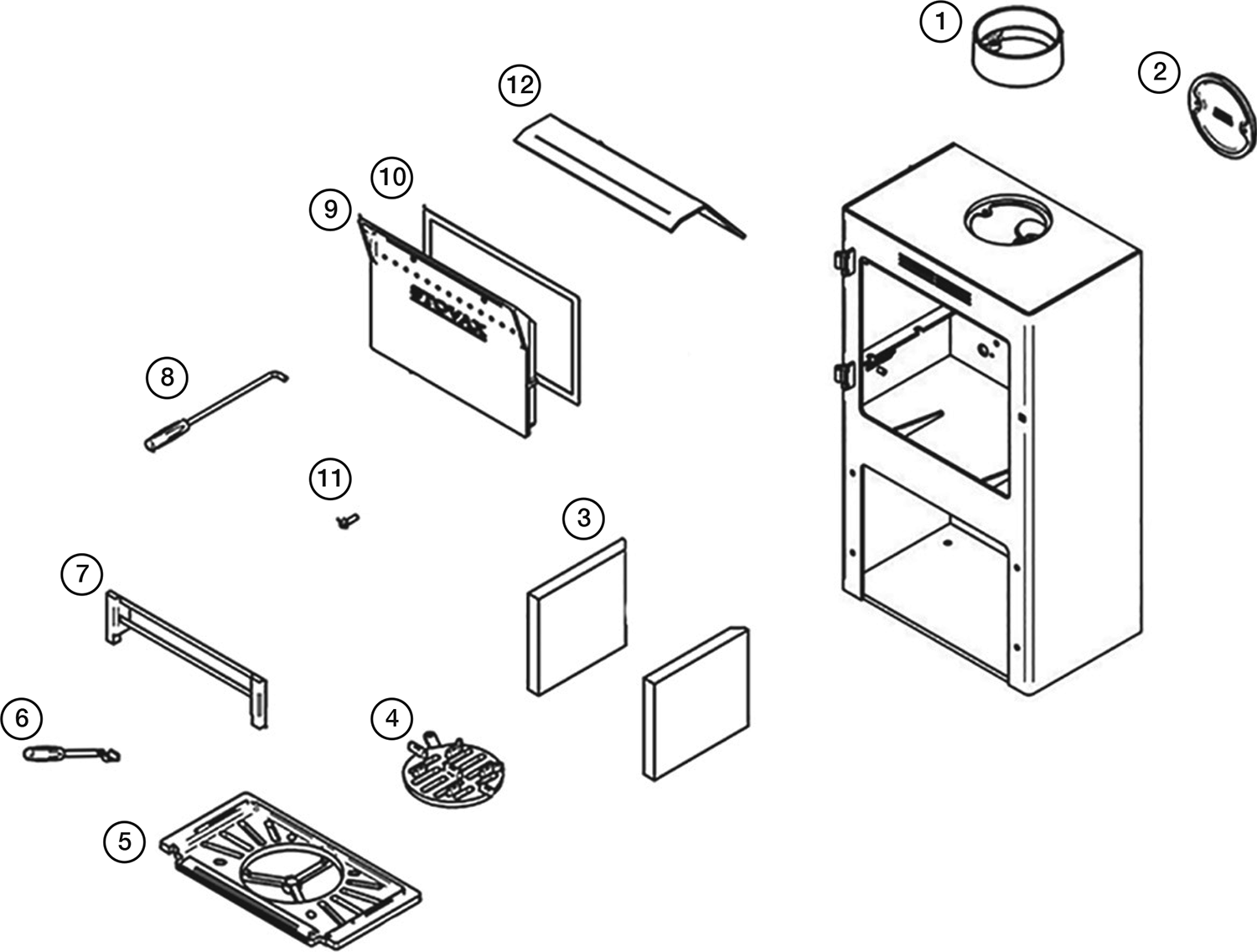

Drawing: PR10525
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC10622 |
|
View Mk2 Door Catch Slider
This part will soon be obsolete |
In Stock £119.00 | ||
| 2 | ME600422 |  |
View Door Spring
This part will soon be obsolete |
In Stock £2.26 | ||
| 3 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.17 | ||
| 4 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 5 | CE7702 |
|
View 5 Door Glass Dimensions: 350 x 333mm (w x h)
| In Stock £249.00 | ||
| 6 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Glass Seal
| In Stock £16.85 | ||
| 7 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £58.50 | ||
| 8 | ME600563 |
|
View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 |

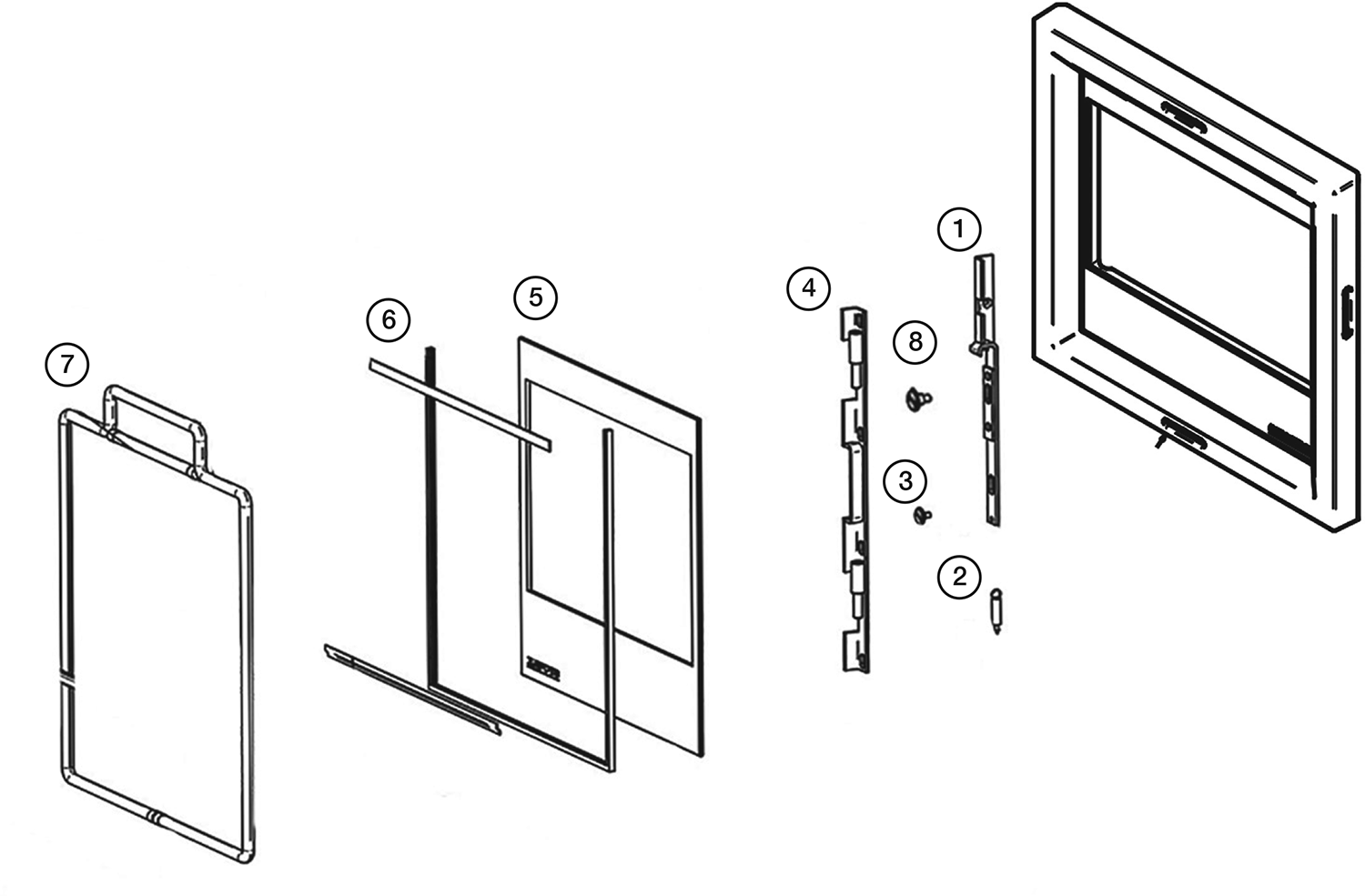

Drawing: PR10521
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VW-5MIDMF1
DIMENSIONS:
435 x 764 x 303mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
