Mk2 View 5 Midline Wood Burning Stove
VW-5MIDW1
Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | CA7680 | Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £27.50 | |||
2 | CA7679 | Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | In Stock £33.50 | |||
3 | CE7812 | View 5/CL5 WB CE Right Hand Side Firebrick | Available to Order £44.00 | |||
4 | SM55 | Ashpan Tool | In Stock £32.50 | |||
5 | CA7664 | View 5/CL5 Log Guard | In Stock £38.00 | |||
6 | MEC8788 | Multifunction Tool | In Stock £50.26 | |||
7 | ME600599 | View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | In Stock £19.66 | |||
8 | S5.27 | Stockton/View 5/CL5 Cleanburn Chamber | In Stock £155.00 | |||
9 | 4949 | 10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £15.00 | |||
10 | S5.26 | Stockton 5/View 5/CL5 Baffle Plate | In Stock £105.00 | |||
11 | CE7817 | View 5/CL5 WB CE Left Hand Side Firebrick | In Stock £44.00 |

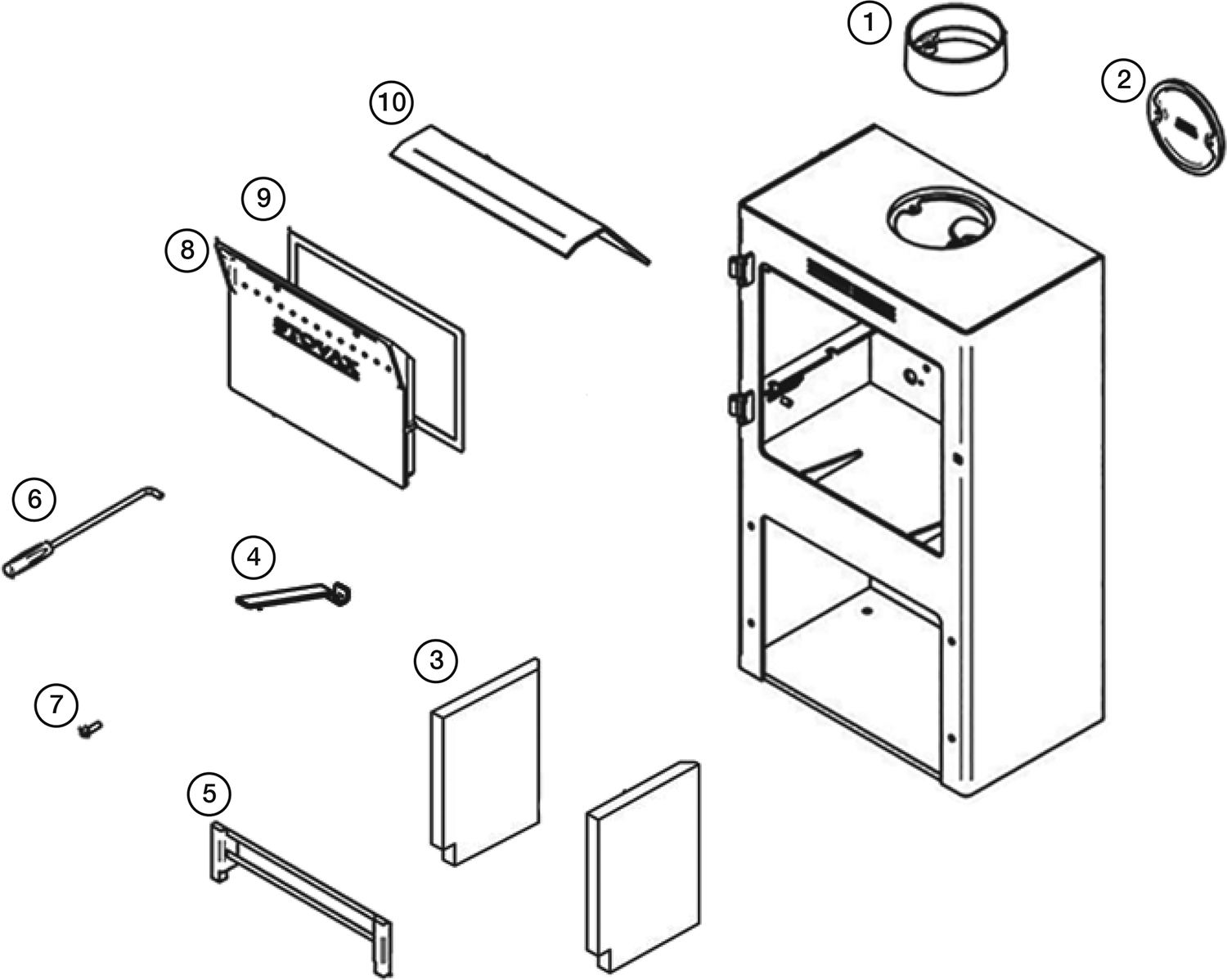

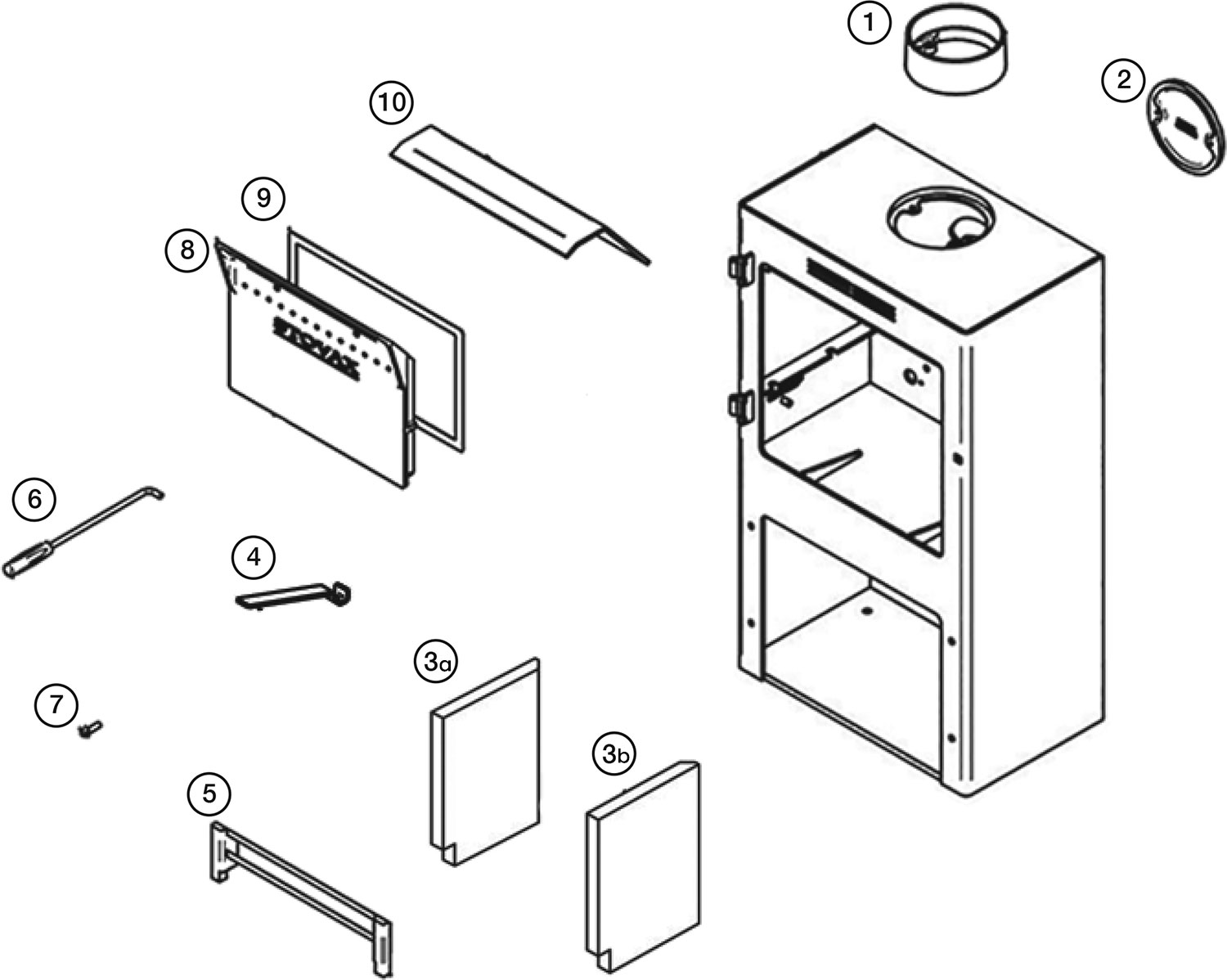

Drawing: PR10526
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | MEC10622 | View Mk2 Door Catch Slider
This part will soon be obsolete |
In Stock £119.00 | |||
2 | ME600422 | View Door Spring
This part will soon be obsolete |
In Stock £2.26 | |||
3 | FA9510 | CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | |||
4 | MEC9553 | View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | |||
5 | CE8098 | View 5 WB Door Glass | In Stock £159.00 | |||
6 | 4950 | 15 x 2mm Self Adhesive Tape Seal - 2m Pack Glass Seal
| In Stock £15.80 | |||
7 | 5700 | 13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £54.76 | |||
8 | ME600563 | View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 |

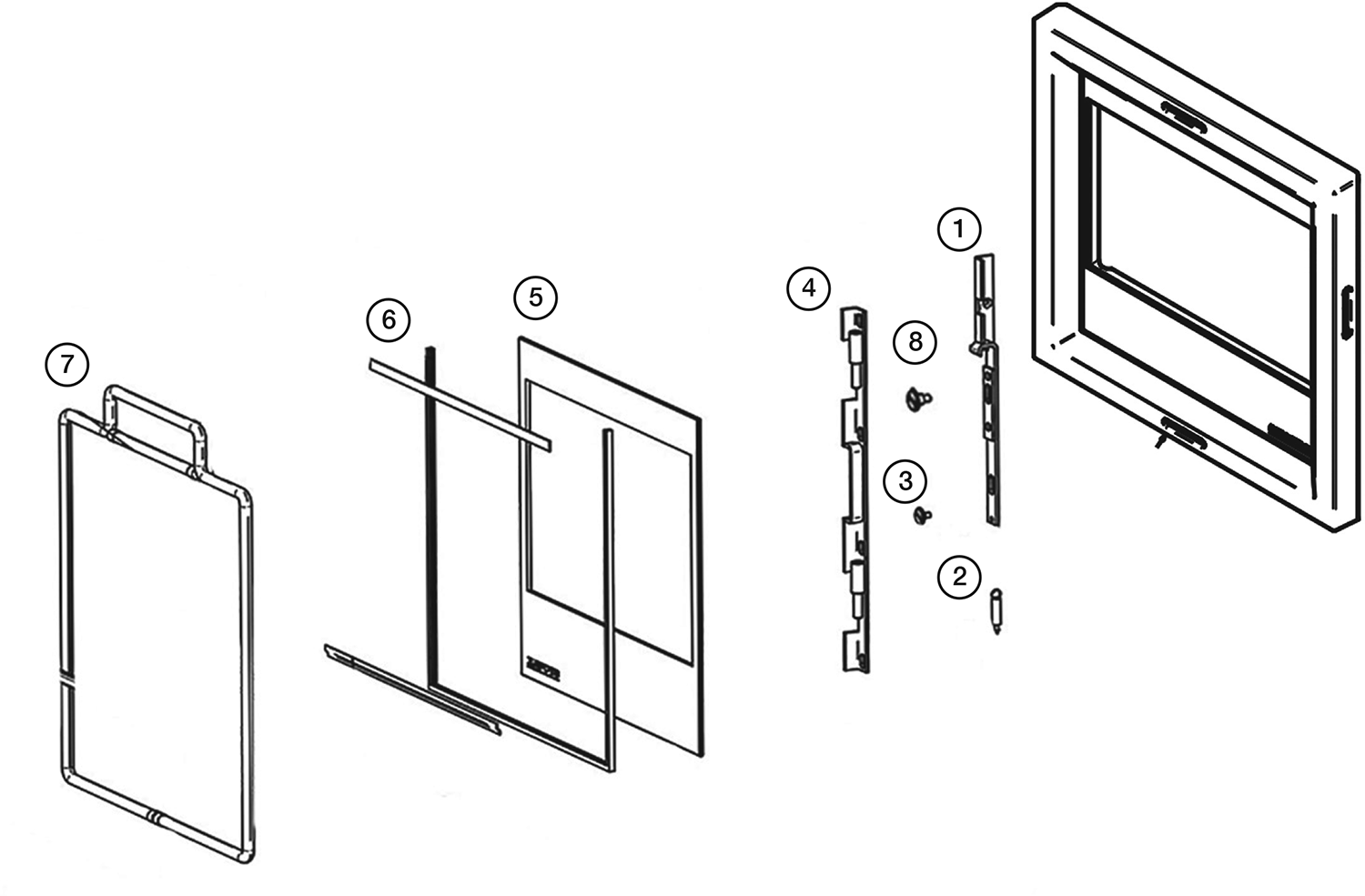

Drawing: PR10523
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VW-5MIDW1
DIMENSIONS:
435 x 764 x 303mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
