Mk1 View 5 Wood Burning Stove
VW-5W

Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | CA7668 | ![]() |
View 3/5/CL3/CL5 Mk1 5" Flue Adapter | This part is now obsolete and can no longer be ordered as a spare. | ||
2 | SS13 | ![]() |
Stockton 3/4/5/6/CL3/CL5 Mk1 Blanking Plate | In Stock £72.00 | ||
3 | SM15 | ![]() |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
4 | CE7812 | ![]() |
View 5/CL5 WB CE Right Hand Side Firebrick Dimensions: 220 x 315 x 25mm (w x h x d)
| In Stock £44.00 | ||
5 | MEC9143 | ![]() |
View 5 Mk1 Plinth | This part is now obsolete and can no longer be ordered as a spare. | ||
6 | CA7664 | ![]() |
View 5/CL5 Log Guard | In Stock £38.00 | ||
7 | MEC8788 | ![]() |
Multifunction Tool | In Stock £50.26 | ||
8 | MEC10625 | ![]() |
View 5 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
9 | S5.27 | ![]() |
Stockton/View 5/CL5 Cleanburn Chamber | In Stock £155.00 | ||
9 | M0615HHS | ![]() |
M6 x 15mm Hex Head Screw - Single Screw | In Stock £0.79 | ||
10 | S5.26 | ![]() |
Stockton 5/View 5/CL5 Baffle Plate | In Stock £105.00 | ||
11 | ME600599 | ![]() |
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | Available to Order £19.66 | ||
12 | CE7817 | ![]() |
View 5/CL5 WB CE Left Hand Side Firebrick Dimensions: 220 x 315 x 25mm (w x h x d)
| Available to Order £44.00 | ||
13 | N/A Carcass | ![]() |
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. |
Drawing: PR8690
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
---|---|---|---|---|---|---|
1 | CA7596 | ![]() |
View 5 Outer Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
2 | ME600422 | ![]() |
View Door Spring
This part will soon be obsolete |
In Stock £2.26 | ||
3 | MEC9553 | ![]() |
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
4 | CE7702 | ![]() |
View 5 Door Glass Dimensions: 333 x 350mm (w x h)
| Available to Order £249.00 | ||
5 | 4950 | ![]() |
15 x 2mm Self Adhesive Tape Seal - 2m Pack 340m length required.
| In Stock £16.85 | ||
6 | ME600523 | ![]() |
View 5/7 Mk1 Primary Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
7 | CA7628 | ![]() |
View 3/5/7 Primary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
8 | CA7612 | ![]() |
View 5 Glass Clamp Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
9 | N/A | ![]() |
Only used on View 8 Door.
| This part is not currently available. | ||
10 | 5700 | ![]() |
13mm Black Door Rope Seal with Adhesive - 2m Pack 1600m+175mm length required.
| In Stock £58.50 | ||
11 | 4950 | ![]() |
15 x 2mm Self Adhesive Tape Seal - 2m Pack 1345mm+335mm length required.
| In Stock £16.85 | ||
12 | CA7547 | ![]() |
View 3/5/7 Airwash Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
13 | ME600524 | ![]() |
View 5/7 Mk1 Airwash Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
14 | FA9510 | ![]() |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | ||
15 | ME600563 | ![]() |
View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 | ||
16 | MEC8641 | ![]() |
View Mk1 Door Catch Slider | This part is now obsolete and can no longer be ordered as a spare. |

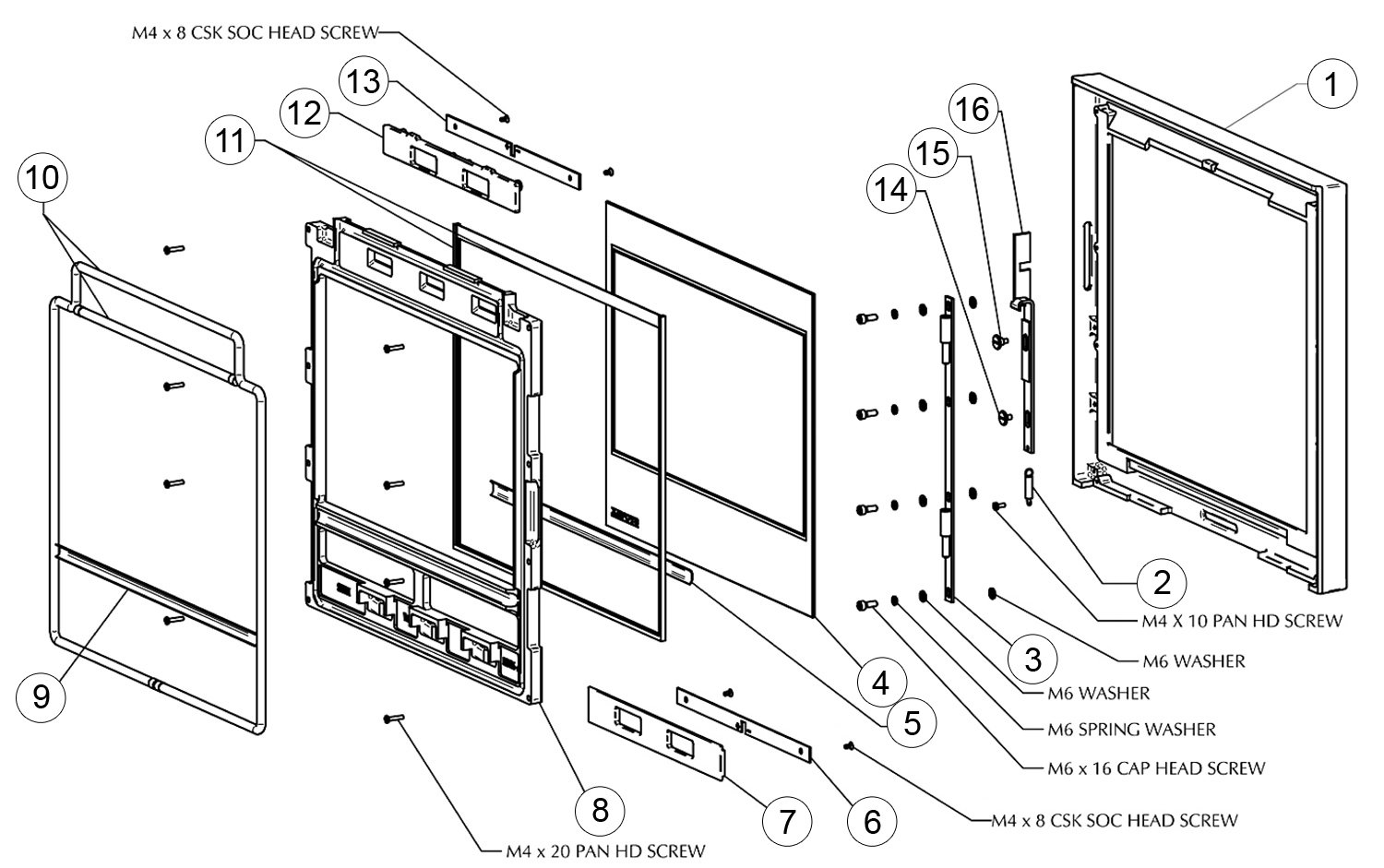

Drawing: PR8903
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VW-5W
DIMENSIONS:
435 x 518 x 303mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code RVAC011. Please note, you can only purchase paint through your local Stovax Retailer.
