Mk1 View 7 Inset Stove
VW-7NMF
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC8893 |
|
View 7 Mk1 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | S7.74 |
|
Stockton/View 7 Inset Upper Baffle Plate | In Stock £175.00 | ||
| 3 | S7.70CE |
|
Stockton/View 7 Inset Lower Baffle Plate | In Stock £71.75 | ||
| 4 | SM75 |  |
Inset Spacer | Available to Order £12.85 | ||
| 5 | ME600628 |
|
Stockton 7/8 Inset Mk2 Flue Flange
This part will soon be obsolete |
In Stock £31.25 | ||
| 6 | S7.60 |
|
Stockton/View 7 Inset Cleanburn Chamber | In Stock £113.00 | ||
| 7 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1390mm length required.
| In Stock £15.00 | ||
| 8 | CE7829 |
|
View 7 Side Firebrick Dimensions: 300x205x25mm
| In Stock £32.75 | ||
| 9 | MEC8908 |
|
View 7 Plinth | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | RA502571 |
|
View 7 Mk1 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | MEC8820 |
|
View 7 Mk1 Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | MEC8900 |
|
View 7 Riddling Rod
This part will soon be obsolete |
In Stock £85.25 | ||
| 13 | MEC8793 |  |
Ashpan Tool | In Stock £78.00 | ||
| 14 | CA7685 |
|
Stockton/View 7 Log Guard | Available to Order £31.75 | ||
| 15 | MEC8670 |
|
View 7 Mk1 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | MEC8788 |  |
Multifunction Tool | In Stock £50.26 | ||
| 17 | ME600502 |
|
View 7 Mk2 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | S7.61 |
|
Stockton/View 7 Inset Main Grate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | CA7663 |
|
Stockton 7/8 Inset Mk2 Centre Grate | In Stock £28.25 | ||
| 20 | ME600599 |
|
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | In Stock £19.66 | ||
| 21 | MEC8892 |
|
View 7 Top Plate
This part will soon be obsolete |
In Stock £95.95 | ||
| 22 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 23 | SS14 |
|
Stockton Mk1 3/4/5/6 5in Flue Adapter | Available to Order £27.25 | ||

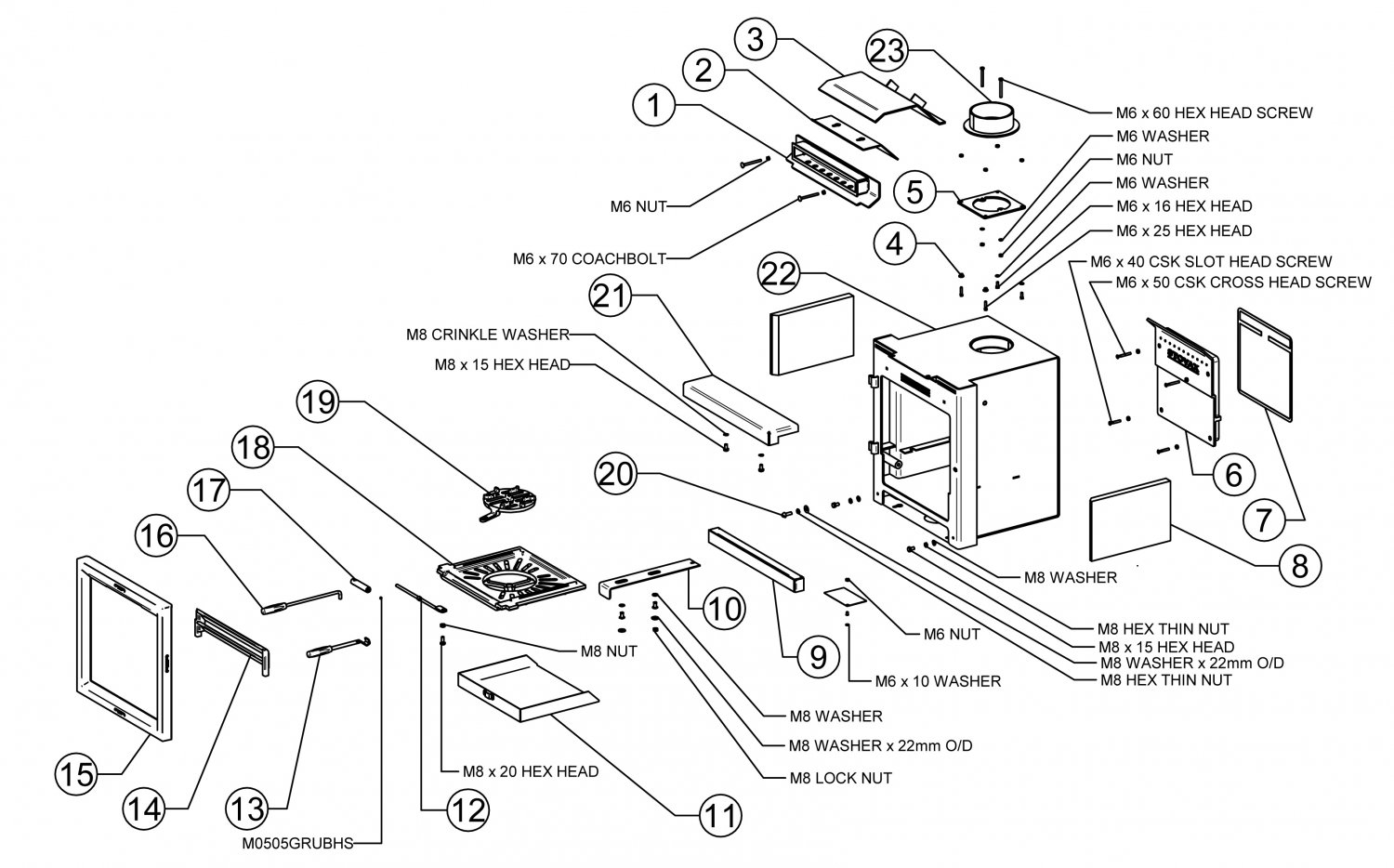

Drawing: PR9075-4
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7646 |
|
View 7 Outer Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | ME600422 |  |
View Door Spring
This part will soon be obsolete |
In Stock £2.26 | ||
| 3 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 4 | CE7740 |
|
View 7 Door Glass Dimensions: 404 x 368mm (w x h)
| In Stock £149.00 | ||
| 5 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack 390mm length required
| In Stock £15.80 | ||
| 6 | ME600523 |
|
View 5/7 Mk1 Primary Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | CA7628 |
|
View 3/5/7 Primary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CA7647 |
|
View 7 Glass Clamp Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | N/A |
|
Only Used On View 8 Door
| This part is not currently available. | ||
| 10 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack 1700mm+175mm length required.
| In Stock £54.76 | ||
| 11 | 4950 | |
15 x 2mm Self Adhesive Tape Seal - 2m Pack 1140mm+400mm length required.
| In Stock £15.80 | ||
| 12 | CA7547 |
|
View 3/5/7 Airwash Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | ME600524 |
|
View 5/7 Mk1 Airwash Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.16 | ||
| 15 | ME600563 |
|
View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 | ||
| 16 | MEC8641 |  |
View Mk1 Door Catch Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR8903-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VW-7NMF
DIMENSIONS:
489 x 574 x 456mm (w x h x d)
