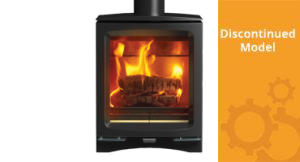

Vogue Midi Wood Burning Stove
VG-MID-W
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-MEC8251 |
|
Vision/Vogue 5in Flue Collar | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVN-ME600169 |
|
Vision/Vogue Midi Inner Top Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-ME600061 |
|
Vision/Vogue/Sheraton 5 Wide Eco Rear Blanking Plate | This part is for multi-fuel appliances only. | ||
| 4 | RA503845 |
|
Vision/Vogue/Sheraton 5 Eco/Chesterfield 5 Hinge Plate Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | MEC8433 |
|
Vision/Vogue Midi WB Complete Firebrick Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | ME601657 |
|
O Ring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | RVN-ME600409 |  |
Vision/Vogue O Ring
This part will soon be obsolete |
In Stock
Currently estimated to be available 14th July 2022 £0.95 |
||
| 9 | RA503920 |
|
Vision/Vogue Midi Air Control Main Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | ME601651 |
|
Vision/Vogue Air Control Top Hat | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | FA500035 |
|
M6 x 20mm Spring Plunger - Single Plunger
This part will soon be obsolete |
In Stock £25.25 | ||
| 12 | MEC8788 |  |
Multifunction Tool | In Stock £50.26 | ||
| 13 | MEC10655 |
|
Vogue Air Control Handle | In Stock £76.25 | ||
| 14 | ME601614 |
|
Defra Air Control Switch | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | MEC10546 |
|
Vision/Vision Midi WB Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | MEC10592 |
|
Vogue Midi Complete Door Assembly | In Stock £295.00 | ||
| 17 | ME601622 |
|
Vision/Vogue Midi Door Latch
This part will soon be obsolete |
In Stock £15.95 | ||
| 18 | MEC10682 |
|
Vision/Vogue/Sheraton 5 Eco/Chesterfield 5 Adjustable Door Hinge | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | VG-MID-CTU |
|
Vogue Midi Universal Cast Top Plate | In Stock £199.00 | ||
| 20 | CA7799 |
|
Vogue Midi Cast Top Plug
This part will soon be obsolete |
In Stock £57.76 | ||
| 21 | MEC10585 |
|
Vision/Vogue Midi WB Lower Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | RVN-MEC8510 |
|
Vision/Vogue Midi Upper Baffle Plate | In Stock £64.00 | ||
| 23 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 24 | RVN-ME600304 |
|
Baffle Support Spacer | In Stock £9.16 | ||
| M06NUTO |
|
M6 Nut - Single Nut | In Stock £0.50 | |||
| M0830HHS |
|
M8 x 30mm Hex Head Screw - Single Screw | This part is now obsolete and can no longer be ordered as a spare. | |||
| RVAC111 |  |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | |||
| M08NUTO |
|
M8 Nut - Single Nut | In Stock £1.50 | |||
Drawing: PR10674-3
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

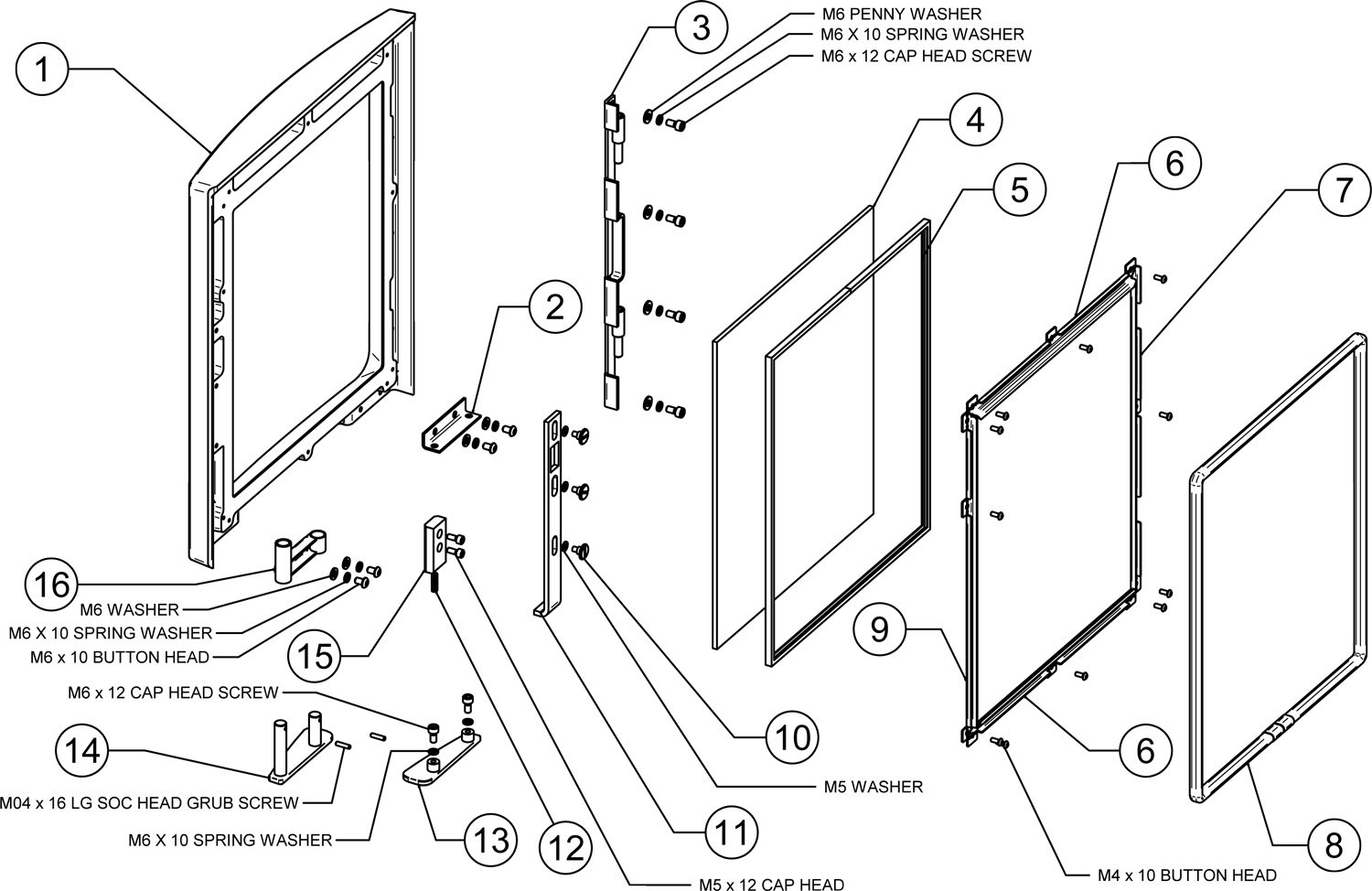

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7796 |
|
Vogue Midi Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RA503930 |
|
Vision/Vogue Eco Door Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | MEC10736 |
|
Sheraton/Chesterfield 5/Vision/Vogue Eco Hinge Plate | In Stock £57.00 | ||
| 4 | CE8191 |
|
Sheraton/Chesterfield 5/Vogue Midi Eco Door Glass Dimensions: 318 x 360 x 5mm (w x h x d)
| Available to Order £135.00 | ||
| 5 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack 1350mm length required.
| In Stock £16.85 | ||
| 6 | RA503934 |
|
Vogue Midi/Sheraton 5 Eco/Chesterfield 5 WB Upper and Lower Door Rope Channel | In Stock £24.53 | ||
| 7 | RA503935 |
|
Vogue Midi WB Left Hand Door Rope Channel
This part will soon be obsolete |
In Stock £14.86 | ||
| 8 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack 1420mm length required.
| In Stock £58.50 | ||
| 9 | RA503937 |
|
Vogue Midi WB Right Hand Door Rope Channel
This part will soon be obsolete |
In Stock £14.86 | ||
| 10 | ME601628 |
|
Vogue 16mm Large Shoulder Screw | Available to Order £14.95 | ||
| 11 | MEC10735 |
|
Vogue Midi/Small Door Catch Slider
This part will soon be obsolete |
In Stock £49.50 | ||
| 12 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 13 | MEC11530 |
|
Vogue Midi/Small Left Hand Door Handle | Available to Order £42.00 | ||
| 14 | MEC10593 |
|
Vogue Midi/Small Right Hand Door Handle | In Stock £57.25 | ||
| 15 | ME601660 |
|
Vogue Door Catch Block | In Stock £11.95 | ||
| 16 | MEC10653 |
|
Vogue Door Handle Bracket | In Stock £18.76 | ||
| M0410BUTH |
|
M4 x 10mm Button Head Socket Screw - Single Screw
This part will soon be obsolete |
In Stock £0.60 | |||
| FA0007 |
|
M6 Washer - Black | Available to Order £1.50 | |||
| M06WASHPEN |
|
M6 Penny Washer - Single Washer
This part will soon be obsolete |
In Stock £1.06 | |||
| M0610WASHSPR |
|
M6 x 10mm Spring Washer - Single Washer
This part will soon be obsolete |
In Stock £1.96 | |||
Drawing: PR10675
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

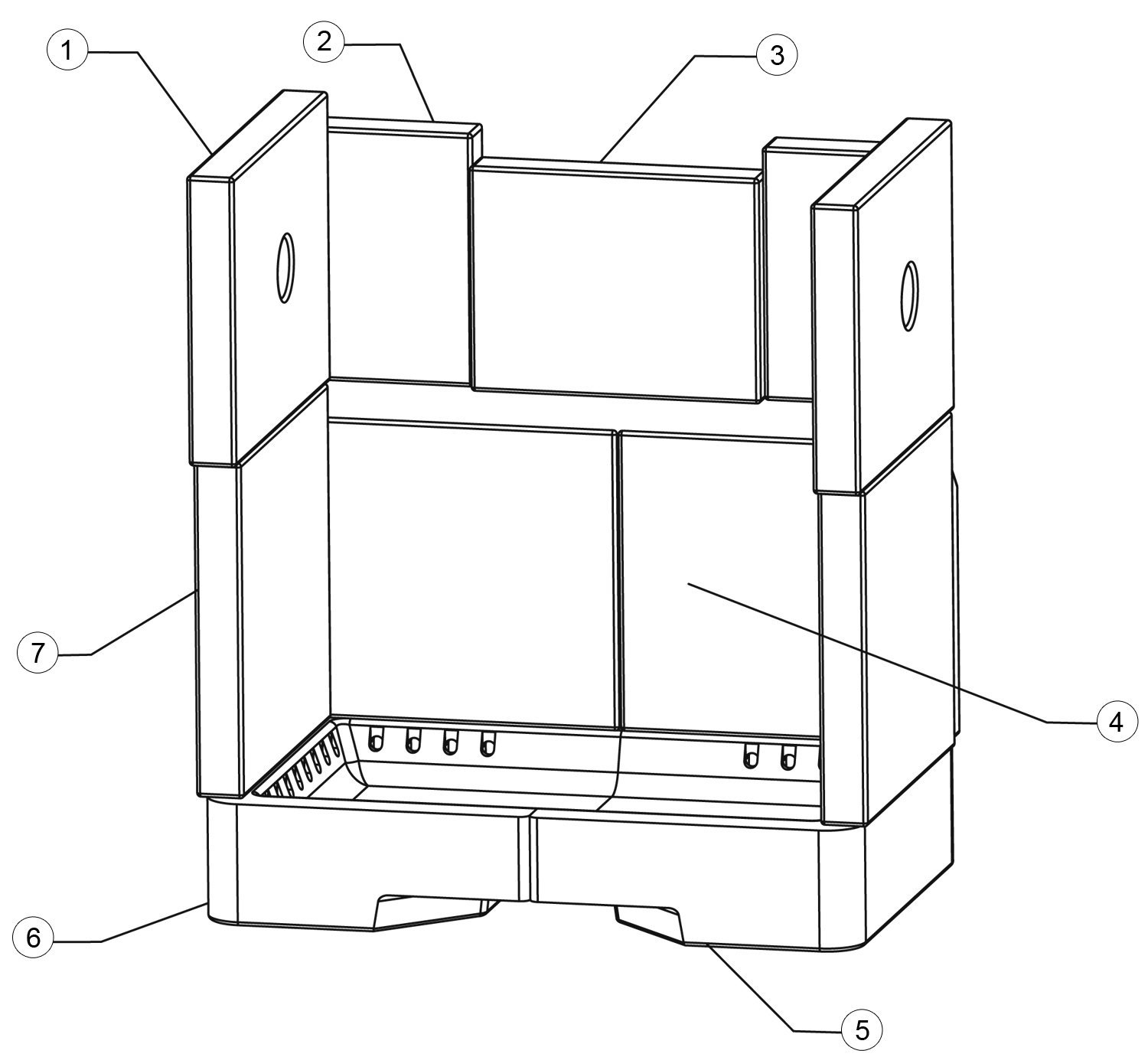

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | RVN-CE7619 |
|
Vision/Vogue Midi Upper Side Firebrick Dimensions: 225 x 138 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | RVN-CE7620 |
|
Vision/Vogue Midi Rear Side Firebrick Dimensions: 135 x 120 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | RVN-CE7621 |
|
Vision/Vogue Small/Midi Upper Centre Firebrick Dimensions: 155 x 120 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RVN-CE7617 |
|
Vision/Vogue Midi Lower Rear Firebrick Dimensions: 200 x 192 x 30mm (w x h x d)
This part will soon be obsolete |
In Stock £8.40 | ||
| 5 | RVN-CE7616 |
|
Vision/Vogue Midi Right Hand Base Firebrick See part 8
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | RVN-CE7614 |
|
Vision/Vogue Midi Left Hand Base Firebrick See part 8
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | RVN-CE7618 |
|
Vision/Vogue Midi Lower Side Firebrick Dimensions: 210 x 211 x 25mm (w x h x d)
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 8a | CA7824 |
|
Sheraton/Chesterfield 5/Vision Midi Eco WB Cast Base Compatible cast replacement for parts 5 & 6
| Available to Order £299.00 | ||
| 8b | 4950 | |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Required for part Cast Iron Base
| In Stock £16.85 | ||
Drawing: PR8499
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

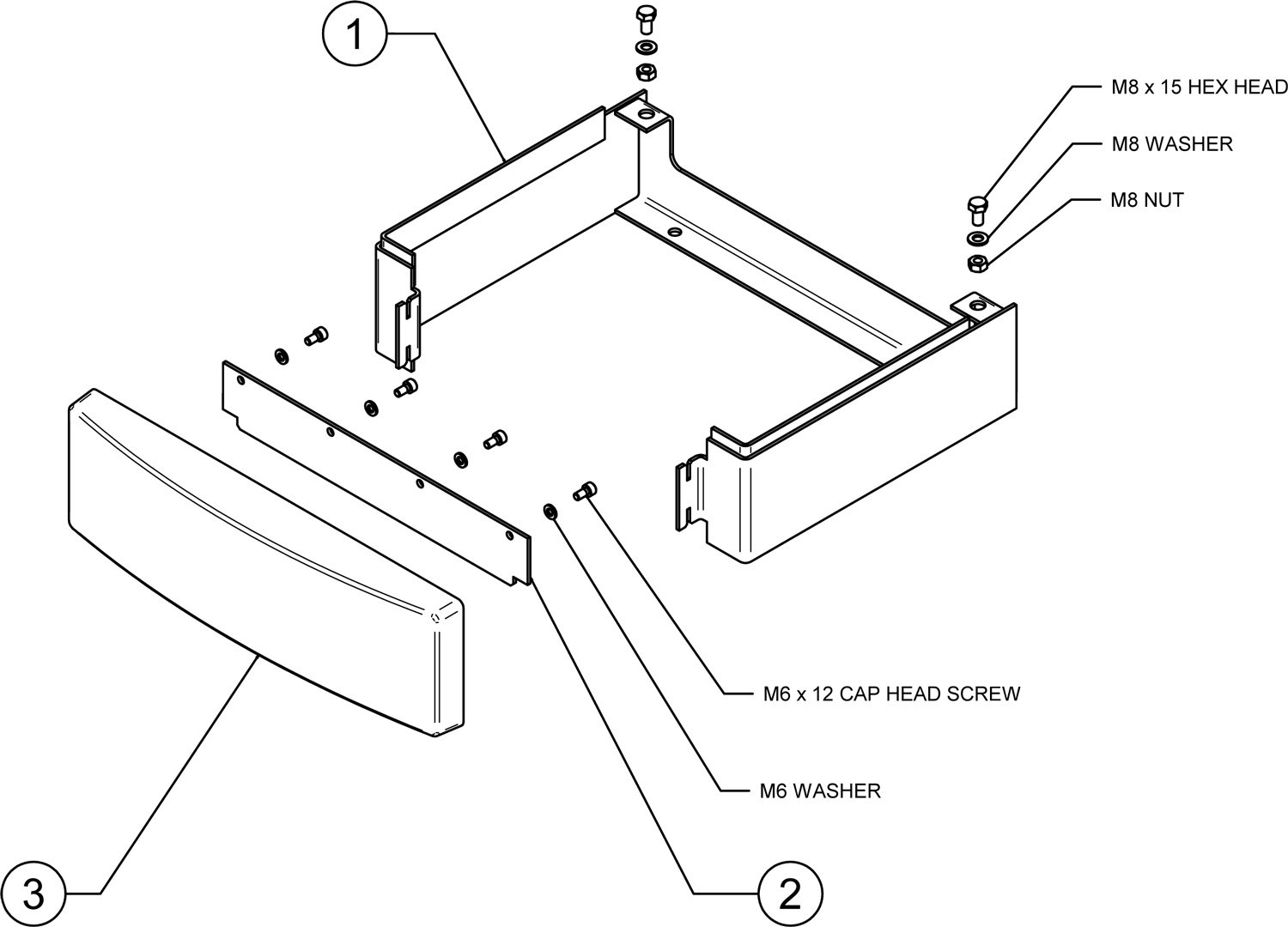

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | VG-MID-BP |
|
Vogue Midi Plinth Base Assembly including parts 2ad 3
| In Stock £209.00 | ||
| 2 | N/A |
|
See part 1
| This part is not currently available. | ||
| 3 | N/A |
|
See part 1
| This part is not currently available. | ||
Drawing: PR10673
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

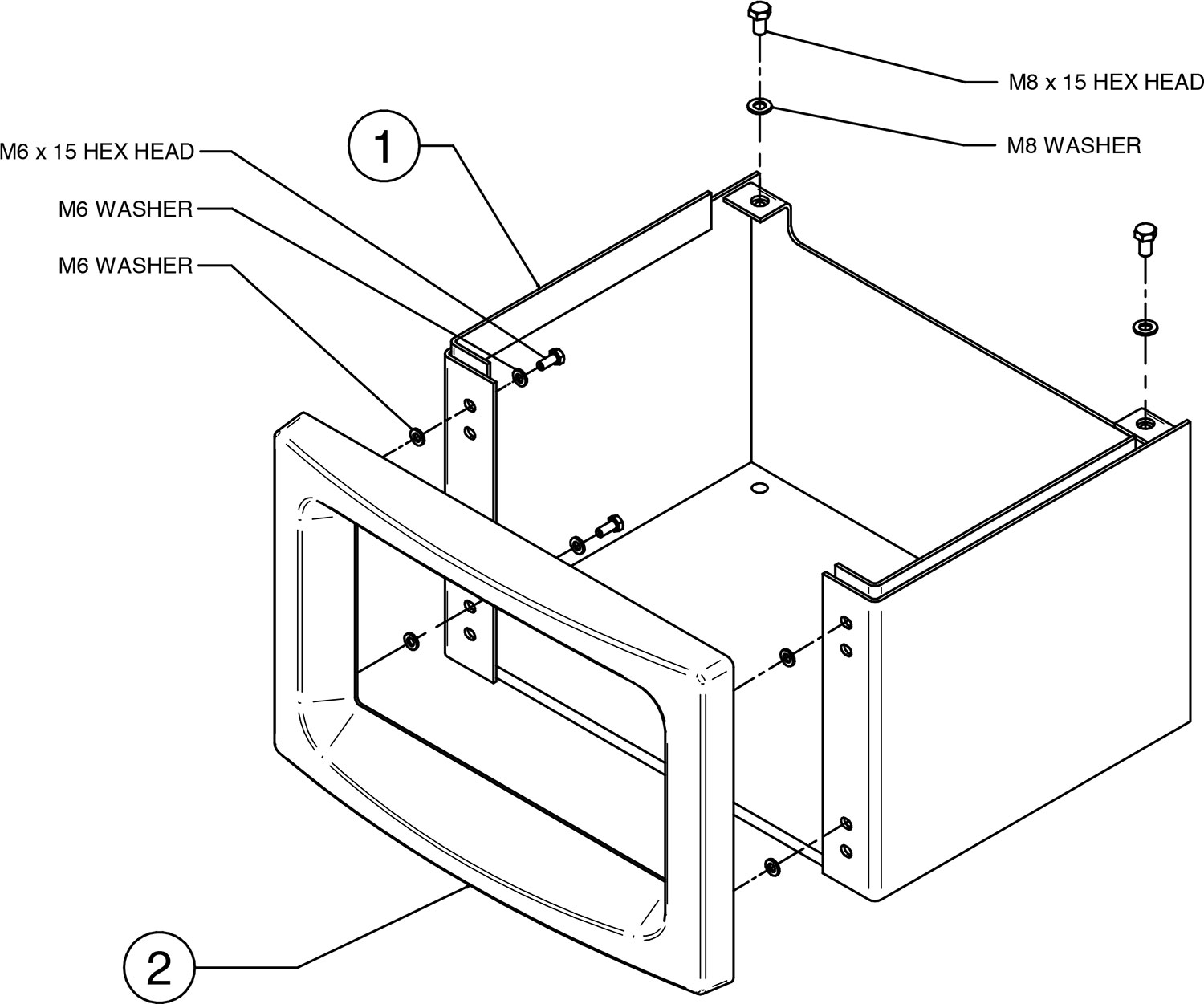

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | VG-MID-BML-E |
|
Vogue Midi Midline Base Eco | Available to Order £359.00 | ||
| 2 | CA7800 |
|
Vogue Midi Midline Base Plinth | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR10736-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
VG-MID-W
DIMENSIONS:
416 x 537 x 359mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
