CL5 Midline Multi Fuel Stove
YM-CL5MIDMF1

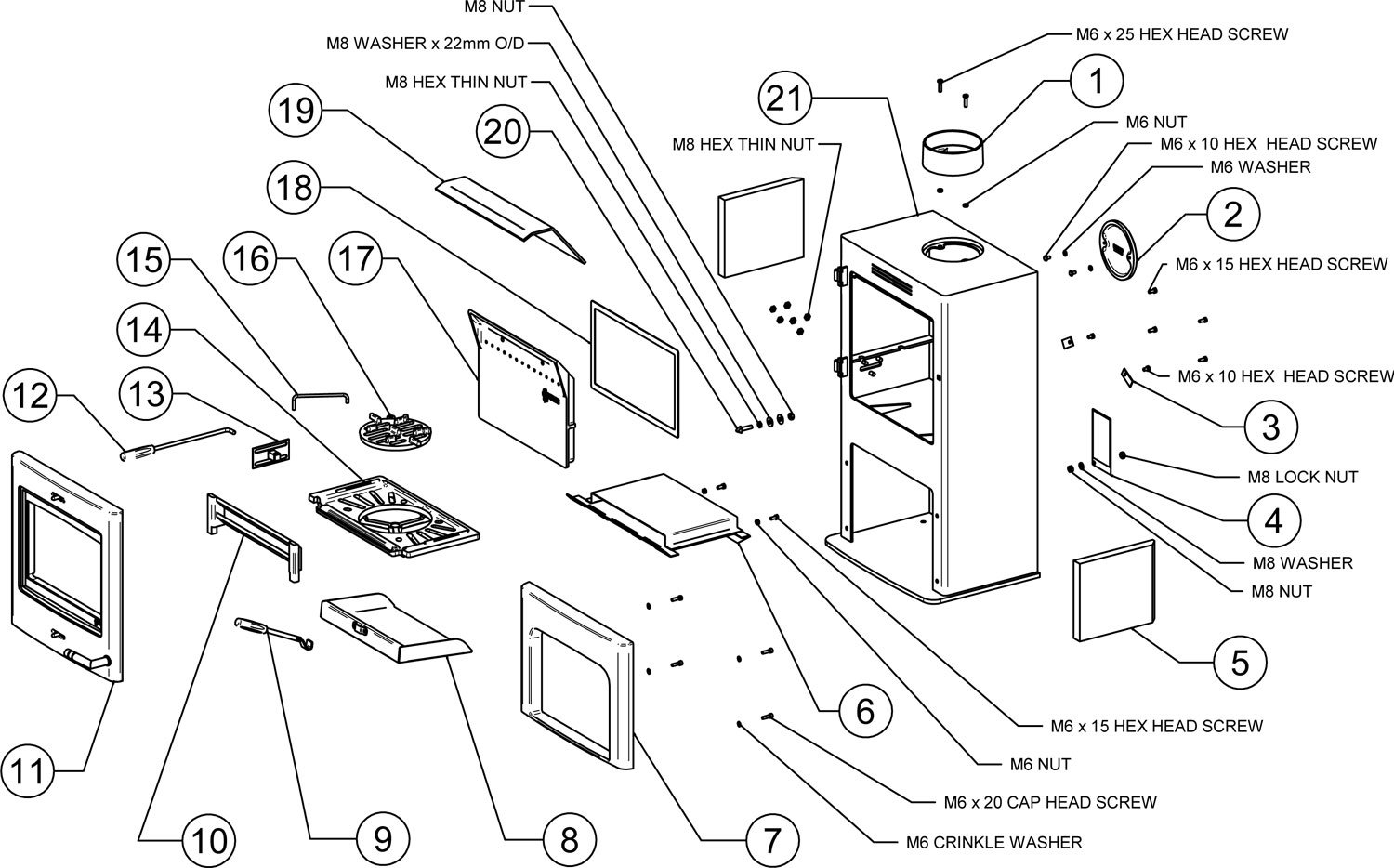

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 |
|
Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | Available to Order £27.50 | ||
| 2 | CA7679 |
|
Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | In Stock £33.50 | ||
| 3 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | CE7814 |
|
View 5/CL5 MF Side Firebrick Dimensions: 195x220x25mm.
| In Stock £30.25 | ||
| 6 | MEC9897 |
|
Heat Shield Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | CA7730 |
|
CL5 Midline MF Front Plinth | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | MEC9671 |
|
View 5/CL5 MF Mk2 Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC8793 |  |
Ashpan Tool | In Stock £78.00 | ||
| 10 | CA7664 |
|
View 5/CL5 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | MEC9669 |
|
CL5 Mk2 Complete Door Assembly
This part will soon be obsolete |
In Stock £1,025.00 | ||
| 12 | MEC8788 |  |
Multifunction Tool | Available to Order £50.26 | ||
| 13 | MEC8644 |
|
View 3/5/8/Vision/Vogue/CL3/CL5/CL8 MF Riddling Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | S5.53CE |
|
Stockton 5/View 5/CL5 CE Main Grate | In Stock £135.00 | ||
| 15 | RA502327 |
|
View 5/CL5 MF Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | SMN37 |
|
Stockton/CL/County Centre Grate | In Stock £29.26 | ||
| 17 | S5.27 |
|
Stockton/View 5/CL5 Cleanburn Chamber | Available to Order £155.00 | ||
| 18 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.00 | ||
| 19 | S5.26 |
|
Stockton 5/View 5/CL5 Baffle Plate | Available to Order £105.00 | ||
| 20 | ME601014 |
|
CL3/CL5/CL8 Latch Screw | This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

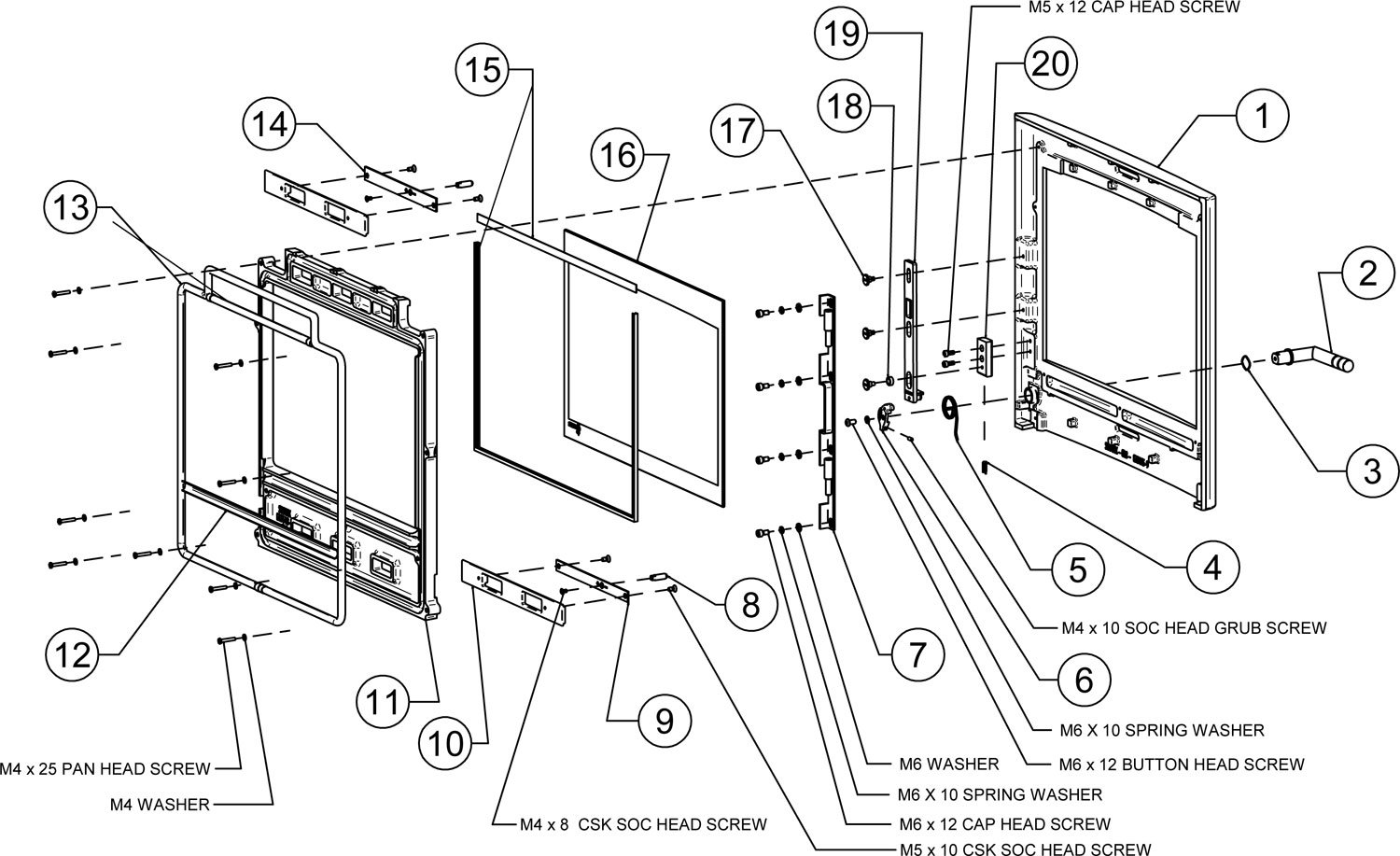

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7621 |
|
CL5 Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | MEC8619 |
|
CL3/CL5/CL8/CL7 Inset Boiler Door Handle | In Stock £74.26 | ||
| 3 | FA500024 |
|
CL3/CL5/CL8/CL7 Inset Boiler Wave Spring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 5 | FA500025 |
|
CL3/CL5/CL8/CL7 Inset Boiler Torsion Spring
This part will soon be obsolete |
In Stock £2.80 | ||
| 6 | CA7720 |
|
CL3/CL5/CL8 Mk2 Door Handle Cam
This part will soon be obsolete |
In Stock £15.70 | ||
| 7 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 8 | ME600392 |
|
CL3/CL5/CL8/CL7 Inset Boiler Air Control Handle
This part will soon be obsolete |
In Stock £17.56 | ||
| 9 | ME600456 |
|
CL3/CL5/CL7 Inset Boiler Primary Air Control Slider Plate | In Stock £22.00 | ||
| 10 | CA7634 |
|
CL3/CL5/CL7 Inset Boiler Air Control Slider
This part will soon be obsolete |
In Stock £4.45 | ||
| 11 | CA7643 |
|
CL5 Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | N/A |
|
Only used on CL8 Door
| This part is not currently available. | ||
| 13 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £58.50 | ||
| 14 | ME600448 |
|
CL3/CL5/CL7 Inset Boiler Airwash Slider Plate | In Stock £24.76 | ||
| 15 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Glass Seal
| In Stock £16.85 | ||
| 16 | CE7738 |
|
CL5/CL7 Inset Boiler Door Glass Dimensions: 343 x 264mm (w x h)
| Available to Order £82.50 | ||
| 17 | ME600563 |
|
View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 | ||
| 18 | ME601173 |
|
CL3/CL5/CL8 Mk2 Door Catch Slider Roller | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | MEC9761 |
|
CL5/CL8 Mk2 Door Catch Slider
This part will soon be obsolete |
In Stock £105.00 | ||
| 20 | ME600997 |
|
CL3/CL5/CL8 Mk2 Door Catch Block
This part will soon be obsolete |
In Stock £25.75 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-CL5MIDMF1
DIMENSIONS:
454 x 788 x 318mm (w x h x d)
