Mk2 CL5 Wood Burning Stove
YM-CL5W1

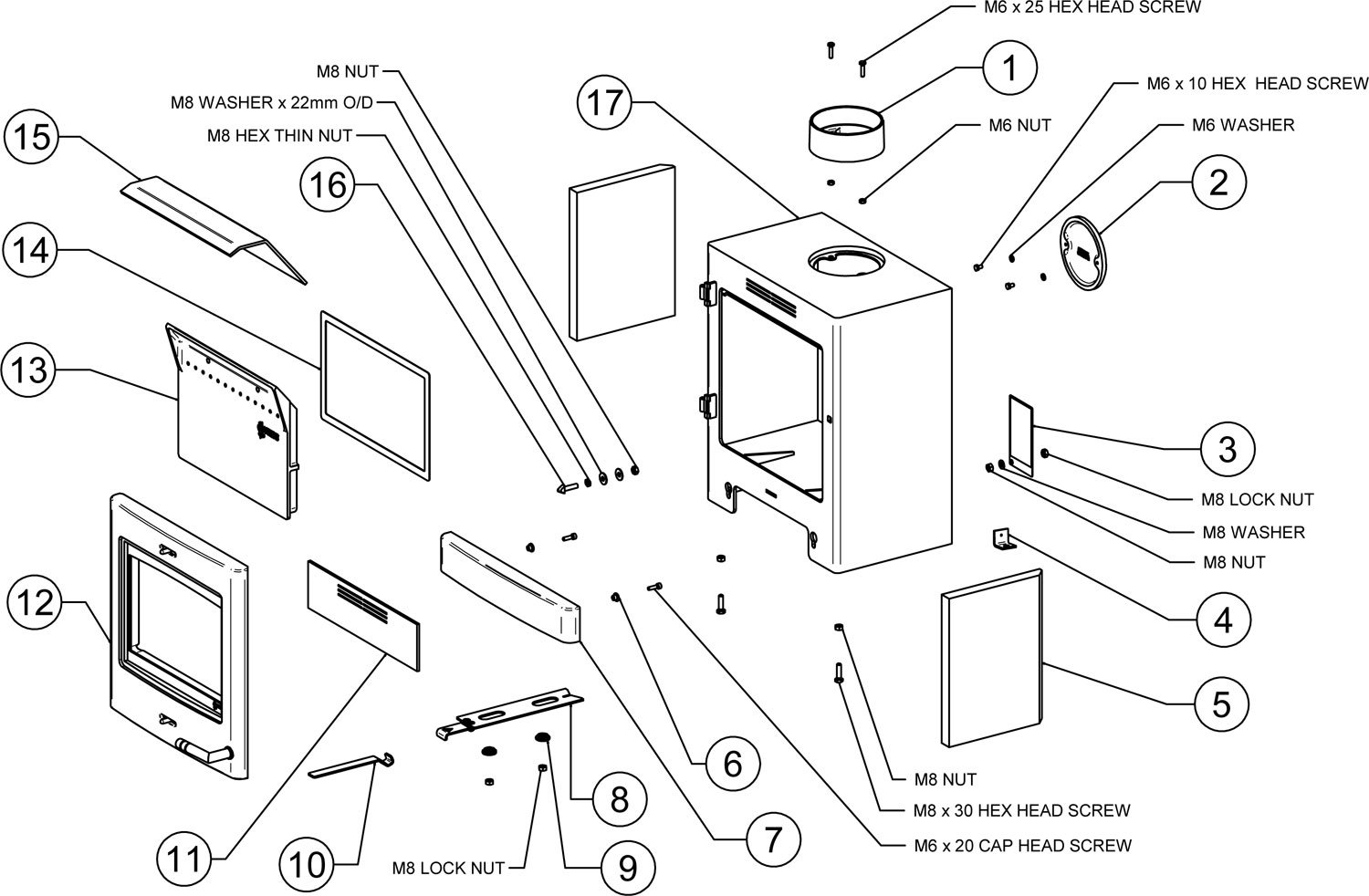

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7680 |
|
Stockton 3/4/5/6/Exmoor/CL3/CL5 Mk2 5" Flue Adapter | In Stock £27.50 | ||
| 2 | CA7679 |
|
Stockton 3/4/5/6/CL3/CL5 Mk2 5" Blanking Plate | Available to Order £33.50 | ||
| 3 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RA503311 |
|
CL3/CL5/CL8 Mk2 Hearth Fixing Tab | In Stock £23.50 | ||
| 5 | CE8021 |
|
CL5 WB Mk2 Side Firebrick Dimensions: 302 x 220 x 25mm (w x h x d)
| Available to Order £34.75 | ||
| 6 | RVAC046 |  |
Baffle Support Spacer | In Stock £12.10 | ||
| 7 | CA7645 |
|
CL5 Plinth Front Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | MEC9753 |
|
View 5/CL5 Mk2 Secondary Air Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | SM55 |
|
Stockton Ashpan Tool | In Stock £32.50 | ||
| 11 | ME601140 |
|
CL5 WB Mk2 Log Retaining Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | MEC9669 |
|
CL5 Mk2 Complete Door Assembly
This part will soon be obsolete |
In Stock £1,025.00 | ||
| 13 | S5.27 |
|
Stockton/View 5/CL5 Cleanburn Chamber Stovax Branded
| In Stock £155.00 | ||
| 14 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 15 | S5.26 |
|
Stockton 5/View 5/CL5 Baffle Plate | In Stock £105.00 | ||
| 16 | ME601014 |
|
CL3/CL5/CL8 Latch Screw | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

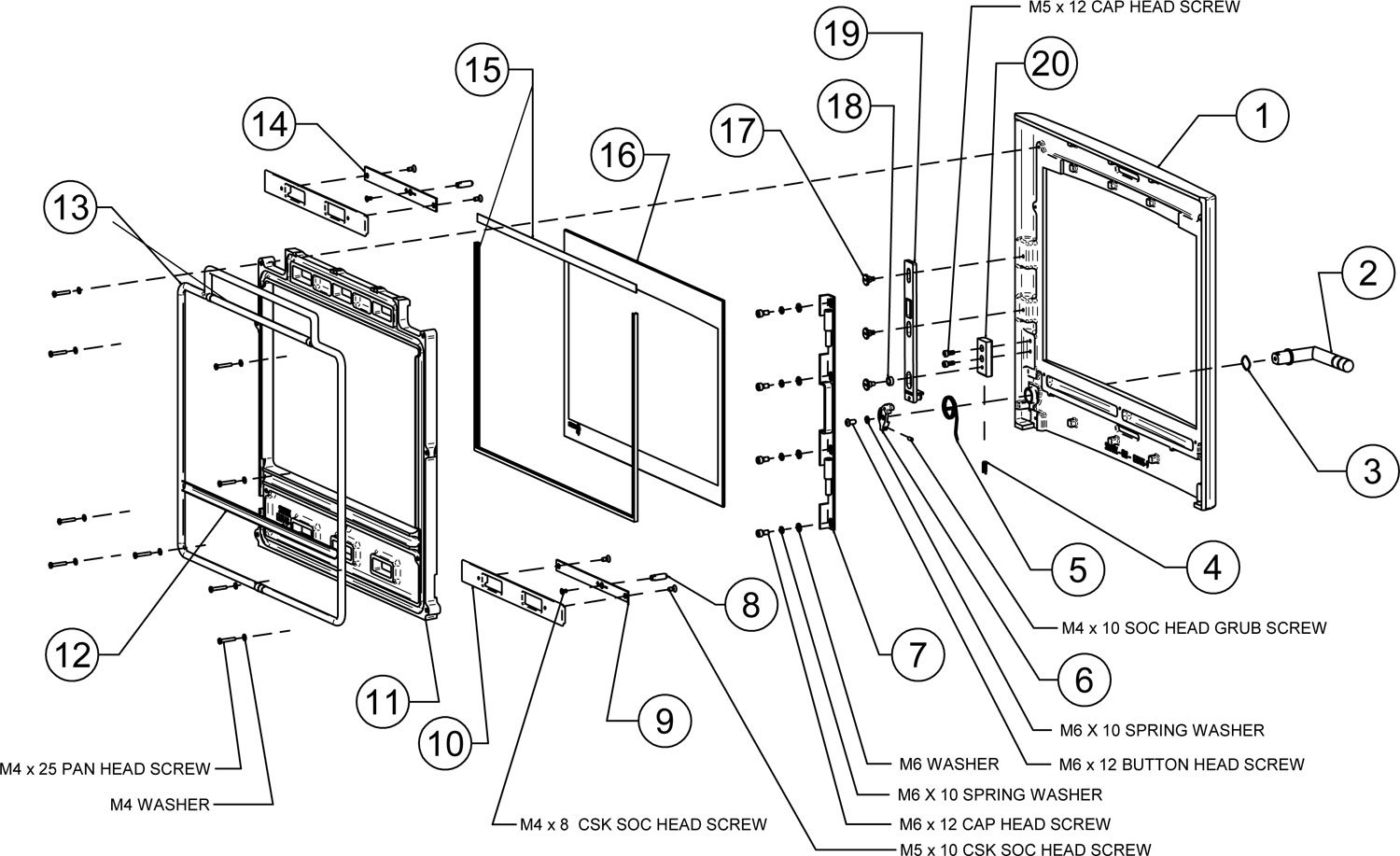

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7621 |
|
CL5 Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | MEC8619 |
|
CL3/CL5/CL8/CL7 Inset Boiler Door Handle | In Stock £74.26 | ||
| 3 | FA500024 |
|
CL3/CL5/CL8/CL7 Inset Boiler Wave Spring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 5 | FA500025 |
|
CL3/CL5/CL8/CL7 Inset Boiler Torsion Spring
This part will soon be obsolete |
In Stock £2.80 | ||
| 6 | CA7720 |
|
CL3/CL5/CL8 Mk2 Door Handle Cam
This part will soon be obsolete |
In Stock £15.70 | ||
| 7 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 8 | ME600392 |
|
CL3/CL5/CL8/CL7 Inset Boiler Air Control Handle
This part will soon be obsolete |
In Stock £17.56 | ||
| 9 | ME600456 |
|
CL3/CL5/CL7 Inset Boiler Primary Air Control Slider Plate | In Stock £22.00 | ||
| 10 | CA7634 |
|
CL3/CL5/CL7 Inset Boiler Air Control Slider
This part will soon be obsolete |
In Stock £4.45 | ||
| 11 | CA7643 |
|
CL5 Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | N/A |
|
Only used on CL8 Door
| This part is not currently available. | ||
| 13 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack Door Seal
| In Stock £58.50 | ||
| 14 | ME600448 |
|
CL3/CL5/CL7 Inset Boiler Airwash Slider Plate | In Stock £24.76 | ||
| 15 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Glass Seal
| In Stock £16.85 | ||
| 16 | CE7738 |
|
CL5/CL7 Inset Boiler Door Glass Dimensions: 343 x 264mm (w x h)
| Available to Order £82.50 | ||
| 17 | ME600563 |
|
View/CL3/CL5/CL8 Large Shoulder Screw | In Stock £18.46 | ||
| 18 | ME601173 |
|
CL3/CL5/CL8 Mk2 Door Catch Slider Roller | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | MEC9761 |
|
CL5/CL8 Mk2 Door Catch Slider
This part will soon be obsolete |
In Stock £105.00 | ||
| 20 | ME600997 |
|
CL3/CL5/CL8 Mk2 Door Catch Block
This part will soon be obsolete |
In Stock £25.75 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-CL5W1
DIMENSIONS:
435 x 542 x 325mm (w x h x d)
