Mk1 CL5 Wood Burning Stove
YM-CL5W

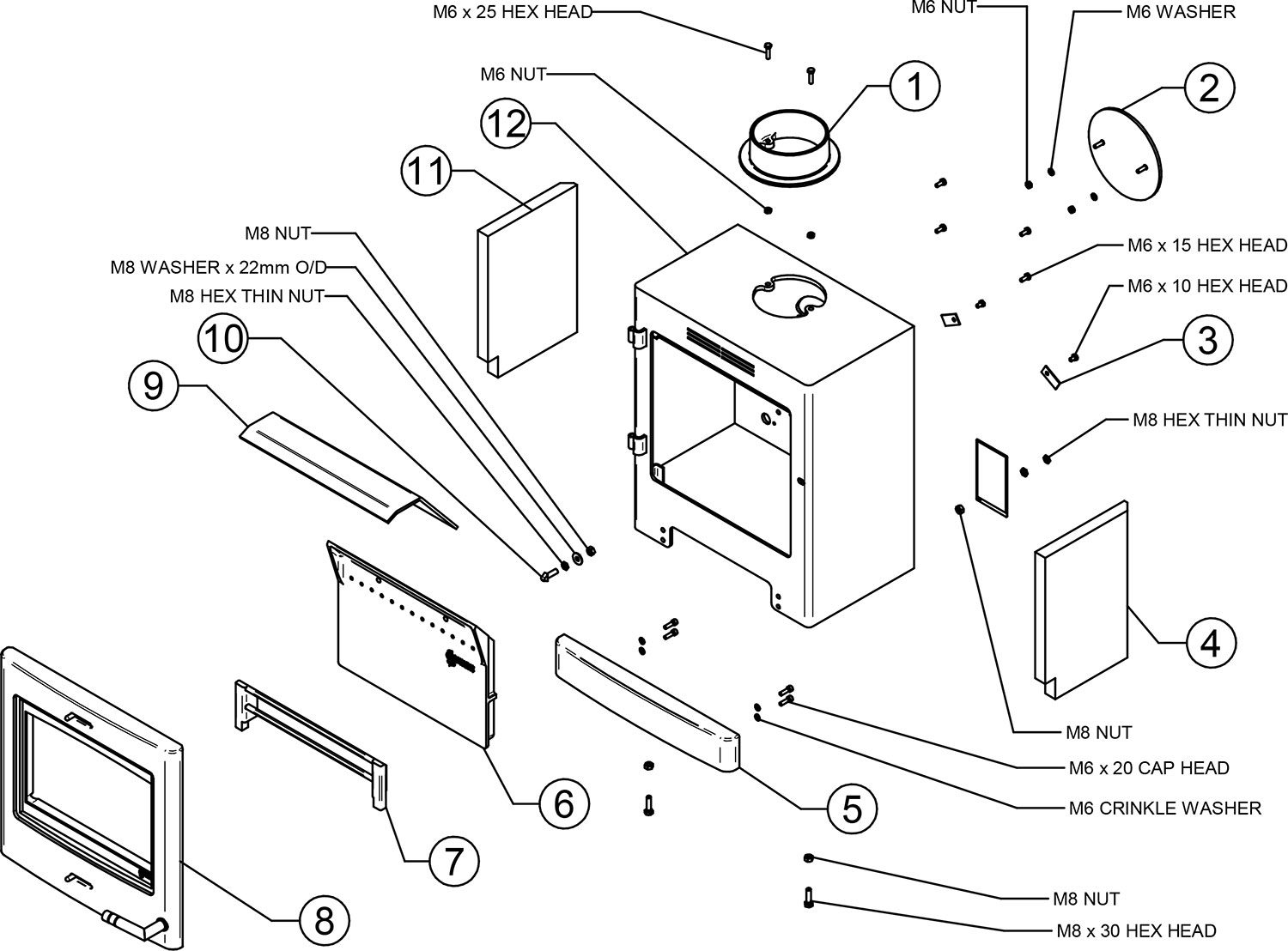

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7668 |
|
View 3/5/CL3/CL5 Mk1 5" Flue Adaptor | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | SS13 |
|
Stockton 3/4/5/6/CL3/CL5 Mk1 Blanking Plate | Available to Order £72.00 | ||
| 3 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CE7812 |
|
View 5/CL5 WB CE Right Hand Side Firebrick Dimensions: 315 x 220 x 25mm (w x h x d)
| In Stock £44.00 | ||
| 5 | CA7645 |
|
CL5 Plinth Front Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6a | S5.27 |
|
Stockton/View 5/CL5 Cleanburn Chamber | In Stock £155.00 | ||
| 6b | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 6c | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw x4 Required
| In Stock £0.79 | ||
| 7 | CA7664 |
|
View 5/CL5 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | MEC8628 |
|
CL5 Mk1 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | S5.26 |
|
Stockton 5/View 5/CL5 Baffle Plate | In Stock £105.00 | ||
| 10 | ME600599 |
|
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | Available to Order £19.66 | ||
| 11 | CE7817 |
|
View 5/CL5 WB CE Left Hand Side Firebrick Dimensions: 315 x 220 x 25mm (w x h x d)
| In Stock £44.00 | ||
| 12 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

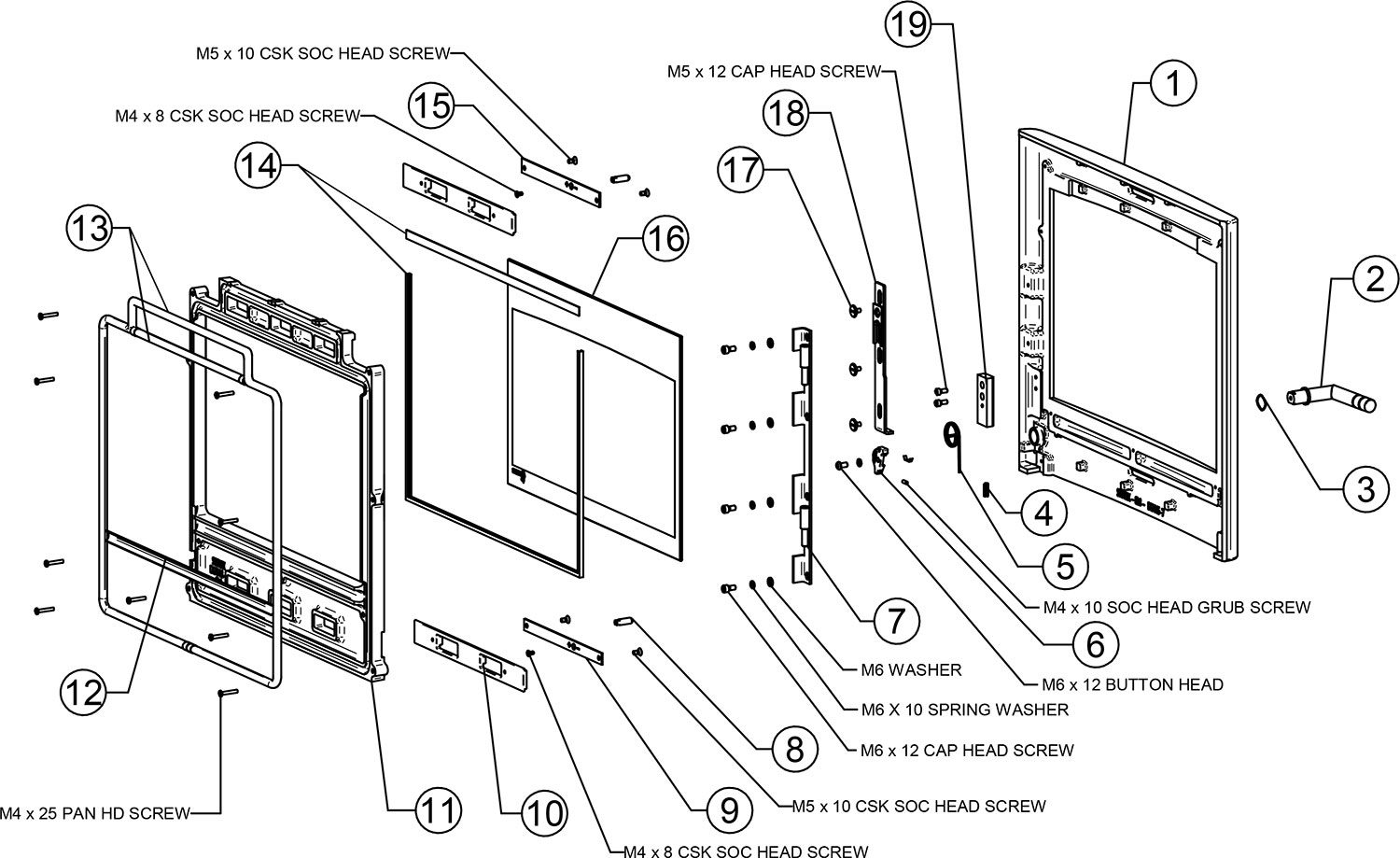

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7621 |
|
CL5 Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | MEC8619 |
|
CL3/CL5/CL8/CL7 Inset Boiler Door Handle | In Stock £74.26 | ||
| 3 | FA500024 |
|
CL3/CL5/CL8/CL7 Inset Boiler Wave Spring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 5 | FA500025 |
|
CL3/CL5/CL8/CL7 Inset Boiler Torsion Spring
This part will soon be obsolete |
In Stock £2.80 | ||
| 6 | CA7635 |
|
CL3/CL5/CL8/CL7 Inset Boiler Mk1 Door Handle Cam
This part will soon be obsolete |
In Stock £12.10 | ||
| 7 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 8 | ME600392 |
|
CL3/CL5/CL8/CL7 Inset Boiler Air Control Handle
This part will soon be obsolete |
In Stock £17.56 | ||
| 9 | ME600456 |
|
CL3/CL5/CL7 Inset Boiler Primary Air Control Slider Plate | In Stock £22.00 | ||
| 10 | CA7634 |
|
CL3/CL5/CL7 Inset Boiler Air Control Slider
This part will soon be obsolete |
In Stock £4.45 | ||
| 11 | CA7643 |
|
CL5 Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | N/A |
|
Only used on CL8 Door
| This part is not currently available. | ||
| 13 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack | In Stock £58.50 | ||
| 14 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.85 | ||
| 15 | ME600448 |
|
CL3/CL5/CL7 Inset Boiler Airwash Slider Plate | In Stock £24.76 | ||
| 16 | CE7738 |
|
CL5/CL7 Inset Boiler Door Glass Dimensions: 343 x 264mm (w x h)
| Available to Order £82.50 | ||
| 17 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.17 | ||
| 18 | MEC8865 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | ME600410 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Block | In Stock £30.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-CL5W
DIMENSIONS:
435 x 518 x 303mm (w x h x d)
