Mk1 CL8 Multi Fuel Stove
YM-CL8MF

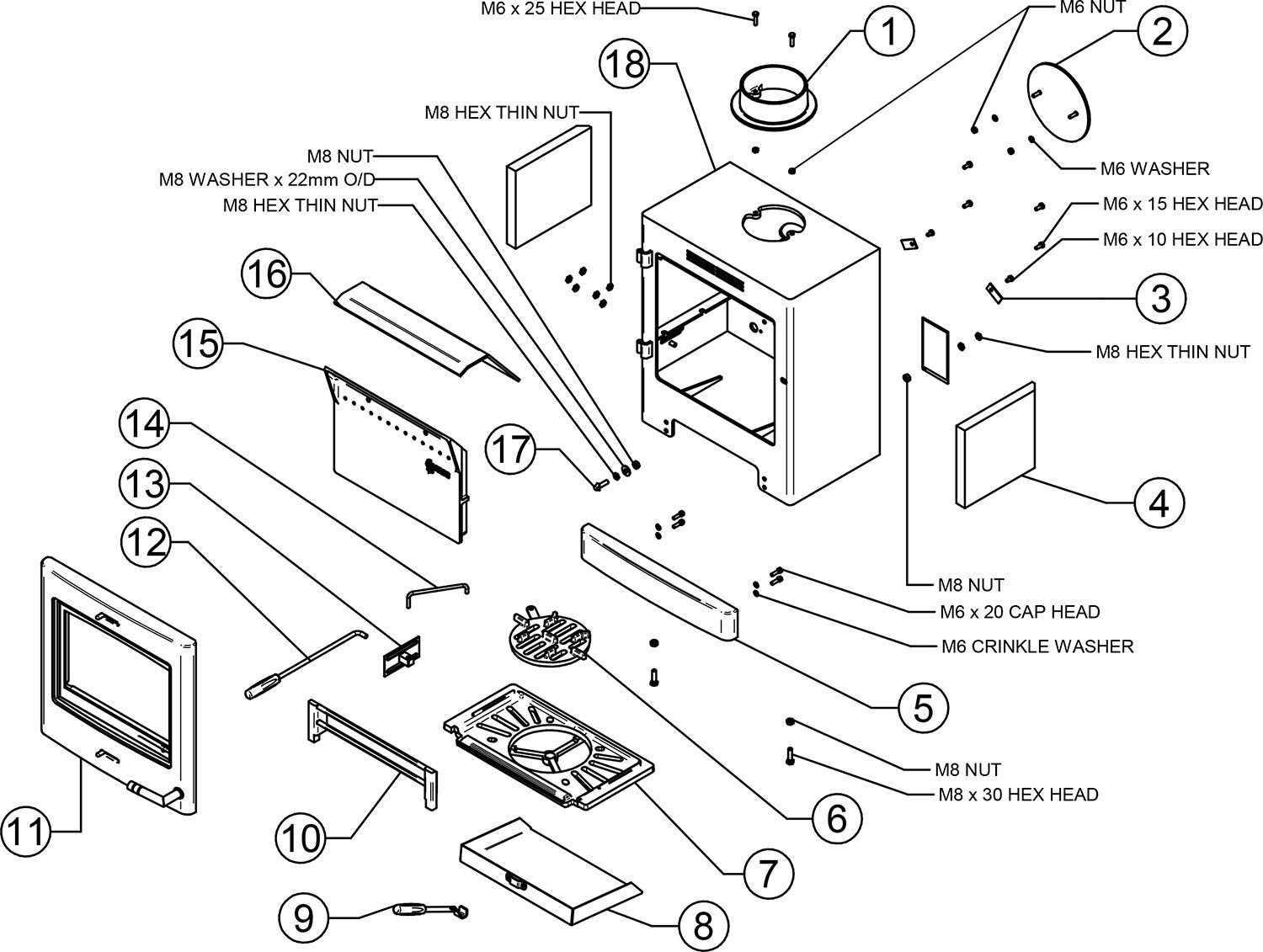

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7669 |
|
View 8/CL8 Mk1 6" Flue Adapter
This part will soon be obsolete |
In Stock £42.00 | ||
| 2 | SM13 |
|
Stockton 7/8/11/14 HB/View 8/CL8 Mk1 6in Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | SM15 |  |
Secondary Air Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CE7813 |
|
View 8/CL8 MF Side Firebrick Dimensions: 218 x 270 x 25mm (w x h x d)
| In Stock £31.25 | ||
| 5 | CA7651 |
|
CL8 Cast Front Plinth
This part will soon be obsolete |
In Stock £99.50 | ||
| 6 | SMN37 |
|
Stockton/CL/County Centre Grate | Available to Order £29.26 | ||
| 7 | SM64CE |
|
Stockton/View 8/CL8 MF Main Grate
This part will soon be obsolete |
In Stock £149.00 | ||
| 8 | MEC8821 |
|
View 8/CL8 Mk1 MF Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC8793 |  |
Ashpan Tool | In Stock £78.00 | ||
| 10 | SM62 |
|
Stockton 8/CL8 MF Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | MEC8620 |
|
CL8 Mk1 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | MEC8788 |  |
Multifunction Tool | In Stock £50.26 | ||
| 13 | MEC8644 |
|
View 3/5/8/Vision/Vogue/CL3/CL5/CL8 MF Riddling Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | RA502357 |
|
View 8/CL8 MF Riddling Operating Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15a | SM27CE |
|
Stockton 8/5/View 8 Wide Cleanburn Chamber | In Stock £173.00 | ||
| 15b | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack Cleanburn Chamber Seal
| In Stock £16.00 | ||
| 15c | M0615HHS |
|
M6 x 15mm Hex Head Screw - Single Screw Cleanburn Chamber Screw
| In Stock £0.79 | ||
| 16 | SM26 |
|
Stockton/View 8/CL8 Baffle Plate | In Stock £112.00 | ||
| 17 | ME600599 |
|
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | Available to Order £19.66 | ||
| 18 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7615 |
|
CL8 Door Frame
This part will soon be obsolete |
In Stock £155.00 | ||
| 2 | MEC8619 |
|
CL3/CL5/CL8/CL7 Inset Boiler Door Handle | In Stock £74.26 | ||
| 3 | FA500024 |
|
CL3/CL5/CL8/CL7 Inset Boiler Wave Spring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 5 | FA500025 |
|
CL3/CL5/CL8/CL7 Inset Boiler Torsion Spring
This part will soon be obsolete |
In Stock £2.80 | ||
| 6 | CA7635 |
|
CL3/CL5/CL8/CL7 Inset Boiler Mk1 Door Handle Cam
This part will soon be obsolete |
In Stock £12.10 | ||
| 7 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 8 | ME600392 |
|
CL3/CL5/CL8/CL7 Inset Boiler Air Control Handle
This part will soon be obsolete |
In Stock £17.56 | ||
| 9 | ME600449 |
|
CL8 Primary Air Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | CA7649 |
|
CL8 Air Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | CA7648 |
|
CL8 Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | 4952 |  |
15 x 2mm Mid Door Rope Seal - 2m Pack Mid Door Seal
| In Stock £17.45 | ||
| 13 | 5704 |
|
13mm Black Rope Seal with Adhesive - 3.5m Pack Door Seal
| In Stock £72.00 | ||
| 14 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack Glass Seal
| In Stock £16.85 | ||
| 15 | ME600457 |
|
CL8 Airwash Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | CE7705 |
|
CL8 Door Glass Dimensions: 469 x 316mm (w x h)
| In Stock £159.00 | ||
| 17 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.17 | ||
| 18 | MEC8865 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | ME600410 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Block | In Stock £30.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-CL8MF
DIMENSIONS:
563 x 572 x 383mm (w x h x d)
