Mk1 CL7 Inset Multi Fuel Fire
YM-CL7NMF

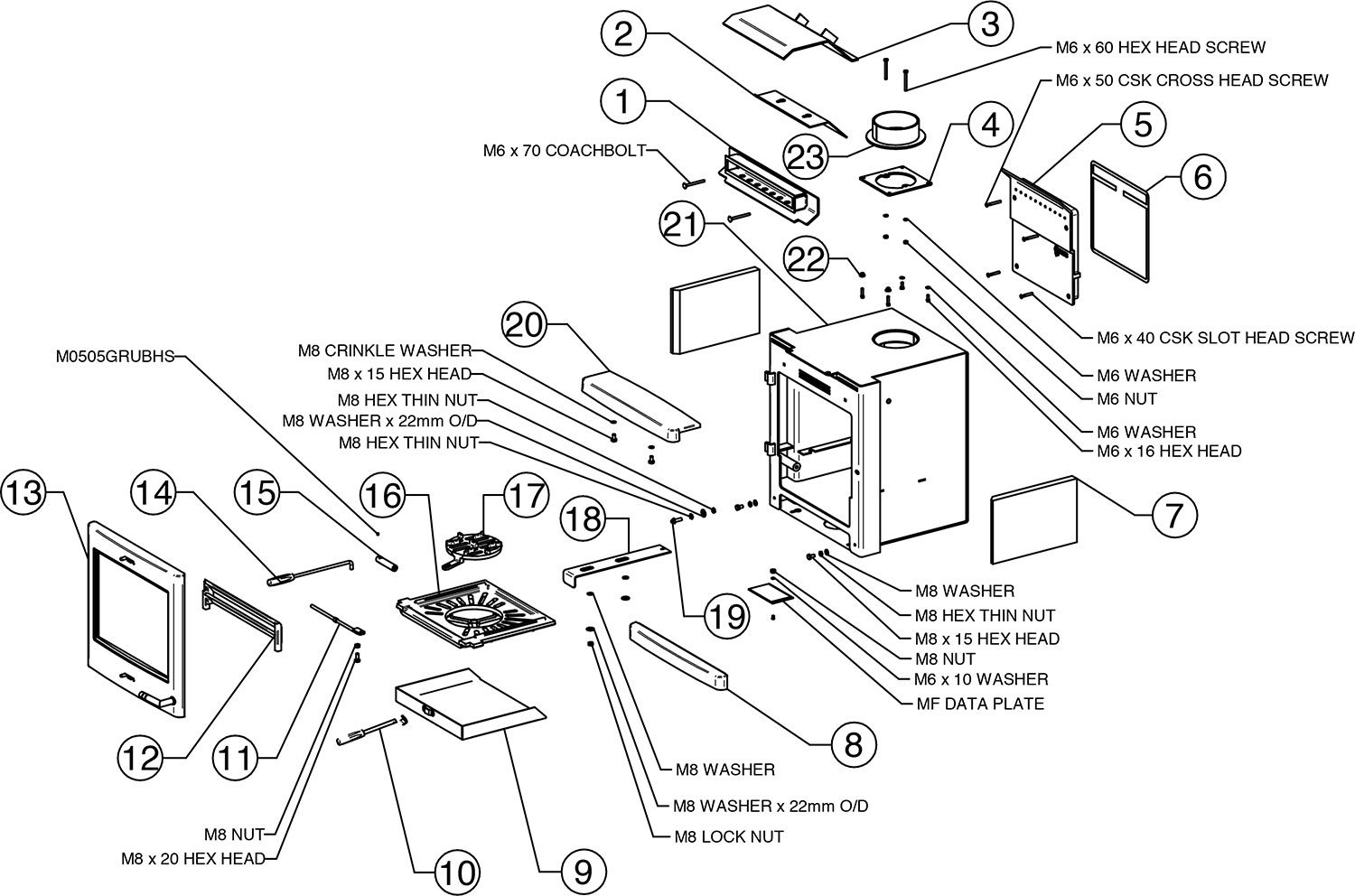

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC8893 |
|
View 7 Mk1 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | S7.74 |
|
Stockton/View 7 Inset Upper Baffle Plate | In Stock £175.00 | ||
| 3 | S7.70CE |
|
Stockton/View 7 Inset Lower Baffle Plate | In Stock £71.75 | ||
| 4 | ME600628 |
|
Stockton 7/8 Inset Mk2 Flue Flange
This part will soon be obsolete |
In Stock £31.25 | ||
| 5 | CA7650 |
|
CL7 Clean-Burn Air Duct Casting | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.00 | ||
| 7 | CE7829 |
|
View 7 Side Firebrick Dimensions: 300x205x25mm.
| Available to Order £32.75 | ||
| 8 | MEC8910 |
|
Cast Plinth Front
This part will soon be obsolete |
In Stock £119.00 | ||
| 9 | MEC8820 |
|
View 7 Mk1 Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | MEC8793 |  |
Ashpan Tool | In Stock £78.00 | ||
| 11 | MEC8900 |
|
View 7 Riddling Rod | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | S7.25 |
|
Stockton 7 Log Retainer | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | MEC8671 |
|
CL7 Complete Door Assembly
This part will soon be obsolete |
In Stock £1,165.00 | ||
| 14 | MEC8788 |  |
Multifunction Tool | Available to Order £50.26 | ||
| 15 | ME600502 |
|
View 7 Mk2 Riddling Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | S7.61 |
|
Stockton/View 7 Inset Main Grate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | CA7663 |
|
Stockton 7/8 Inset Mk2 Centre Grate
This part will soon be obsolete |
In Stock £28.25 | ||
| 18 | RA502571 |
|
View 7 Mk1 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | ME600599 |
|
View/CL3/CL5/CL8 Mk1/CL7 Inset Boiler Door Latch Bolt | In Stock £19.66 | ||
| 20 | CA7670 |
|
CL7 Inset Cast Top | This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
| 22 | RVAC046 |  |
Baffle Support Spacer | In Stock £12.10 | ||
| 23 | SS14 |
|
Stockton Mk1 3/4/5/6 5inch Flue Adapter | In Stock £27.25 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

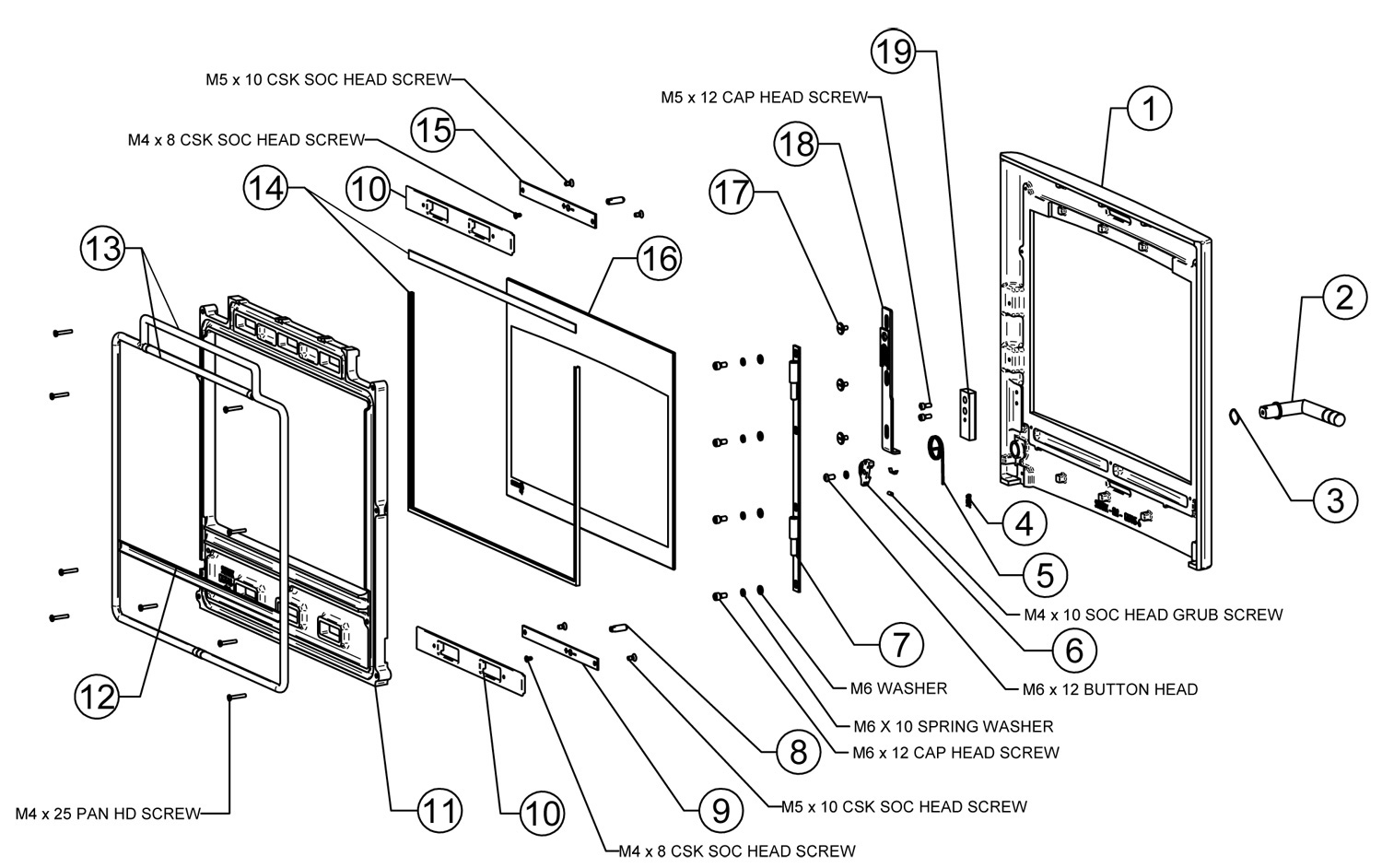

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7638 |
|
CL7 Inset Boiler Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | MEC8619 |
|
CL3/CL5/CL8/CL7 Inset Boiler Door Handle | In Stock £74.26 | ||
| 3 | FA500024 |
|
CL3/CL5/CL8/CL7 Inset Boiler Wave Spring | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | FA9508 |
|
6mm x 22mm Spring | In Stock £4.70 | ||
| 5 | FA500025 |
|
CL3/CL5/CL8/CL7 Inset Boiler Torsion Spring
This part will soon be obsolete |
In Stock £2.80 | ||
| 6 | CA7635 |
|
CL3/CL5/CL8/CL7 Inset Boiler Mk1 Door Handle Cam
This part will soon be obsolete |
In Stock £12.10 | ||
| 7 | MEC9553 |
|
View/CL3/CL5/CL8/CL7 Inset Boiler Hinge Assembly
This part will soon be obsolete |
In Stock £84.76 | ||
| 8 | ME600392 |
|
CL3/CL5/CL8/CL7 Inset Boiler Air Control Handle
This part will soon be obsolete |
In Stock £17.56 | ||
| 9 | ME600456 |
|
CL3/CL5/CL7 Inset Boiler Primary Air Control Slider Plate | In Stock £22.00 | ||
| 10 | CA7634 |
|
CL3/CL5/CL7 Inset Boiler Air Control Slider
This part will soon be obsolete |
In Stock £4.45 | ||
| 11 | CA7639 |
|
CL7 Glass Clamp | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | N/A |
|
Only used on CL8 Door
| This part is not currently available. | ||
| 13 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack | In Stock £58.50 | ||
| 14 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.85 | ||
| 15 | ME600448 |
|
CL3/CL5/CL7 Inset Boiler Airwash Slider Plate | In Stock £24.76 | ||
| 16 | CE7732 |
|
CL7 Inset Door Glass Dimensions: 397x297mm
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | FA9510 |  |
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Shoulder Screw - Single Screw | In Stock £6.17 | ||
| 18 | MEC8865 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Slider | Available to Order £70.00 | ||
| 19 | ME600410 |
|
CL3/CL5/CL7/CL8 Inset Boiler Mk1 Door Catch Block | In Stock £30.00 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-CL7NMF
DIMENSIONS:
489 x 574 x 458mm (w x h x d)
