Mk2 Yeoman County High Canopy, Double Door, Double Sided, Single Depth, Wood Burning Stove
YM-COU-SDWHC2
-
Mk2 Yeoman County High Canopy, Double Door, Double Sided, Single Depth, Wood Burning Stove
-
Two Door Assembly
-
Multi-fuel Kit
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | MEC9655 |
|
County Double Door Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | ME601108 |
|
County/Devon/Exe Mk2 Adjustable Door Hinge | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CA7754 |
|
County CE Log Guard for Wood Burning models only
This part will soon be obsolete |
In Stock £71.26 | ||
| 5 | MEC9837 |
|
County Mk2 Left Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030CE |
|
County/Devon/Exe Double Sided Mk2 Airwash Spinner Bolt for Serial Numbers Prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | FA9017 |
|
Airwash Spinner Spring for Serial Numbers Prefixed BYM and PRE CE
| In Stock £3.16 | ||
| 8 | YM-YA40661 |
|
County Double Sided Double Door Mk2 Left Hand Airwash Spinner Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC9838 |
|
County, Log Guard Brack Assembly, Right Hand | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | N/A Assembly |
|
Part of the carcass
| This part cannot be ordered individually and is sold as part of an assembly. | ||
| 11 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 12 | YM-C40007CE |
|
County Double Sided Double Door Single Depth Mk2 Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-YA40658 |
|
County Double Sided Double Door Mk2 Right Hand Airwash Spinner Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | MEC9985 |
|
County Double Sided Double Door Single Depth Mk2 Baffle Extension Tube | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||

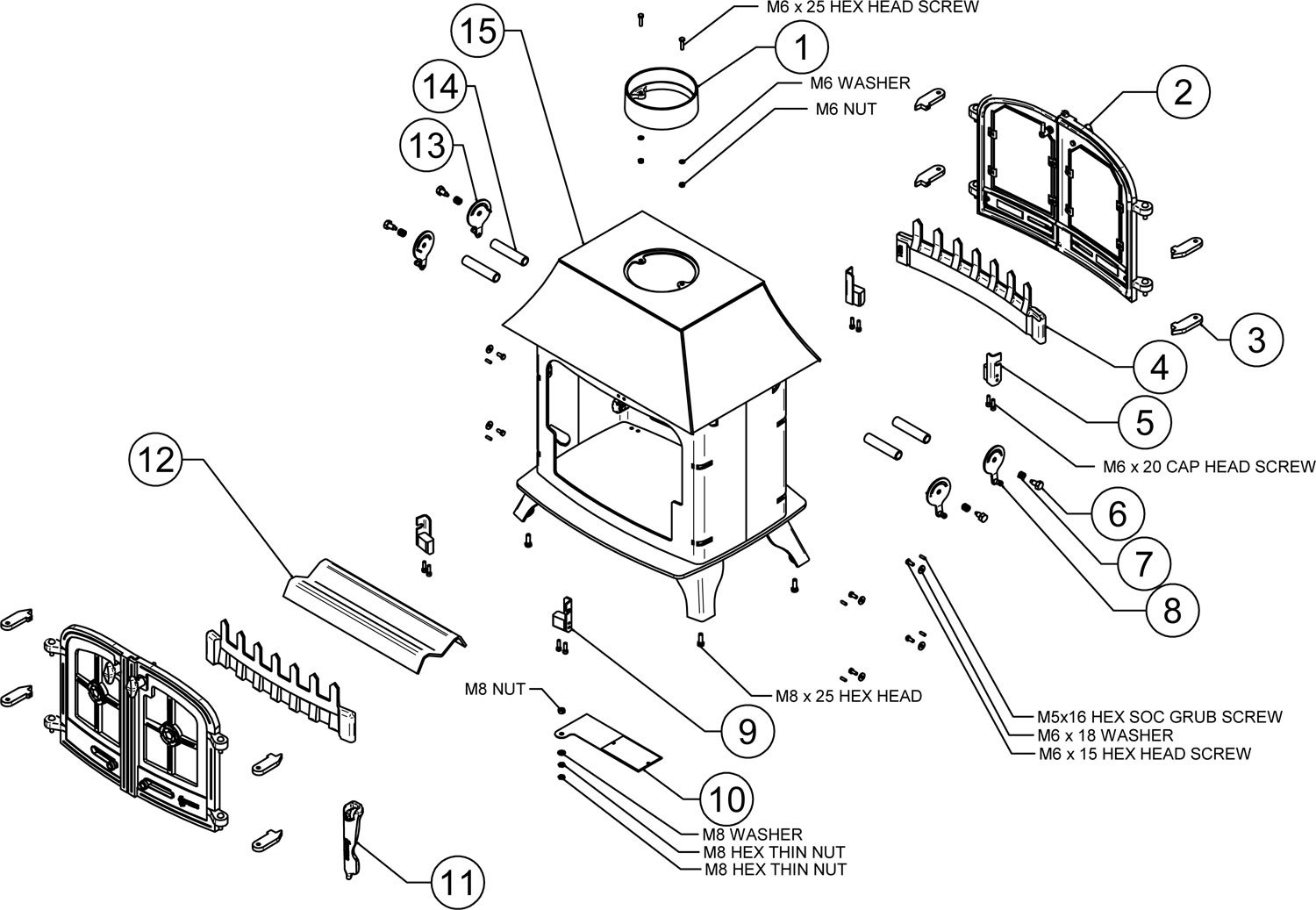

Drawing: PR9907-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5702 |
|
13mm Black Door Rope Seal with Adhesive - 2.5m Pack | In Stock £58.50 | ||
| 2 | 4952 |  |
15 x 2mm Mid Door Rope Seal - 2m Pack | In Stock £17.45 | ||
| 3 | YM-C00353 |
|
Yeoman Traditional Glass Clip for Serial Numbers Prefixed BYM and PRE CE
| In Stock £2.05 | ||
| 4 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.85 | ||
| 5 | GL0253 |
|
County CE 6 Sided Door Glass - Single Piece Dimensions: 206 x 253mm (w x h)
| In Stock £40.25 | ||
| 6 | YM-YM05001 |
|
County CE Right Hand Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | MEC9870 |
|
County Double Door Mk2 Primary Air Slider Back Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CE8043 |
|
County Double Door Mk2 Primary Air Sealing Sleeve | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC9683 |
|
County/Devon/Exe Double Door Mk2 Primary Air Slider | In Stock £9.80 | ||
| 10 | RA503156 |
|
County/Devon/Exe Double Door Mk2 Primary Air Slider Internal Plate | In Stock £15.46 | ||
| 11 | ME601147 |
|
County Double Door Mk2 Primary Air Slider Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | CA7727 |
|
County Double Door Mk2 Right Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | CA7728 |
|
County Double Door Mk2 Left Hand Door Frame
This part will soon be obsolete |
In Stock £289.00 | ||
| 14 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 15 | CA7718 |
|
County/Devon/Exe Double Door Mk2 Right Hand Door Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | YM-C00128 |
|
County/Devon/Exe Left Hand Door Knob - Black | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 18 | ME601024 |
|
County/Devon/Exe Mk2 Hinge Pin - Knurled | In Stock £5.75 | ||
| 19 | YM-YM05101 |
|
County CE Left Hand Door Frame Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | ME600647 |
|
Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | Available to Order £18.85 | ||
| 21 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | |||

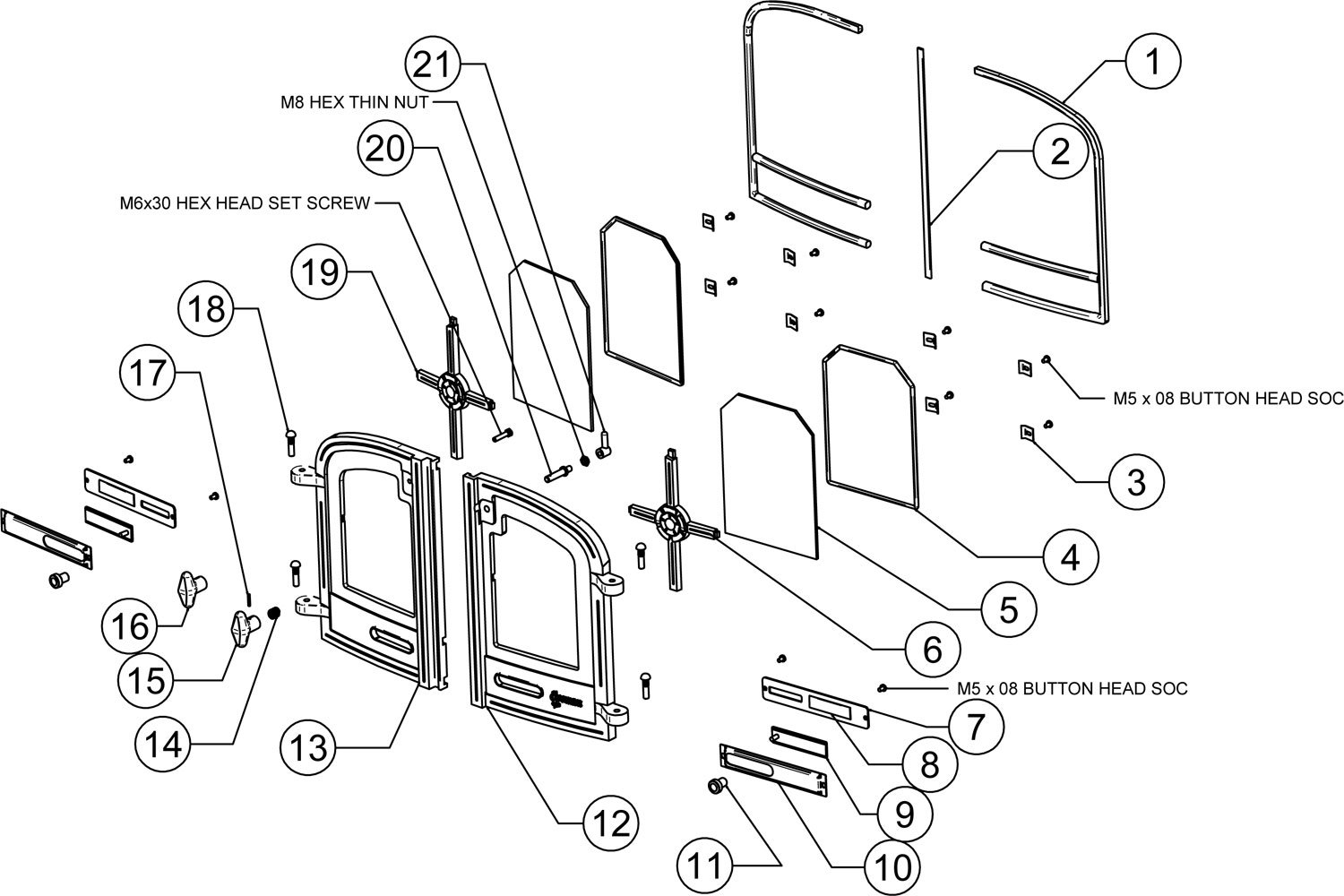

Drawing: PR9720-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

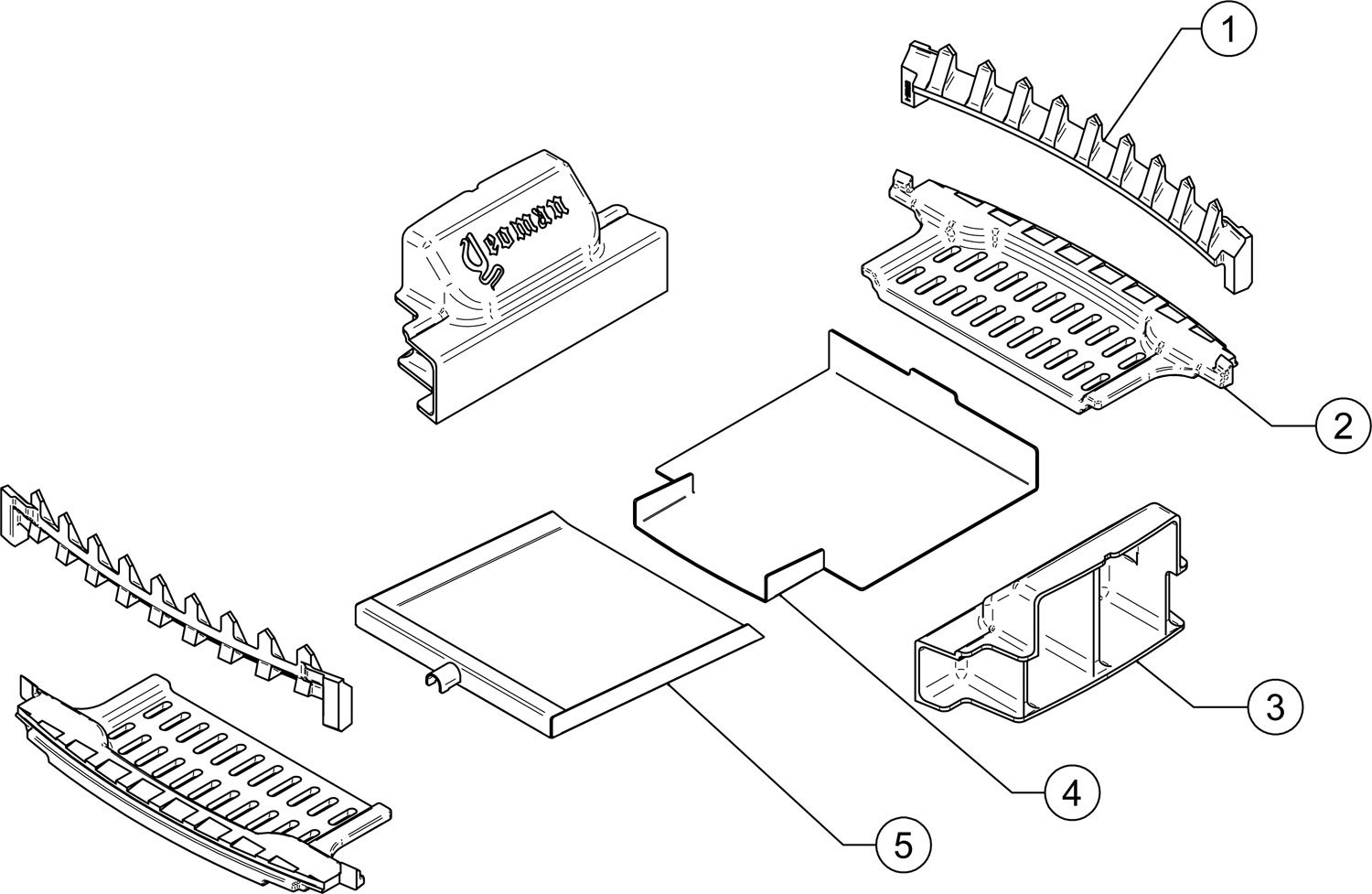

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7695 |
|
County 60HB CE MF Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM40070 |
|
County Double Sided Single Depth Double Door CE Cast Grate - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | CA7756 |
|
County Double Sided Double Door Single Depth Mk2 Side Grate Support - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 + 5 | MEC9951 |
|
County Double Sided Double Door Single Depth Mk2 Ashpan Assembly
This part will soon be obsolete |
In Stock £60.00 | ||
| 5 | N/A Assembly |
|
See part 4
| This part cannot be ordered individually and is sold as part of an assembly. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-COU-SDWHC2
DIMENSIONS:
768 x 935 x 590mm (w x h x d)
