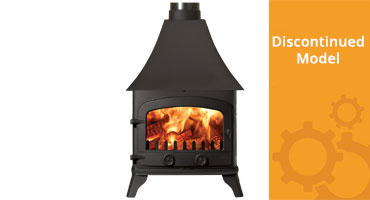

Mk2 Yeoman County High Canopy, Single Door, Wood Burning Stove
YM-COU-WHC1
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | MEC9750 |
|
County Mk2 High Canopy | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YM00510 |
|
County/Devon/Exe CE 6" Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | 5000 |  |
14mm Door Rope Seal with Adhesive - 2m Pack | In Stock £28.50 | ||
| 5 | YM-YM00510 |
|
County/Devon/Exe CE 6" Blanking Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | CE8025 |
|
County Mk2 Upper Side Firebrick Dimensions: 290 x 250 x 25mm (w x h x d)
| In Stock £38.75 | ||
| 8 | CE8039 |
|
County WB Mk2 Lower Side Firebrick Dimensions: 290 x 92 x 25mm (w x h x d)
| In Stock £22.00 | ||
| 9 | MEC9838 |
|
County Mk2 Right Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-C05957 |
|
County Tertiary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | YM-C05007CE |
|
County CE Baffle Plate
This part will soon be obsolete |
In Stock £159.00 | ||
| 13 | CA7754 |
|
County CE Log Guard for Wood Burning models only
This part will soon be obsolete |
In Stock £71.26 | ||
| 14 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 15 | ME601108 |
|
County/Devon/Exe Mk2 Adjustable Door Hinge | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | MEC9644 |
|
County Single Door Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | MEC9767 |
|
County Mk2 Airwash Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | ME601037 |
|
County/Devon/Exe/Exmoor Mk2 M6 Airwash Slider Screw
This part will soon be obsolete |
In Stock £6.46 | ||
| 19 | MEC9837 |
|
County Mk2 Left Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | YM-C00008 |
|
Baffle Extension Tube | In Stock £14.05 | ||
| 21 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||

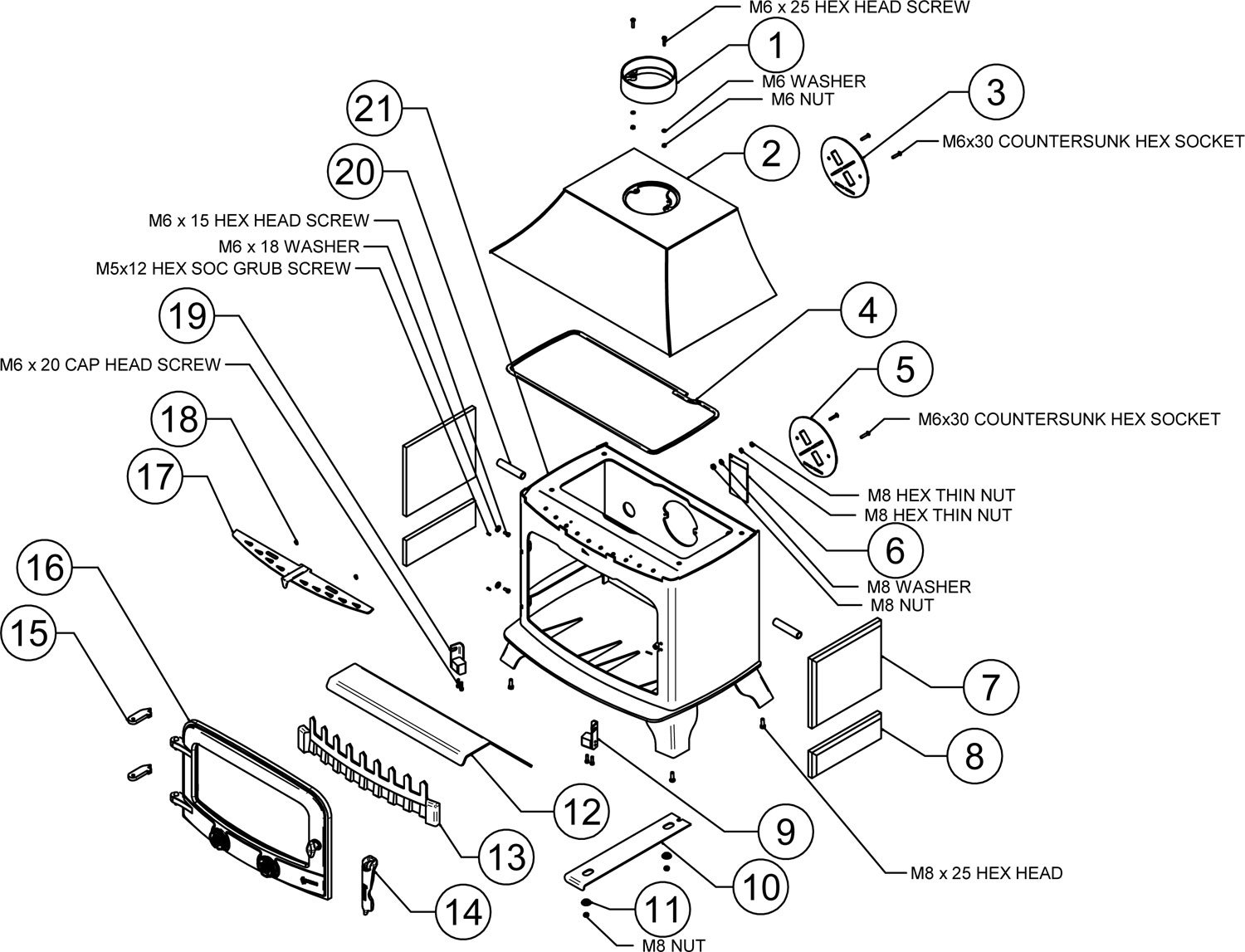

Drawing: PR9715-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-C00353 |
|
Yeoman Traditional Glass Clip | In Stock £2.05 | ||
| 2 | GL0254 |
|
County Curved Single Door Glass Dimensions: 492 x 257mm (w x h)
| Available to Order £215.00 | ||
| 3 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £16.10 | ||
| 4 | 5702 |
|
13mm Black Door Rope Seal with Adhesive - 2.5m Pack | In Stock £58.50 | ||
| 5 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 6 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 7 | CA7723 |
|
Yeoman Traditional Single Door Mk2 Door Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CA7726 |
|
County Single Door Mk2 Single Door Frame
This part will soon be obsolete |
In Stock £209.00 | ||
| 9 | YM-YM74058 |
|
County/Devon/Exe/Exmoor CE Rose Primary Air Spinner
This part will soon be obsolete |
In Stock £9.35 | ||
| 10 | ME601024 |
|
County/Devon/Exe Mk2 Hinge Pin - Knurled | In Stock £5.75 | ||
| 11 | ME601034 |
|
County/Devon/Exe/Exmoor Single Door Mk2 Door Handle Spindle | In Stock £9.35 | ||
| 12 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | |||
Drawing: PR9719-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7695 |
|
County 60HB CE MF Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM05070B |
|
County CE Rear Main Grate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YM05070F |
|
County CE Front Main Grate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | MEC9522 |
|
County Mk2 Single Ashpan | In Stock £91.40 | ||
| 5703 |
|
10mm Black Rope P-Seal - 750mm Pack | In Stock £23.00 | |||
Drawing: PR9722-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-COU-WHC1
DIMENSIONS:
750 x 941 x 506mm (w x h x d)
