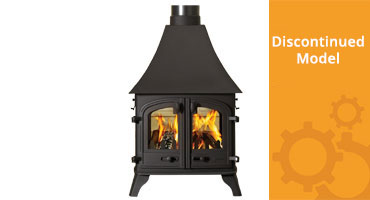

Mk1 Yeoman County Double Sided, Double Depth Stove – Discontinued, limited parts available
YM-W9322FL YM-W9322FLBL YM-W9322FLBR YM-W9322FLGR YM-W9322LC YM-W9322LCBL YM-W9322LCBR YM-W9322LCGR YM-W9322HC YM-W9322HCBL YM-W9322HCBR YM-W9322HCGR
-
Mk1 Yeoman County Double Sided, Double Depth Stove – Discontinued, limited parts available
-

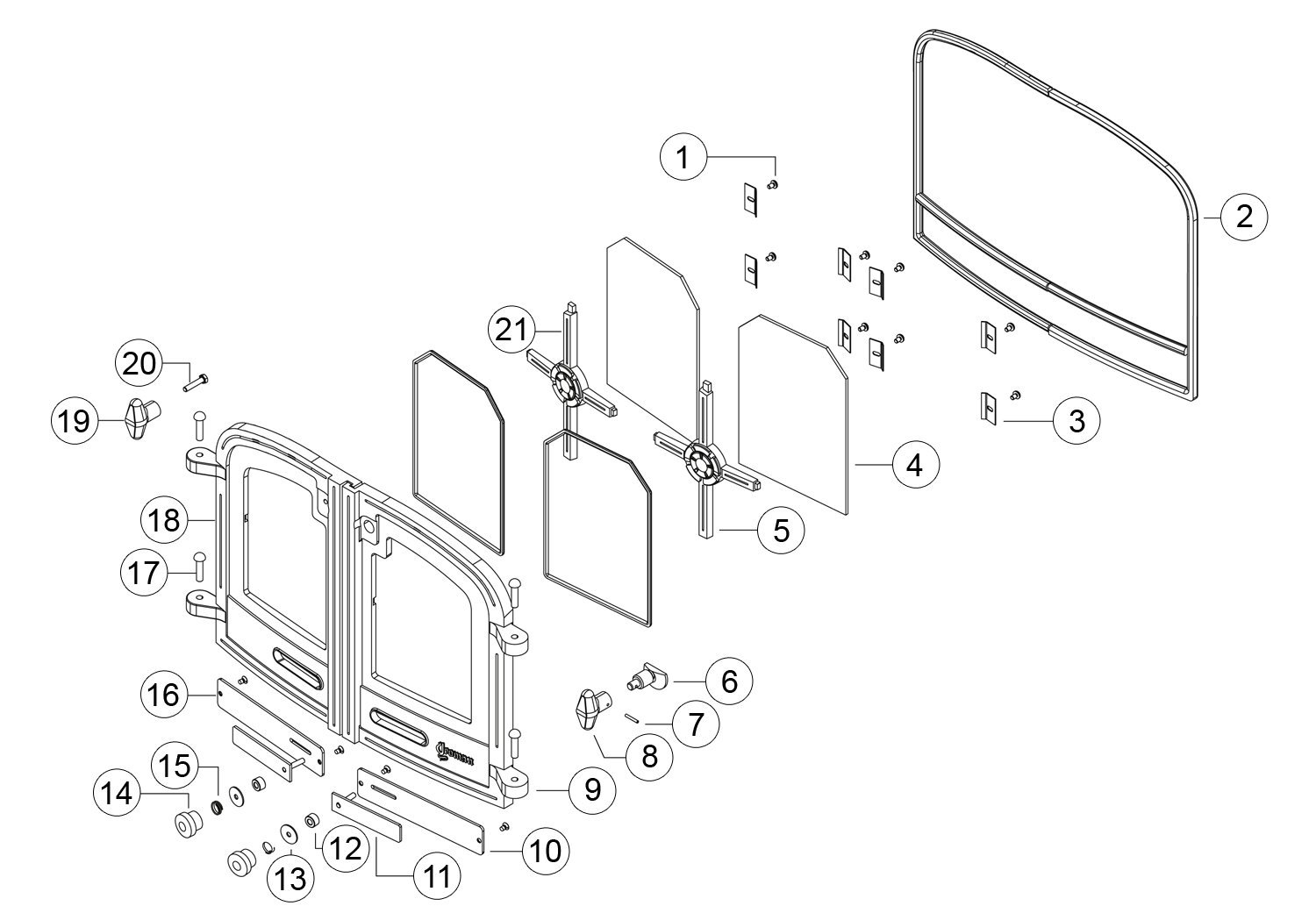

Two Door Assembly
-

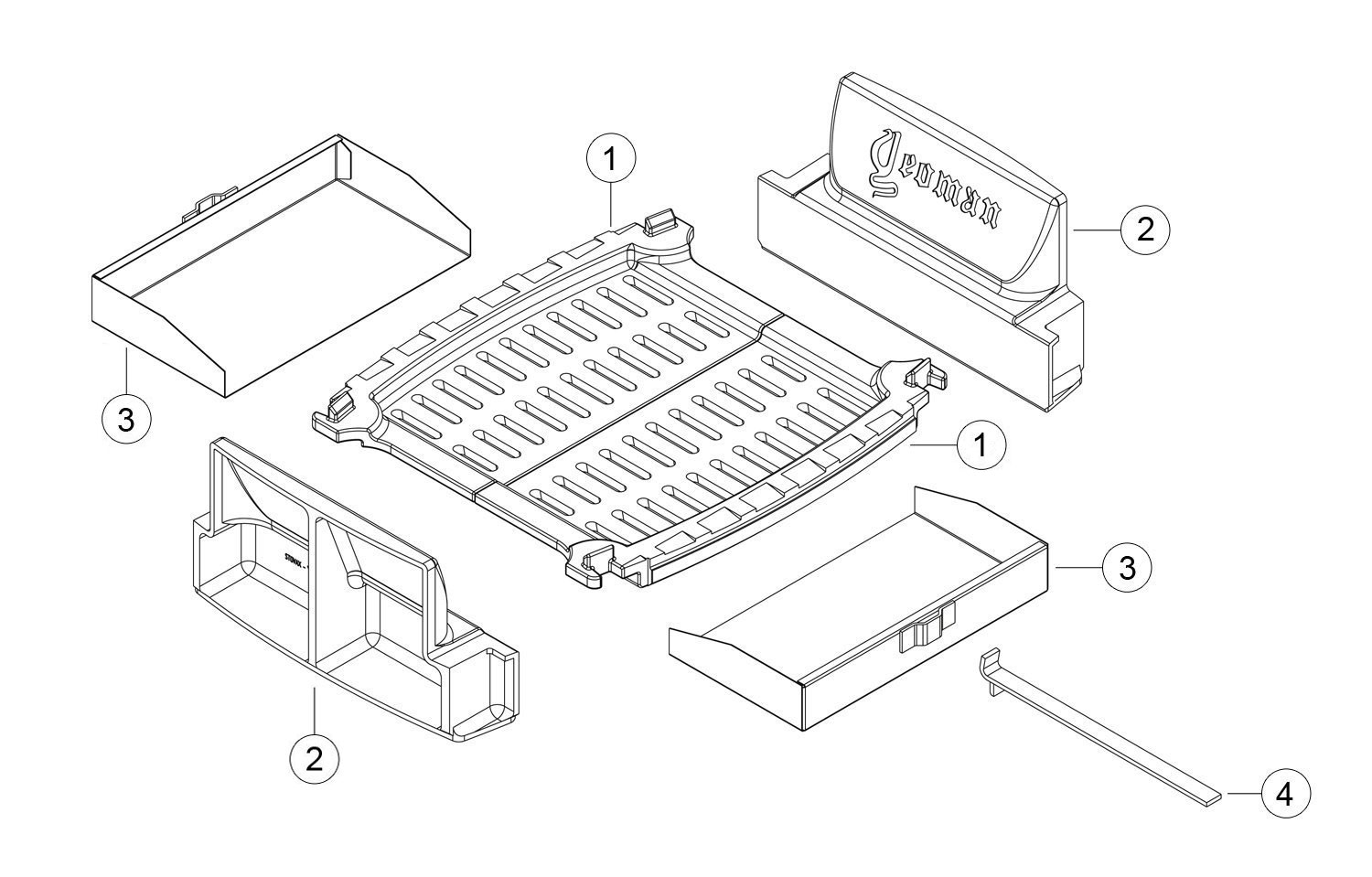

Multi-fuel Kit

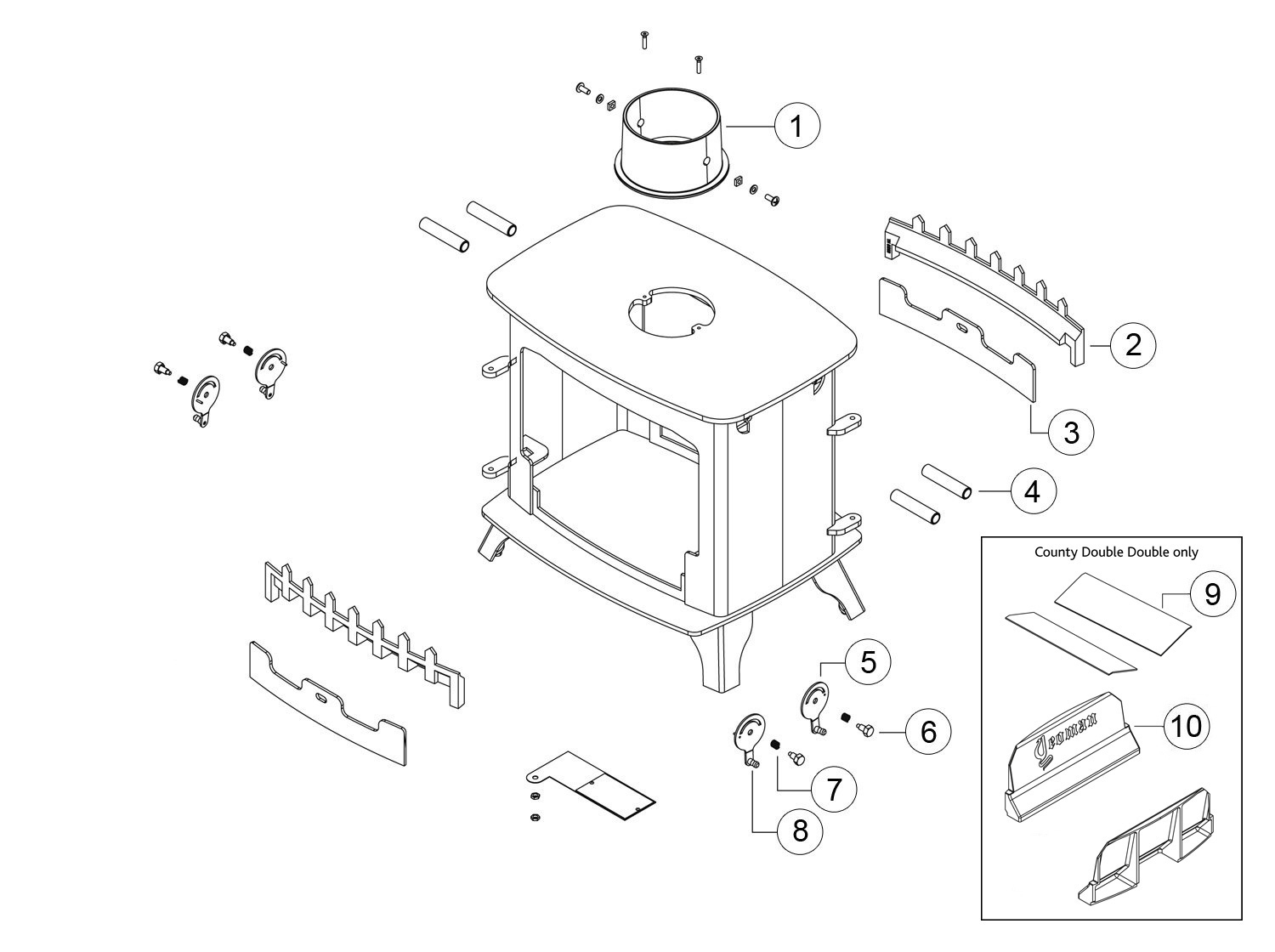

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-YM00545 |
|
County/Devon/Exe Mk1 6" Flue Adapter for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | CA7754 |
|
County CE Log Guard for serial numbers prefixed BYM
This part will soon be obsolete |
In Stock £71.26 | ||
| 2 | YM-YM00035 |
|
County/Devon/Exe Pre CE Log Guard | In Stock £72.76 | ||
| 3 | YM-YA05422 |
|
County Mk1 WB Drop in Ashpan Cover for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YA05251 |
|
County Pre CE WB Drop in Ashpan Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | YM-C00008 |
|
Baffle Extension Tube for serial numbers prefixed BYM and Pre CE
| In Stock £14.05 | ||
| 5 | YM-YA40661 |
|
County Double Sided Double Door Mk2 Left Hand Airwash Spinner Assembly for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YA05857 |
|
County Pre CE Left Hand Side Air Control Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030CE |
|
County/Devon/Exe Double Sided Mk2 Airwash Spinner Bolt for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030 |
|
County Pre CE Airwash Spinner Bolt Pre CE models
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | FA9017 |
|
Airwash Spinner Spring for serial numbers prefixed BYM and Pre CE
| In Stock £3.16 | ||
| 8 | YM-YA40658 |
|
County Double Sided Double Door Mk2 Right Hand Airwash Spinner Assembly for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | YM-YA05957 |
|
County Pre CE Right Hand Side Air Control Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-C43007CE |
|
County Double Sided Double Door Double Depth Mk2 Baffle Plate for serial numbers prefixed BYM
This part will soon be obsolete |
In Stock £185.00 | ||
| 9 | YM-C43007 |
|
County Double Depth Double Sided Pre CE Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-YM44081 |
|
County Double Sided Double Depth Double Door Mk2 Side Fuel Reducer | This part is now obsolete and can no longer be ordered as a spare. | ||
| YM-YM00067 |
|
Mk1/Pre CE Door and Riddling Tool for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw for serial numbers prefixed BYM and PRE CE
| In Stock £0.49 | ||
| 2 | YM-E00100 |
|
Yeoman Door and Glass Rope Seal Pack for serial numbers prefixed BYM
| Available to Order £44.95 | ||
| 3 | YM-C00353 |
|
Yeoman Traditional Glass Clip for serial numbers prefixed BYM and PRE CE
| In Stock £2.05 | ||
| 4 | GL0253 |
|
County CE 6 Sided Door Glass - Single Piece Dimensions: 206x253mm. For serial numbers prefixed BYM
| In Stock £40.25 | ||
| 4 | GL0240 |
|
County/Devon/Exe Pre CE 4 Sided Door Glass - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | GL0048 |
|
County/Devon/Exe Pre CE 5 Sided Door Glass - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YM05001 |
|
County CE Right Hand Door Cross Guard for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YM00001 |
|
County/Devon/Exe Pre CE Right Hand Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-B00030CE |
|
Yeoman Traditional Mk1 Door Knob and M18 Locking Cam
for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-B00030 |
|
Yeoman Traditional Pre CE M18 Locking Cam | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin for serial numbers prefixed BYM and Pre CE
| In Stock £0.49 | ||
| 8 | YM-C00228 |
|
County/Devon/Exe Mk1/Pre CE Right Hand Door Knob - Black for serial numbers prefixed BYM and Pre CE
| In Stock £36.50 | ||
| 8 | YM-A9905 |
|
County/Devon/Exe Mk1/Pre CE Right Hand Door Knob - Brass for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM05907 |
|
County Mk1 Right Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM00907 |
|
County/Devon/Exe Pre CE Right Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | N/A |
|
Only used on Devon and Exe stoves
| This part is not currently available. | ||
| 11 | YM-YA00057CE |
|
County Mk1/Pre CE Primary Air Slider Assembly for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | YM-B00258 |
|
County/Devon/Exe Mk1/Pre CE Primary Air Slider Spacer for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-F00068 |
|
M5 x 25mm Penny Washer for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | YM-B00158 |
|
County/Devon/Exe Mk1/Pre CE Primary Air Slider Knob for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | YM-B00158 |
|
County/Devon/Exe Mk1/Pre CE Primary Air Slider Knob for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | N/A |
|
Only used on Devon and Exe stoves
| This part is not currently available. | ||
| 17 | YM-F00106 |
|
Mk1 5/6" Hinge Pin
for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | YM-YM05908 |
|
County Mk1 Left Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | YM-YM00908 |
|
County/Devon/Exe Pre CE Left Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | YM-C00128 |
|
County/Devon/Exe Left Hand Door Knob - Black for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | YM-A9904 |
|
County/Devon/Exe Mk1/Pre CE Left Hand Door Knob - Brass for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | YM-F00098 |
|
M6 x 30mm Hex Head Set Screw - Single Screw for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | YM-YM05101 |
|
County CE Left Hand Door Frame Door Cross Guard for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | YM-YM00101 |
|
County/Devon/Exe Pre CE Left Hand Door Frame Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-YM05054 |
|
County Pre CE Cast Grate | In Stock £176.00 | ||
| 2 | YM-YA43038 |
|
County Double Depth Double Sided Pre CE Grate Side Support | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YA05003 |
|
County Pre CE Ashpan | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | YM-C00008 |
|
Baffle Extension Tube | In Stock £14.05 | ||
| YM-YM00068 |
|
County/Devon/Exe Pre CE Deepening Bar | This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-W9322FL YM-W9322FLBL YM-W9322FLBR YM-W9322FLGR YM-W9322LC YM-W9322LCBL YM-W9322LCBR YM-W9322LCGR YM-W9322HC YM-W9322HCBL YM-W9322HCBR YM-W9322HCGR
DIMENSIONS:
796 x 597 x 875mm (w x h x d)
