Mk2 Yeoman Devon Double Door, Double Sided, Double Depth, Flat Top, Woodburning Stoves
YM-DEV-DDW2
-
Mk2 Yeoman Devon Double Door, Double Sided, Double Depth, Flat Top, Woodburning Stoves
-
Door Assembly
-
Multi-fuel Kit
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | MEC9649 |
|
Devon Double Door Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | ME601108 |
|
County/Devon/Exe Mk2 Adjustable Door Hinge | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CA7753 |
|
Devon/Exe WB Mk2 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | MEC9781 |
|
Devon/Exe Mk2 Left Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030CE |
|
County/Devon/Exe Double Sided Mk2 Airwash Spinner Bolt for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | FA9017 |
|
Airwash Spinner Spring for serial numbers prefixed BYM and PRE CE
| In Stock £3.16 | ||
| 8 | YM-YA33661 |
|
Devon/Exe Double Sided Left Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC9782 |
|
Devon/Exe Mk2 Right Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | N/A Carcass |
|
Welded Carcass Assembly Part of the carcass
| This part is not serviceable and cannot be ordered as a spare. | ||
| 11 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 12 | YM-C37007CE |
|
Devon Double Depth Double Sided Baffle Plate (CE) | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-YA33958 |
|
Devon Double Sided Mk2 Right Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | YM-C00008 |
|
Baffle Extension Tube | In Stock £14.05 | ||
| 15 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||
Drawing: PR9903-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5702 |
|
13mm Black Door Rope Seal with Adhesive - 2.5m Pack | In Stock £58.50 | ||
| 2 | 4952 |  |
15 x 2mm Mid Door Rope Seal - 2m Pack | In Stock £17.45 | ||
| 3 | YM-C00353 |
|
Yeoman Traditional Glass Clip for serial numbers prefixed BYM and PRE CE
| In Stock £2.05 | ||
| 4 | 4950 |  |
15 x 2mm Self Adhesive Tape Seal - 2m Pack | In Stock £16.85 | ||
| 5 | GL0251 |
|
Devon/Exe CE 6 Sided Door Glass - Single Piece | In Stock £24.25 | ||
| 6 | YM-YM81001 |
|
Devon/Exe CE Right Hand Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | MEC9861 |
|
Devon Double Door Mk2 Primary Air Slider Back Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CE8048 |
|
Devon/Exe Double Door Mk2 Primary Air Sealing Sleeve | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC9683 |
|
County/Devon/Exe Double Door Mk2 Primary Air Slider | In Stock £9.80 | ||
| 10 | RA503156 |
|
County/Devon/Exe Double Door Mk2 Primary Air Slider Internal Plate | In Stock £15.46 | ||
| 11 | ME601047 |
|
Devon/Exe Double Door Mk2 Primary Air Slider Knob | In Stock £145.00 | ||
| 12 | CA7719 |
|
Devon/Exe Double Door Mk2 Right Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | CA7729 |
|
Devon/Exe Double Door Mk2 Left Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 15 | CA7718 |
|
County/Devon/Exe Double Door Mk2 Right Hand Door Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 16 | YM-C00128 |
|
County/Devon/Exe Left Hand Door Knob - Black | This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 18 | ME601024 |
|
County/Devon/Exe Mk2 Hinge Pin - Knurled | In Stock £5.75 | ||
| 19 | YM-YM81101 |
|
Devon/Exe CE Left Hand Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | ME600647 |
|
Stockton/County/Devon/Exe Double Door Mk2 Door Spindle Shaft | Available to Order £18.85 | ||
| 21 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| SM29 |
|
M5 x 8mm Button Head Screw - Single Screw | In Stock £0.49 | |||

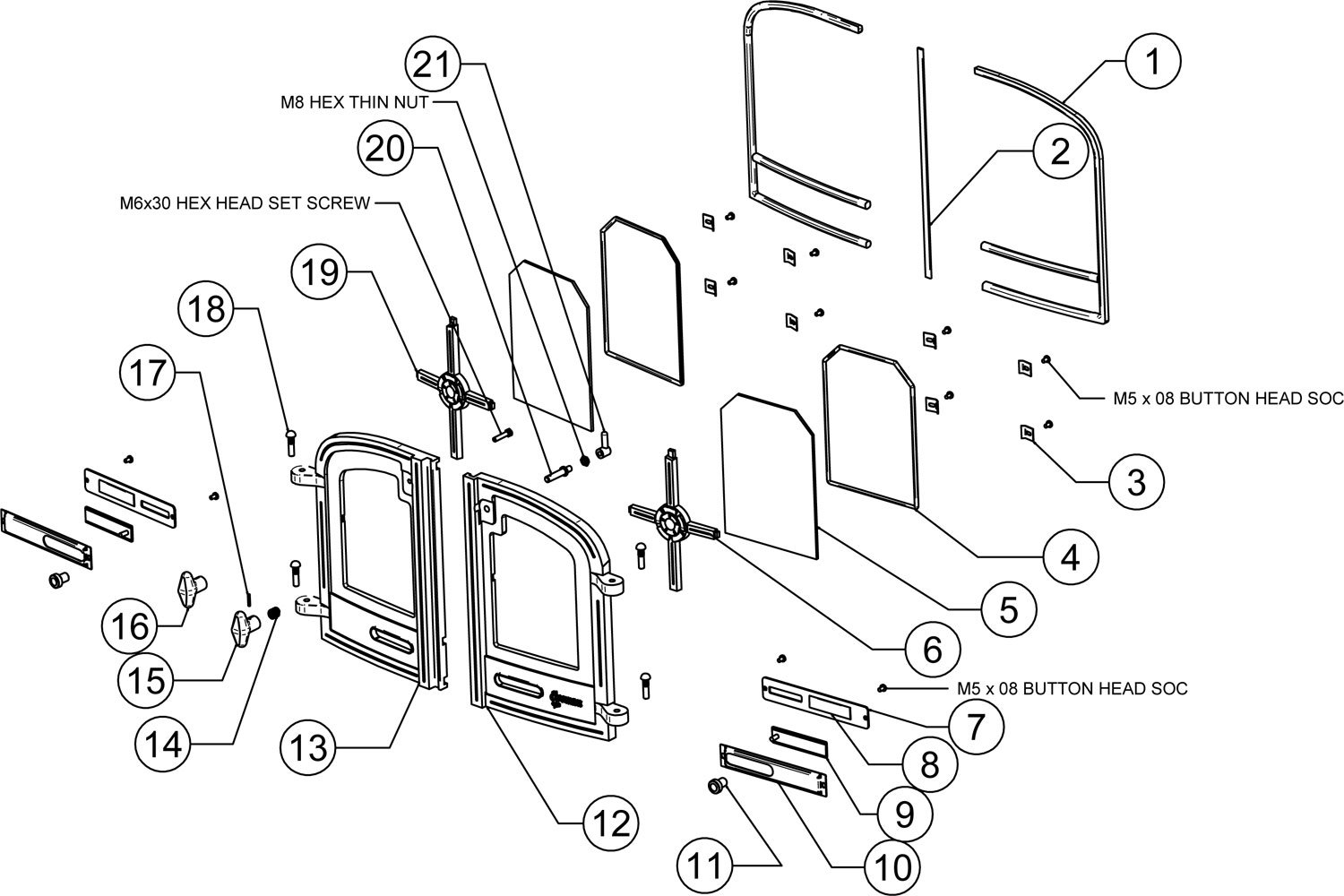

Drawing: PR9720-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7694 |
|
Devon/Exe Mk2 MF Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM37070 |
|
Devon Double Sided Double Depth Mk2 MF Main Grate - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YM37072 |
|
Devon Double Sided Double Depth Mk2 MF Left Hand Grate Side Support - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RA503326 |
|
Devon Double Sided Double Depth Mk2 MF Ashpan Support Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YM37073 |
|
Devon Double Sided Double Depth Mk2 MF Right Hand Grate Side Support - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | MEC9887 |
|
Devon Double Sided Double Depth Mk2 MF Ashpan
This part will soon be obsolete |
In Stock £40.75 | ||
| 4+6 | MEC9949 |
|
Devon Double Sided Double Depth Mk2 Complete Ashpan and Support Plate Assembly
This part will soon be obsolete |
In Stock £66.00 | ||

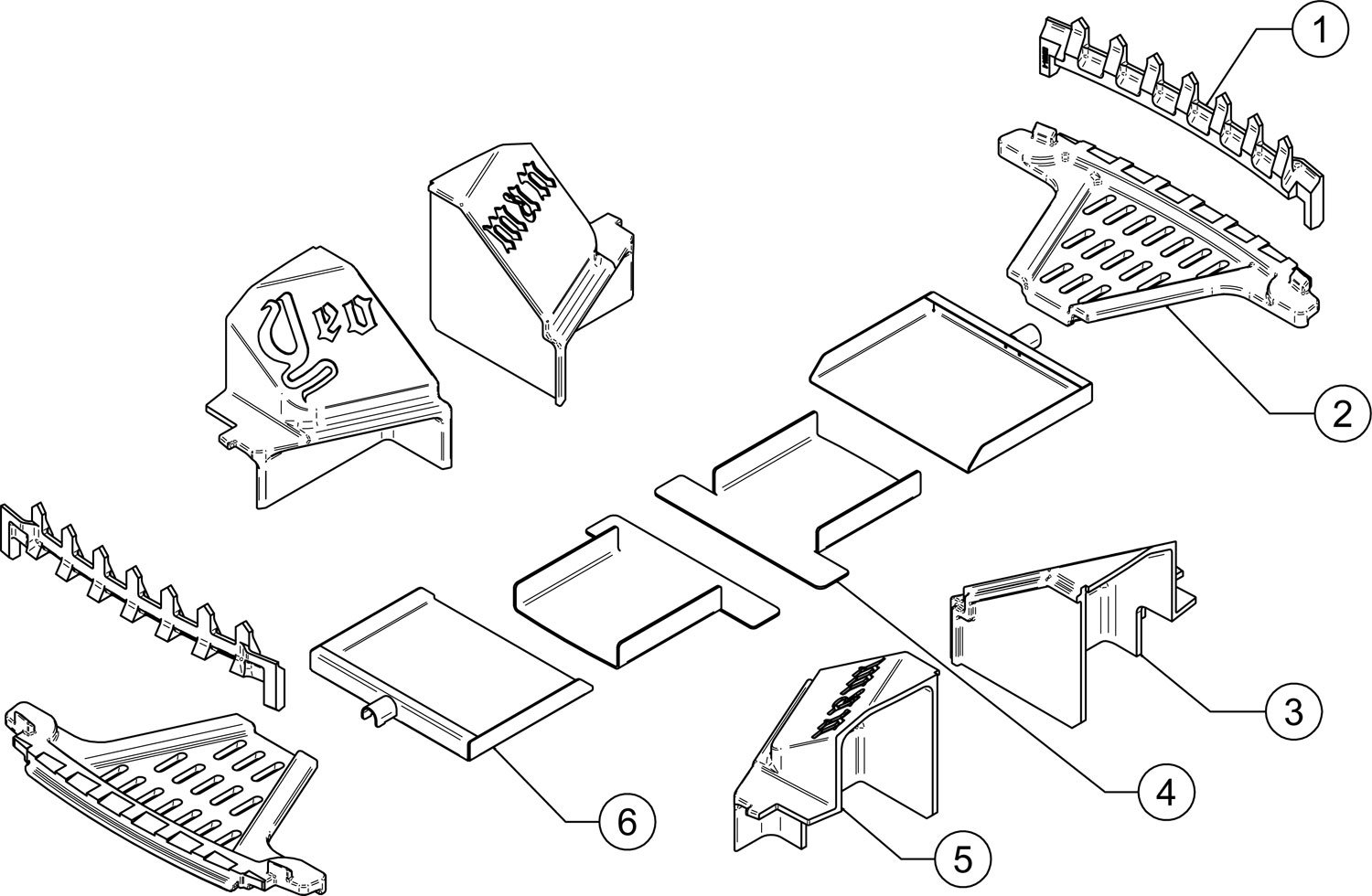

Drawing: PR9898-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-DEV-DDW2
DIMENSIONS:
641 x 563 x 655mm (w x h x d)
