Mk2 Yeoman Devon Single Door Double Sided Single Depth Flat Top Wood Burning Stove
YM-DEV-SDW1
-
Mk2 Yeoman Devon Single Door Double Sided Single Depth Flat Top Wood Burning Stove
-

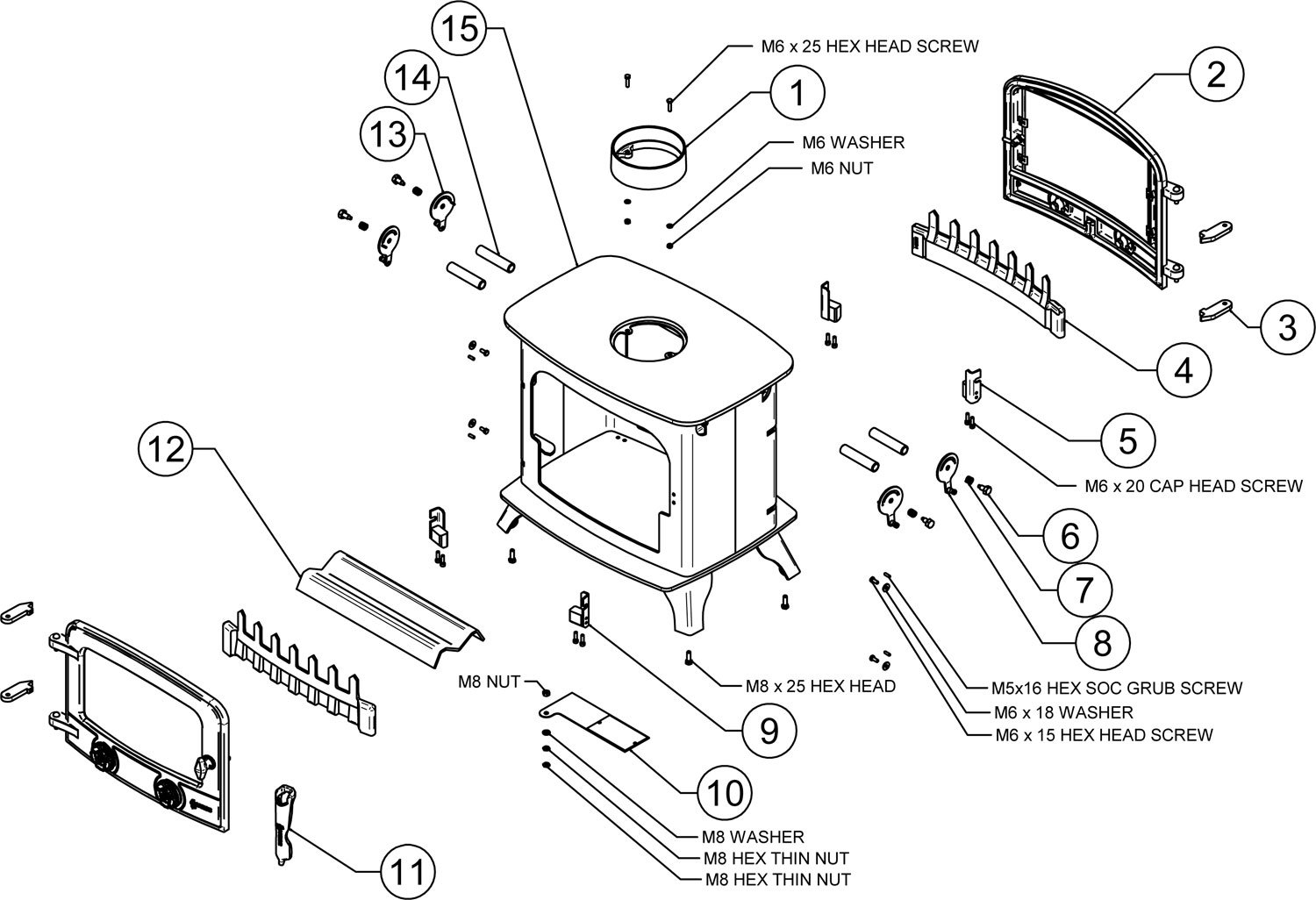

Door Assembly
-
Multi-fuel Kit
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | MEC9641 |
|
Devon Single Door Mk2 Complete Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | ME601108 |
|
County/Devon/Exe Mk2 Adjustable Door Hinge | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CA7753 |
|
Devon/Exe WB Mk2 Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | MEC9781 |
|
Devon/Exe Mk2 Left Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030CE |
|
County/Devon/Exe Double Sided Mk2 Airwash Spinner Bolt | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 8 | YM-YA33661 |
|
Devon/Exe Double Sided Left Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | MEC9782 |
|
Devon/Exe Mk2 Right Hand Log Guard Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | N/A |
|
Part of the carcass
| This part is not currently available. | ||
| 11 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | Available to Order £19.85 | ||
| 12 | YM-C34007CE |
|
Devon Double Sided Single Depth Mk2 Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-YA33958 |
|
Devon Double Sided Mk2 Right Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | YM-C00008 |
|
Baffle Extension Tube | In Stock £14.05 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-C00353 |
|
Yeoman Traditional Glass Clip | In Stock £2.05 | ||
| 2 | GL0252 |
|
Devon/Exe CE Curved Single Door Glass Dimensions: 383 x 223mm (w x h)
| In Stock £136.00 | ||
| 3 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack | In Stock £16.10 | ||
| 4 | 5702 |
|
13mm Black Door Rope Seal with Adhesive - 2.5m Pack | In Stock £58.50 | ||
| 5 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 6 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 7 | CA7723 |
|
Yeoman Traditional Single Door Mk2 Door Knob | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CA7725 |
|
Devon Single Door Mk2 Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM74058 |
|
County/Devon/Exe/Exmoor CE Rose Primary Air Spinner
This part will soon be obsolete |
In Stock £9.35 | ||
| 10 | ME601024 |
|
County/Devon/Exe Mk2 Hinge Pin - Knurled | In Stock £5.75 | ||
| 11 | ME601034 |
|
County/Devon/Exe/Exmoor Single Door Mk2 Door Handle Spindle | In Stock £9.35 | ||
| 12 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7694 |
|
Devon/Exe Mk2 MF Log Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM34070 |
|
Devon Double Sided Single Depth Mk2 MF Main Grate - Single Piece | In Stock £159.00 | ||
| 3 | YM-YM34072 |
|
Devon Double Sided Single Depth Mk2 MF Grate Side Support - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | RA503295 |
|
Devon Double Sided Single Depth Mk2 MF Ashpan Support Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | MEC9863 |
|
Devon Double Sided Single Depth Mk2 MF Ashpan | In Stock £61.25 | ||
| 4+5 | MEC9947 |
|
Devon Single Depth Mk2 Multi-fuel Kit Metalwork | This part is now obsolete and can no longer be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-DEV-SDW1
DIMENSIONS:
615 x 563 x 462mm (w x h x d)
