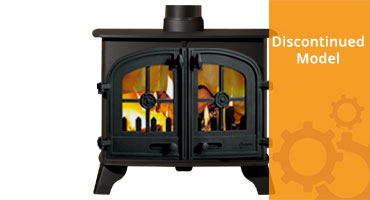

Mk1 Yeoman Devon Double Sided, Double Depth Stove
YM-W9221FL YM-W9221FLBL YM-W9221FLBR YM-W9221FLGR YM-W9221LC YM-W9221LCBL YM-W9221LCBR YM-W9221LCGR YM-W9222FL YM-W9222FLBL YM-W9222FLBR YM-W9222FLGR YM-W9222LC YM-W9222LCBL YM-W9222LCBR YM-W9222LCGR YM-W9222HC YM-W9222HCBL YM-W9222HCBR YM-W9222HCGR

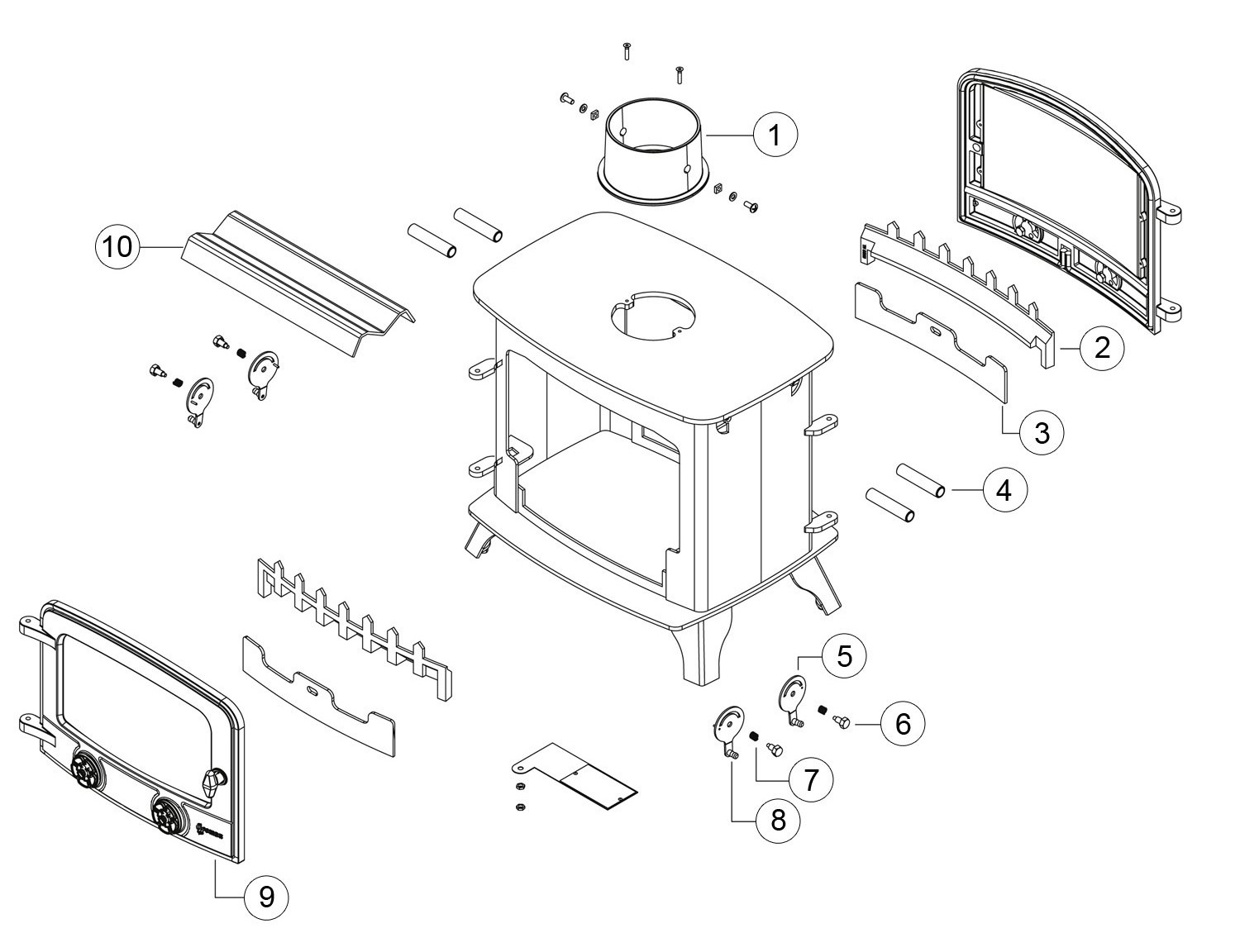

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-YM00545 |
|
County/Devon/Exe Mk1 6" Flue Adapter for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM81080 |
|
Devon/Exe Mk1 Log Guard for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 2 | YM-YM00035 |
|
County/Devon/Exe Pre CE Log Guard | In Stock £72.76 | ||
| 3 | YM-YA81422CE |
|
Devon/Exe Mk1 Drop in Ashpan Cover for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YA05251 |
|
County Pre CE WB Drop in Ashpan Cover | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | YM-C00008 |
|
Baffle Extension Tube for serial numbers prefixed BYM and Pre CE
| In Stock £14.05 | ||
| 5 | YM-YA33661 |
|
Devon/Exe Double Sided Left Hand Airwash Spinner for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YA00857 |
|
Devon Double Pre CE Left Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030CE |
|
County/Devon/Exe Double Sided Mk2 Airwash Spinner Bolt for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-F00030 |
|
County Pre CE Airwash Spinner Bolt Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | FA9017 |
|
Airwash Spinner Spring for serial numbers prefixed BYM and Pre CE
| In Stock £3.16 | ||
| 8 | YM-YA33958 |
|
Devon Double Sided Mk2 Right Hand Airwash Spinner for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | YM-YA00957 |
|
Devon Double Pre CE Right Hand Airwash Spinner | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM81906 |
|
Exe Mk1 Single Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM00906 |
|
County/Devon/Exe Pre CE Single Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-C37007CE |
|
Devon Double Depth Double Sided Baffle Plate (CE) for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-C37007 |
|
Devon Double Depth Double Sided Pre CE Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| YM-YM00067 |
|
Mk1/Pre CE Door and Riddling Tool for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

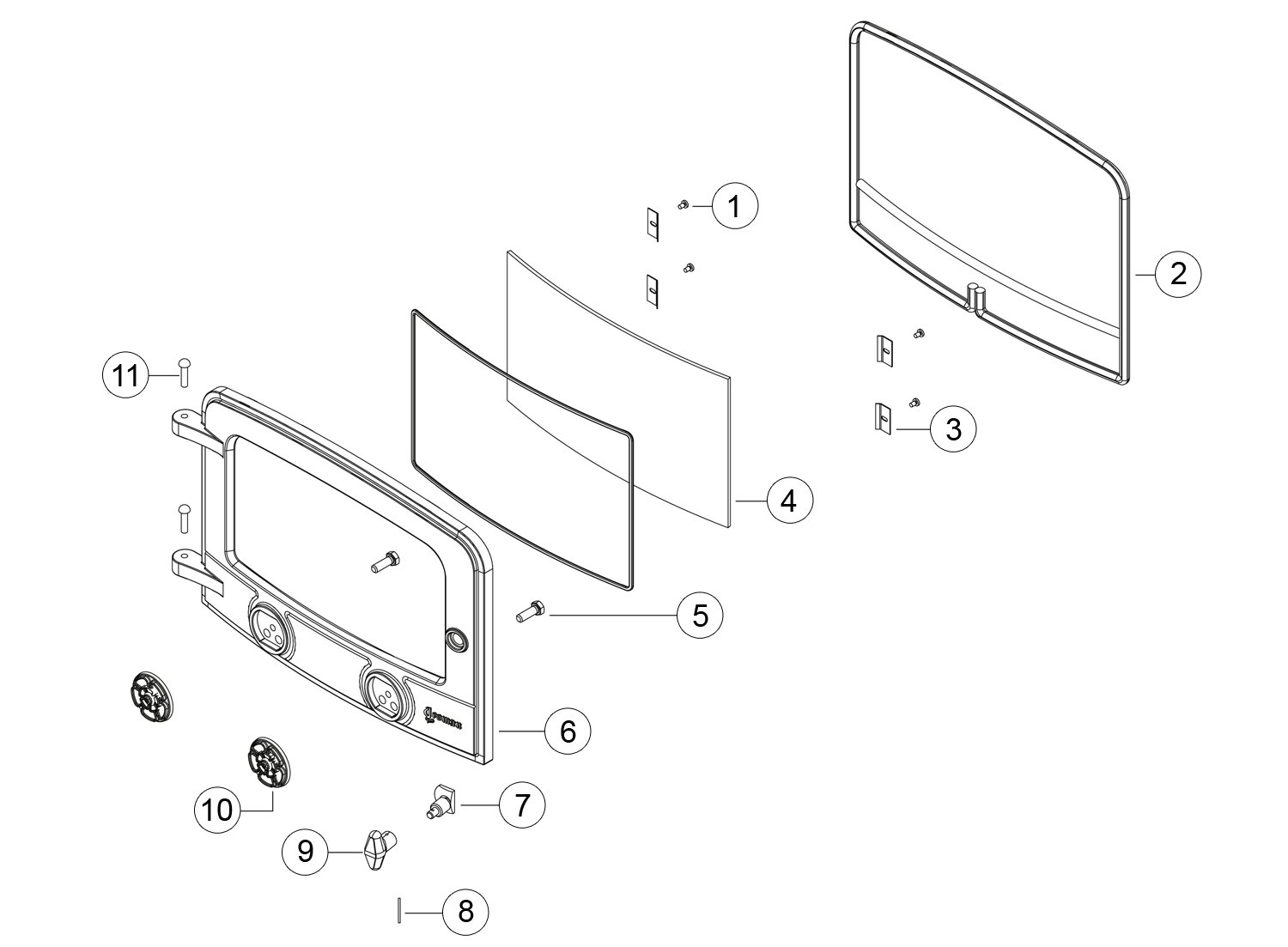

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw for serial numbers prefixed BYM and Pre CE
| In Stock £0.49 | ||
| 2 | YM-E00100 |
|
Yeoman Door and Glass Rope Seal Pack | Available to Order £44.95 | ||
| 3 | YM-C00353 |
|
Yeoman Traditional Glass Clip for serial numbers prefixed BYM and Pre CE
| In Stock £2.05 | ||
| 4 | GL0252 |
|
Devon/Exe CE Curved Single Door Glass Dimensions: 383 x 223mm. For serial numbers prefixed BYM
| In Stock £136.00 | ||
| 4 | GL0241 |
|
County/Devon/Exe Pre CE Curved Door Glass | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-F00010 |
|
M10 x 35mm Hex Head Screw - Single Screw for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-YM82906 |
|
Devon Mk1 Single Door Frame for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-YM00906 |
|
County/Devon/Exe Pre CE Single Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | YM-B00030CE |
|
Yeoman Traditional Mk1 Door Knob and M18 Locking Cam
for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | YM-B00030 |
|
Yeoman Traditional Pre CE M18 Locking Cam Please be advised due to the period of manufacture Yeoman cannot guarantee that the Locking Cam will fit all Pre CE models
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin for serial numbers prefixed BYM and Pre CE
| In Stock £0.49 | ||
| 9 | YM-C00328 |
|
Yeoman Traditional Door Knob - Black | In Stock £36.76 | ||
| 9 | YM-A9903 |
|
Brass Door Knob for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-YM74058 |
|
County/Devon/Exe/Exmoor CE Rose Primary Air Spinner for serial numbers prefixed BYM and Pre CE
This part will soon be obsolete |
In Stock £9.35 | ||
| 10 | YM-A9900 |
|
County/Devon/Exe Mk1 Plain Primary Air Spinner for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | YM-F00106 |
|
Mk1 5/6" Hinge Pin
for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

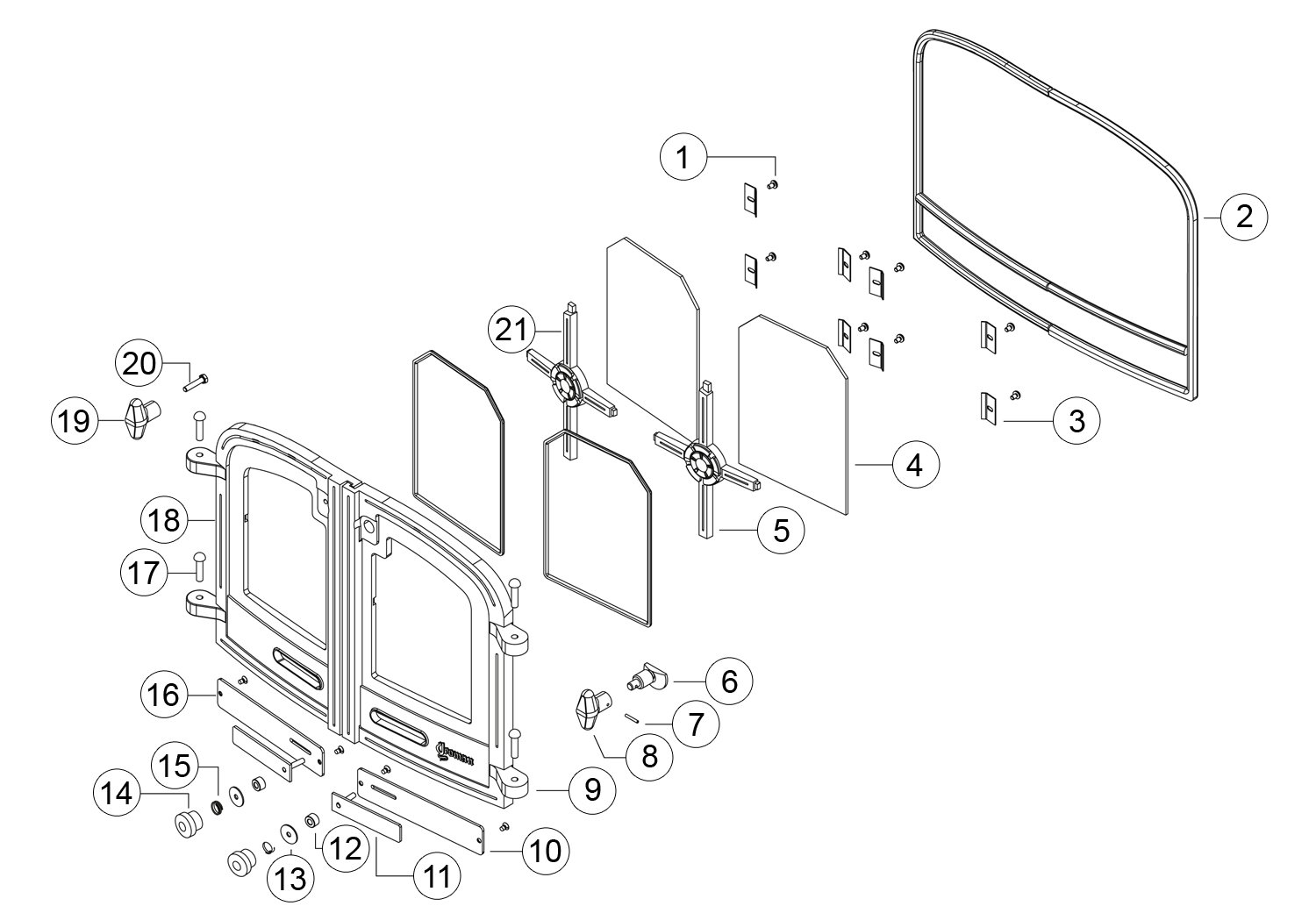

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SM29 |
|
M5 x 8mm Button Head Screw - Single Screw for serial numbers prefixed BYM and Pre CE
| In Stock £0.49 | ||
| 2 | YM-E00100 |
|
Yeoman Door and Glass Rope Seal Pack for serial numbers prefixed BYM
| Available to Order £44.95 | ||
| 3 | YM-C00353 |
|
Yeoman Traditional Glass Clip for serial numbers prefixed BYM and Pre CE
| In Stock £2.05 | ||
| 4 | GL0251 |
|
Devon/Exe CE 6 Sided Door Glass - Single Piece | In Stock £24.25 | ||
| 4 | GL0240 |
|
County/Devon/Exe Pre CE 4 Sided Door Glass - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | GL0048 |
|
County/Devon/Exe Pre CE 5 Sided Door Glass - Single Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YM81001 |
|
Devon/Exe CE Right Hand Door Cross Guard for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-YM00001 |
|
County/Devon/Exe Pre CE Right Hand Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-B00030CE |
|
Yeoman Traditional Mk1 Door Knob and M18 Locking Cam
for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | YM-B00030 |
|
Yeoman Traditional Pre CE M18 Locking Cam Please be advised due to the period of manufacture Yeoman cannot guarantee that the Locking Cam will fit all Pre CE models
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin for serial numbers prefixed BYM and Pre CE
| In Stock £0.49 | ||
| 8 | YM-C00228 |
|
County/Devon/Exe Mk1/Pre CE Right Hand Door Knob - Black for serial numbers prefixed BYM and Pre CE
| In Stock £36.50 | ||
| 8 | YM-A9905 |
|
County/Devon/Exe Mk1/Pre CE Right Hand Door Knob - Brass for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM81907 |
|
Devon/Exe Mk1 Right Hand Door Frame for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 9 | YM-YM00907 |
|
County/Devon/Exe Pre CE Right Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 10 | YM-C82087 |
|
Devon Mk1 Left and Right Air Slider Cover for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 11 | YM-YA82057 |
|
Devon Mk1 Primary Air Slider for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 12 | YM-B00258 |
|
County/Devon/Exe Mk1/Pre CE Primary Air Slider Spacer for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | YM-F00068 |
|
M5 x 25mm Penny Washer for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | YM-B00158 |
|
County/Devon/Exe Mk1/Pre CE Primary Air Slider Knob for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | YM-F00258 |
|
Primary Air Slider Spring for serial numbers prefixed BYM and Pre CE
This part will soon be obsolete |
Available to Order £4.70 | ||
| 16 | YM-C82087 |
|
Devon Mk1 Left and Right Air Slider Cover for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 17 | YM-F00106 |
|
Mk1 5/6" Hinge Pin
for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | YM-YM81908 |
|
Devon/Exe Mk1 Left Hand Door Frame for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | YM-YM00908 |
|
County/Devon/Exe Pre CE Left Hand Door Frame | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | YM-C00128 |
|
County/Devon/Exe Left Hand Door Knob - Black for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | YM-A9904 |
|
County/Devon/Exe Mk1/Pre CE Left Hand Door Knob - Brass for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 20 | YM-F00098 |
|
M6 x 30mm Hex Head Set Screw - Single Screw for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 21 | YM-YM81101 |
|
Devon/Exe CE Left Hand Door Cross Guard for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 22 | YM-YM00101 |
|
County/Devon/Exe Pre CE Left Hand Door Frame Door Cross Guard | This part is now obsolete and can no longer be ordered as a spare. | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

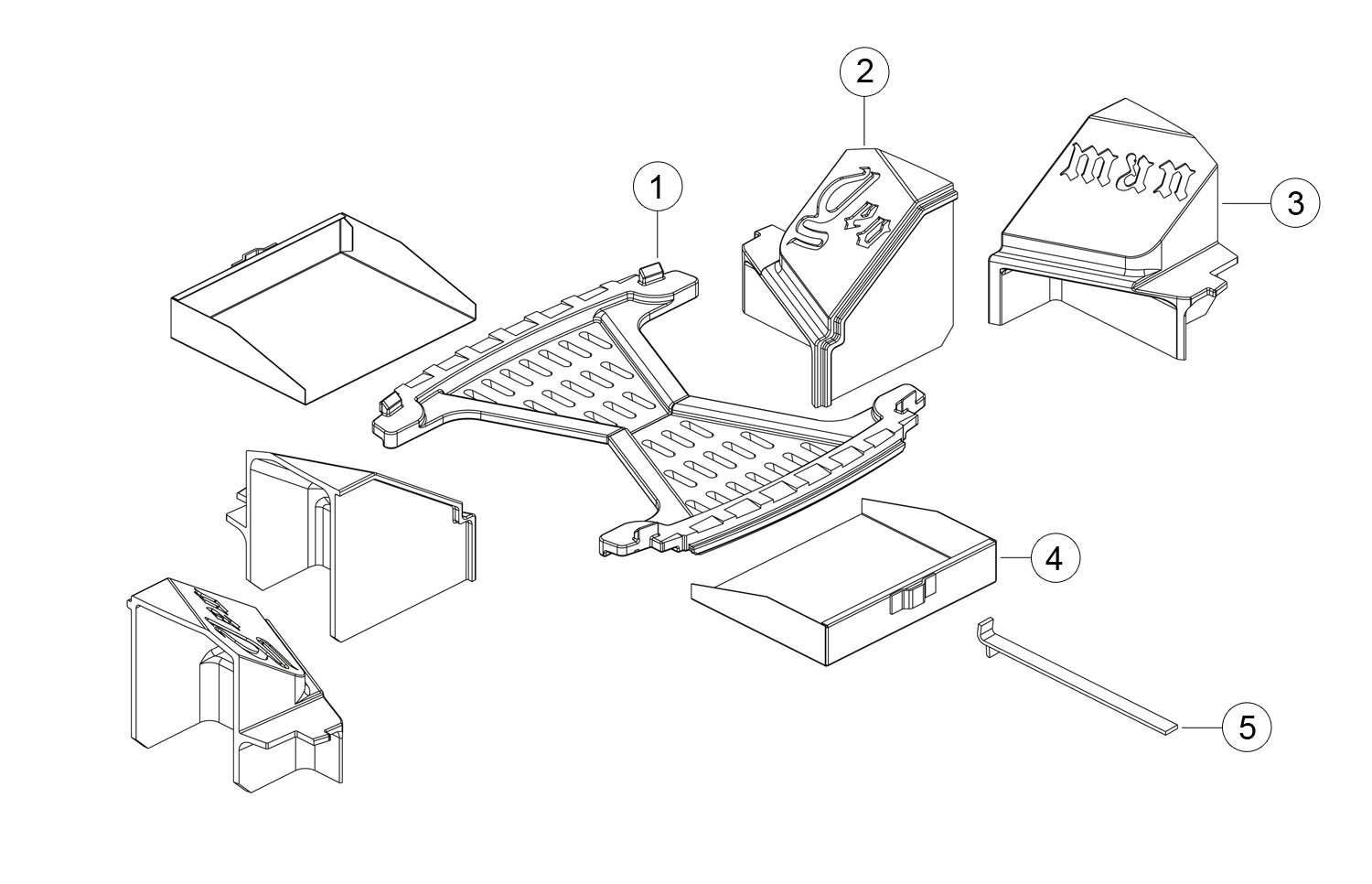

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | YM-YM37070 |
|
Devon Double Sided Double Depth Mk2 MF Main Grate - Single Piece for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 1 | YM-YM82054 |
|
Devon Pre CE Cast Grate | In Stock £109.00 | ||
| 2 | YM-YM37072 |
|
Devon Double Sided Double Depth Mk2 MF Left Hand Grate Side Support - Single Piece for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 3 | YM-YM37073 |
|
Devon Double Sided Double Depth Mk2 MF Right Hand Grate Side Support - Single Piece for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | YM-YA37003CE |
|
Devon Double Door Ashpan (CE) for serial numbers prefixed BYM
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | YM-YA30003 |
|
Devon Double Depth Double Sided Pre CE Ashpan Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 5 | YM-C00006 |
|
Yeoman Traditional Mk1 Ashpan Tool for serial numbers prefixed BYM and Pre CE
| This part is now obsolete and can no longer be ordered as a spare. | ||
| YM-YA37038 |
|
Devon Double Depth Double Sided Pre CE Grate Side Support | This part is now obsolete and can no longer be ordered as a spare. | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM-W9221FL YM-W9221FLBL YM-W9221FLBR YM-W9221FLGR YM-W9221LC YM-W9221LCBL YM-W9221LCBR YM-W9221LCGR YM-W9222FL YM-W9222FLBL YM-W9222FLBR YM-W9222FLGR YM-W9222LC YM-W9222LCBL YM-W9222LCBR YM-W9222LCGR YM-W9222HC YM-W9222HCBL YM-W9222HCBR YM-W9222HCGR
DIMENSIONS:
641 x 563 x 655mm (w x h x d)
