Mk2 Stockton 11 Wood Burning Flat Top Single Door Stove
ST11W1 ST11W1BL ST11W1BR ST11W1GR
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CA7687 |
|
Stockton 7/8/11/14/County/Devon/Exe/CL8 Mk2 6" Flue Adapter | In Stock £37.25 | ||
| 2 | CA7686 |
|
Stockton 7/8/11/14/CL8 Mk2 6" Blanking Plate | Available to Order £29.00 | ||
| 3 | ME500717 |
|
Data Plate Mount | This part is now obsolete and can no longer be ordered as a spare. | ||
| 4 | CE7928 |
|
Stockton 11 Mk2 Side Firebrick Please note: 3 Bricks Required Each Side (300x110x25mm)
| In Stock £16.06 | ||
| 5 | RA502882 |
|
Stockton 11 HB/County 60HB Mk2 Secondary Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | SM32 |  |
Stockton/View Mk2 CE Secondary Air Slider Bush | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1730mm Length Required
| In Stock £15.00 | ||
| 8 | SL27 |
|
Stockton 11 Cleanburn Chamber | Available to Order £225.00 | ||
| 9 | ME600841 |
|
Stockton 11 Mk2 Wood Retaining Plate | Available to Order £19.50 | ||
| 10 | SM18 |  |
M12 x 35mm Hinge Block Stud - Single Stud | Available to Order £10.70 | ||
| 11 | SM21 |
|
M12 x 6mm Hinge Block Locking Nut - Single Nut | In Stock £1.60 | ||
| 12 | SM10 |
|
Stockton Hinge Block | Available to Order £17.20 | ||
| 13 | MEC9407 |
|
Stockton 11 MK2 Complete Single Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | MEC9408 |
|
Stockton 11 Mk2 Airwash Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 15 | M0675CBLT |
|
M6 x 75mm Coach Bolt - Single Bolt | In Stock £1.75 | ||
| 16 | 4949 |
|
10mm x 2mm Self Adhesive Tape Seal - 2m Pack 1245mm Length Required
| In Stock £15.00 | ||
| 17 | MEC9345 |
|
Stockton 11 Mk2 Airwash Control Chamber | This part is now obsolete and can no longer be ordered as a spare. | ||
| 18 | SL26 |
|
Stockton 11 Mk1 Baffle Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 19 | N/A Carcass |
|
Welded Carcass Assembly | This part is not serviceable and cannot be ordered as a spare. | ||

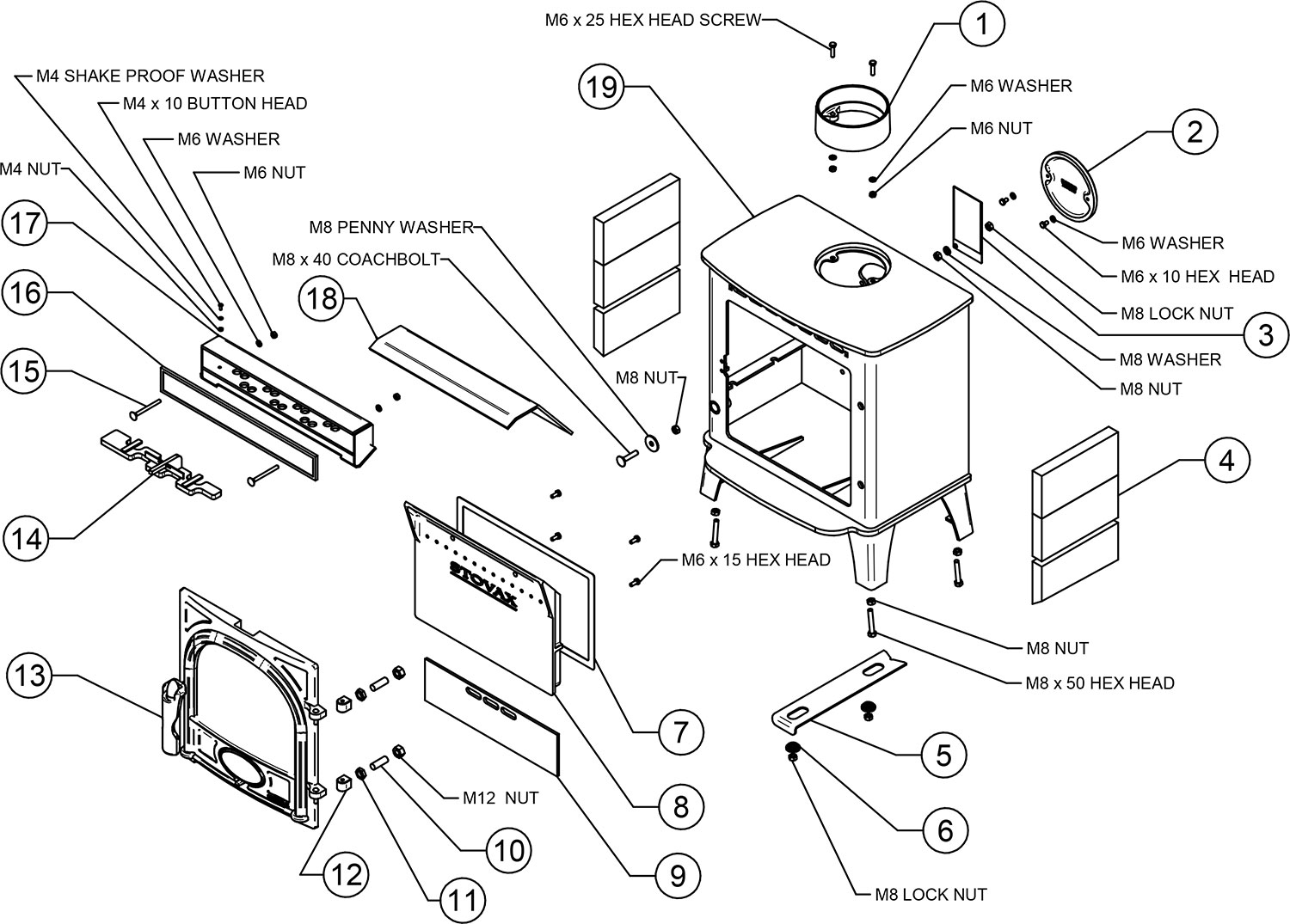

Drawing: PR9397-1
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 5700 |
|
13mm Black Door Rope Seal with Adhesive - 2m Pack 1990mm length required
| In Stock £54.76 | ||
| 2 | CE7012 |
|
Stockton 11 Mk1 Single Door Glass Dimensions: 495x309x4mm
| In Stock £105.00 | ||
| 3 | 4975 |
|
3mm Glass Rope Seal with Adhesive - 2m Pack 1445mm length required
| In Stock £15.10 | ||
| 4 | N/A |
|
For Complete Door Assembly see Main Assembly page
| This part is not currently available. | ||
| 5 | ME600683 |
|
Stockton 8 Mk2/5 Wide Air Control Slider Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | MEC9099 |
|
Stockton 8 Mk2/5 Wide Air Control Slider | This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | SM3 |
|
Stockton 8/11/5 Wide Air Control Cover Plate | This part is now obsolete and can no longer be ordered as a spare. | ||
| 8 | CA7677 |
|
Stockton/Yeoman Mk2 Multifunction Door Tool | In Stock £19.85 | ||
| 9 | YM-F00004 |
|
3mm x 18mm Spiriol Pin - Single Pin | In Stock £0.49 | ||
| 10 | MEC9362 |
|
Stockton 11 Mk2 Large Spindle Assembly Assembly including parts 10, 11, 12, 13 and 14
| In Stock £44.95 | ||
| 11 | FA9017 |
|
Airwash Spinner Spring | In Stock £3.16 | ||
| 12 | ME600844 |
|
Stockton 11 Mk2 Door Spindle | This part is now obsolete and can no longer be ordered as a spare. | ||
| 13 | RVAC111 |  |
M8 Hex Thin Nut - Single Nut | This part is now obsolete and can no longer be ordered as a spare. | ||
| 14 | MEC9020 |
|
Stockton/Yeoman Traditional Mk2 Door Spindle Catch | In Stock £13.96 | ||
| 15 | N/A Assembly |
|
See part 10
| This part cannot be ordered individually and is sold as part of an assembly. | ||
| 16 | SM20 |
|
Stockton Door Hinge Pin | In Stock £1.90 | ||
| 17 | RA502594 |
|
Stockton Mk2 Glass Clip | In Stock £1.50 | ||
Drawing: PR9308-2
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | SMN37 |
|
Stockton 3/4/5/6/7/8/11/CL3/CL5/CL8 Centre Grate | In Stock £29.26 | ||
| 4 | CA7690 |
|
Stockton 11 Log Guard | Available to Order £39.76 | ||
| 5 | RA502997 |
|
Stockton 11 Mk2 Single Door Mid Door Seal Bracket Single door only.
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 6 | ST11D2DDS |  |
Stockton 11 Double Door Mid Door Seal Brackets Double door only.
| This part is now obsolete and can no longer be ordered as a spare. | ||
| 7 | MEC9400 |
|
Stockton 11 Mk2 Ashpan | Available to Order £26.50 | ||
| 8 | ME600650 |
|
Stockton 3/4/5/6/7/8/11 MF Mk2 Riddling Bar | In Stock £34.96 | ||
| 9 | RA502889 |
|
Stockton 11 Mk2 Riddling Bar | Available to Order £23.26 | ||
| 10 | MEC9704 |
|
Stockton 11 Mk2 Main Grate Assembly - 2 Piece | This part is now obsolete and can no longer be ordered as a spare. | ||
Drawing: PR9916
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
ST11W1 ST11W1BL ST11W1BR ST11W1GR
DIMENSIONS:
759 x 678 x 467mm (w x h x d)
ADDITIONAL INFO:
The paint for this appliance is product code 2105. Please note, you can only purchase paint through your local Stovax Retailer.
